Запчасти Komatsu PC400-6C МОТОР ХОДА (/) (ДЛЯ СНГ)(№9-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

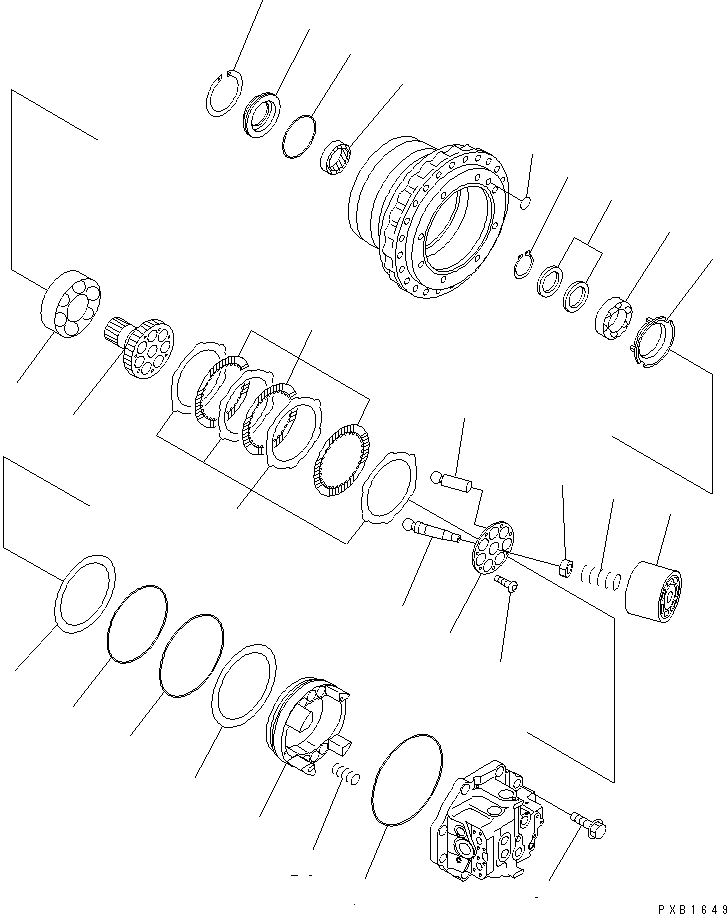

Схема запчастей Komatsu PC400-6C - МОТОР ХОДА (/) (ДЛЯ СНГ)(№9-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

Артикул

Название

Примечание

Количество

|$3

706-88-00161

MOTOR ASS'Y

|$4

706-88-00160

MOTOR ASS'Y

|$5

706-88-00130

MOTOR ASS'Y

1

706-88-40470

O-RING

2

07000-52012

O-RING

3

706-88-40310

BOLT

4

706-88-40660

SHAFT,DRIVE

5

706-88-40870

BEARING

5

706-88-40880

BEARING

6

706-88-40890

BEARING

7

706-88-40810

RETAINER

8

706-88-05010

SPACER KIT

8

SPACER, 1.6MM

8

SPACER, 1.7MM

8

SPACER, 1.8MM

9

04064-07525

RING,SNAP

10

708-8K-12240

SEAL,OIL

11

706-88-40710

HOUSING

12

07000-52135

O-RING

13

04071-00140

RING,SNAP

14

706-88-40090

BLOCK,CYLINDER

15

706-88-40080

SHAFT,CENTER

16

706-88-40130

RING,CENTER

17

706-88-40060

SPRING

|$28

706-88-05020

RETAINER KIT

18

RETAINER

19

SCREW

20

706-88-40162

PISTON SUB ASS'Y

20

706-88-40160

PISTON SUB ASS'Y

21

706-88-90140

PLATE

22

706-88-90150

DISC

23

706-88-90180

PISTON,BRAKE

24

07000-55240

O-RING

25

706-88-90130

RING,BACK-UP

26

07000-55270

O-RING

27

07001-05270

RING,BACK-UP

28

706-88-90410

SPRING

Выбрано товаров: 37
