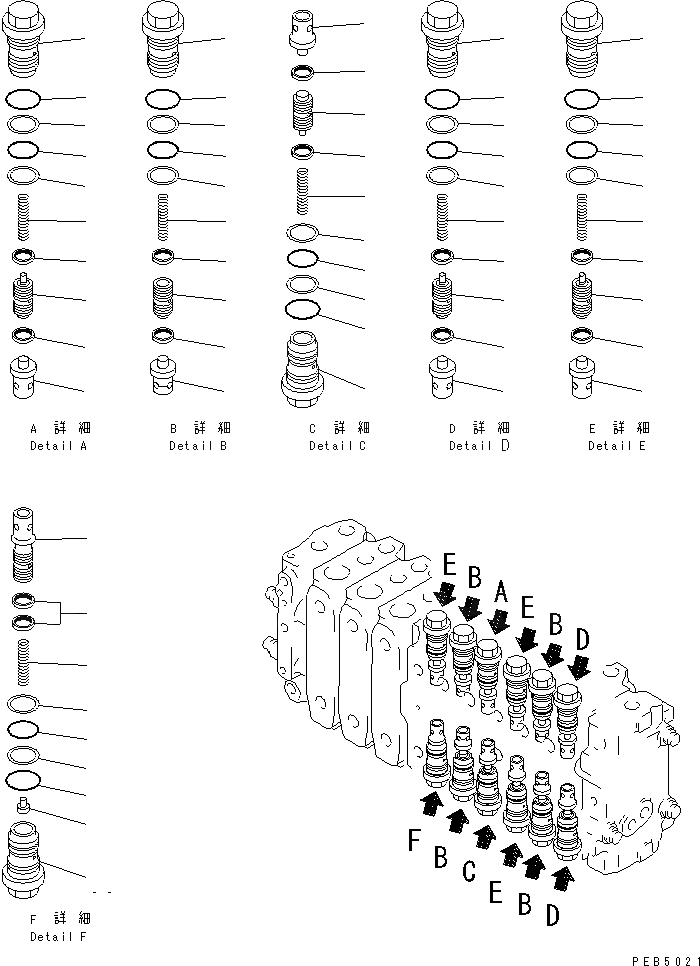

Запчасти Komatsu PC400-6 ОСНОВН. КЛАПАН (-АКТУАТОР) (/7)(№-9) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
№
Артикул
Название
Примечание
Количество
|$4
723-49-19100
CONTROL VALVE
|$5
723-49-17102
CONTROL VALVE
|$6
723-49-17101
CONTROL VALVE
|$7
723-49-17100
CONTROL VALVE
|$9
BODY SUB ASS'Y
|$10
BODY SUB ASS'Y
|$11
BODY SUB ASS'Y
1
723-46-41110
VALVE
2
723-46-41120
VALVE
|$14
723-46-40100
VALVE ASS'Y
3
SLEEVE
4
PISTON SUB ASS'Y
5
SPRING
6
SEAL
7
700-93-11320
O-RING
8
723-46-41950
RING
9
07002-13634
O-RING
|$22
723-46-40300
VALVE ASS'Y
10
SLEEVE
11
PISTON
12
SPRING
13
SEAL
14
700-93-11320
O-RING
15
723-46-41950
RING
16
07002-13634
O-RING
|$30
723-46-40601
VALVE ASS'Y
17
SLEEVE
18
PISTON SUB ASS'Y
19
SPRING
20
SEAL
21
700-93-11320
O-RING
22
723-46-41950
RING
23
07002-13634
O-RING
|$38
723-46-44100
VALVE ASS'Y
24
SLEEVE
25
PISTON SUB ASS'Y
26
SPRING
27
SEAL
28
700-93-11320
O-RING
29
723-46-41950
RING
30
07002-13634
O-RING
|$46
723-46-45100
VALVE ASS'Y
31
SLEEVE
32
PISTON SUB ASS'Y
33
SPRING
34
SEAL
35
700-93-11320
O-RING
36
723-46-41950
RING
37
07002-13634
O-RING
|$54
723-46-45200
VALVE ASS'Y
38
SLEEVE
39
VALVE SUB ASS'Y
40
SPRING
41
SEAL
42
700-93-11320
O-RING
43
723-46-41950
RING
44
07002-13634
O-RING
45
723-46-41980
RETAINER
Выбрано товаров: 58
