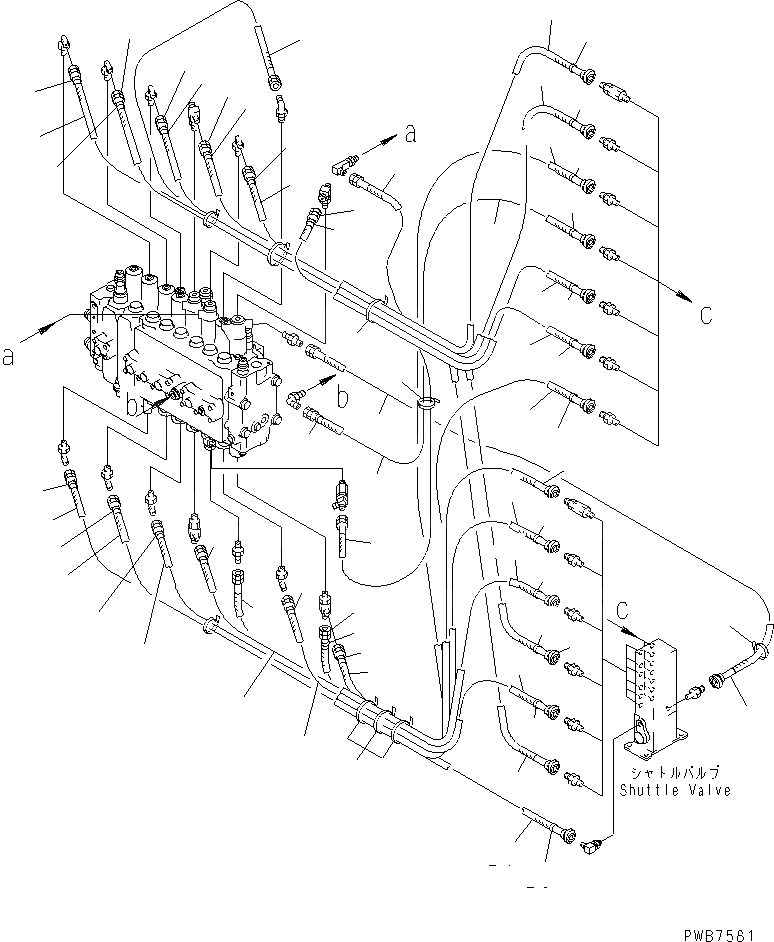

Запчасти Komatsu PC400-6 ОСНОВН. ЛИНИЯ PPC (КЛАПАН ЛИНИИ PPC)(№-) ГИДРАВЛИКА

1

203-62-52260

HOSE, 1300MM

2

203-62-52530

HOSE, 800MM

3

207-62-63421

HOSE, 920MM

4

207-62-63630

HOSE, 470MM

5

20Y-62-22661

HOSE, 470MM

6

20Y-62-22671

HOSE, 355MM

7

20Y-62-22681

HOSE, 520MM

8

20Y-62-22691

HOSE, 315MM

9

20Y-62-22721

HOSE, 535MM

10

20Y-62-22790

BAND, RED

11

20Y-62-22810

BAND, YELLOW

12

20Y-62-22820

BAND, BLUE

13

20Y-62-22830

BAND, WHITE

14

20Y-62-22840

BAND, BLACK

15

20Y-62-22850

BAND, GREEN

16

20Y-62-22860

BAND, BROWN

17

08034-00536

BAND

18

207-62-63640

HOSE, 620MM

19

20Y-62-22721

HOSE, 535MM

20

20Y-62-22741

HOSE, 675MM

21

20Y-62-22761

HOSE, 840MM

22

20Y-62-23861

HOSE, 1050MM

23

20Y-62-22781

HOSE, 650MM

24

20Y-62-23831

HOSE, 800MM

25

20Y-62-22840

BAND, BLACK

26

20Y-62-22790

BAND, RED

27

20Y-62-22820

BAND, BLUE

28

20Y-62-22830

BAND, WHITE

29

20Y-62-22850

BAND, GREEN

30

20Y-62-22860

BAND, BROWN

31

08034-00536

BAND

32

20Y-62-22681

HOSE, 520MM

33

08034-00536

BAND
