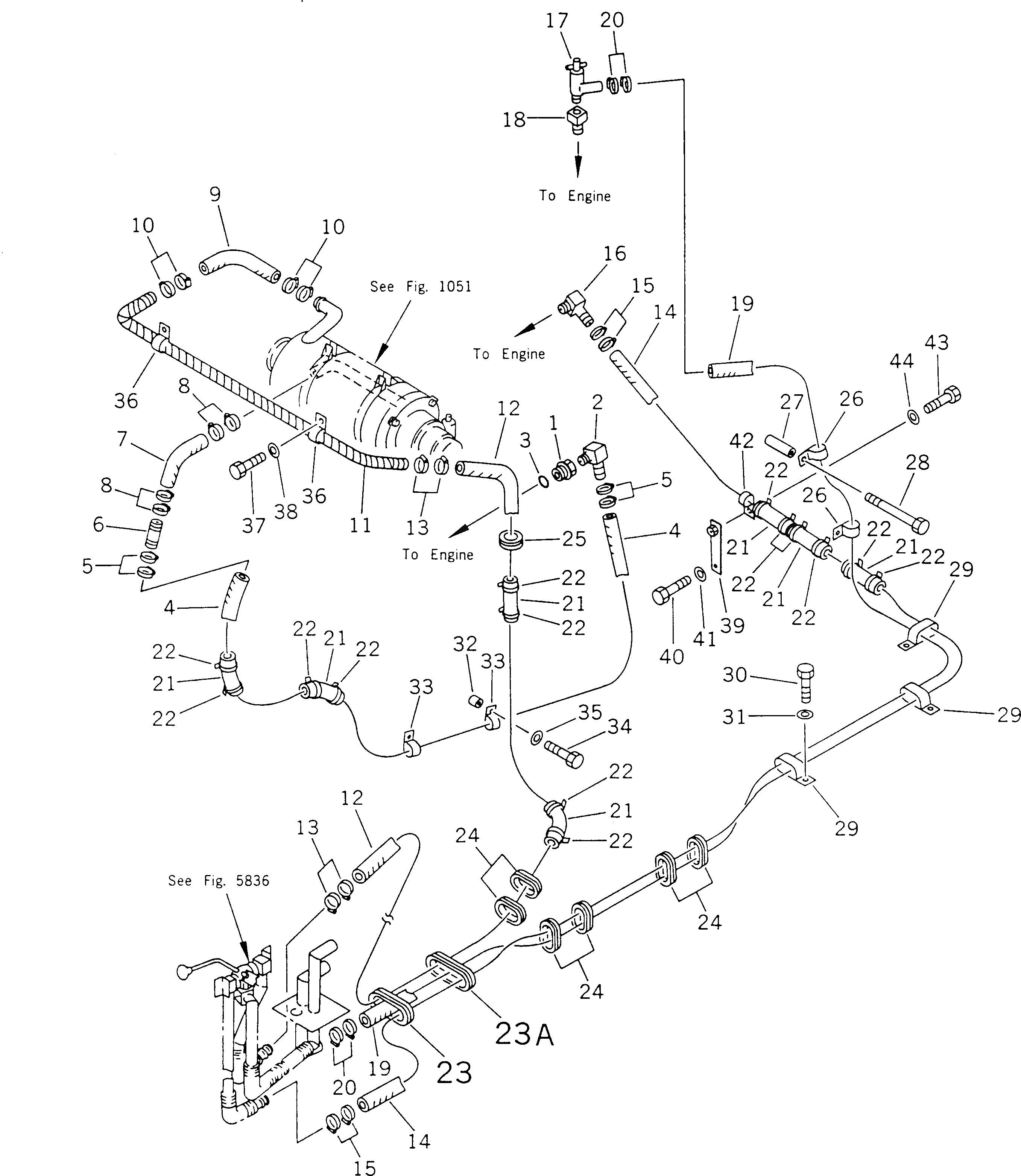

Запчасти Komatsu PC400-5D ОБОГРЕВАТЕЛЬ. ТРУБЫ (/)(№-8) ЧАСТИ КОРПУСА

1

208-977-5290

NIPPLE

2

208-977-5160

ELBOW

3

6151-21-1190

O-RING

4

07261-33225

HOSE

5

07281-00489

CLAMP

6

208-977-5350

TUBE

7

206-979-4580

HOSE

8

07281-00489

CLAMP

9

205-979-6931

HOSE

10

07281-00489

CLAMP

11

208-977-5150

TUBE

12

07261-33224

HOSE

13

07281-00489

CLAMP

14

07261-33244

HOSE

15

07281-00489

CLAMP

16

208-977-5160

ELBOW

17

208-977-5170

VALVE ASS'Y

18

208-987-3730

NIPPLE

19

07261-33237

HOSE

20

07281-00489

CLAMP

21

20D-62-12620

TUBE

22

08034-00536

BAND

23

208-977-5260

GROMMET

23A

208-977-5370

GROMMET

24

208-43-51250

GROMMET

25

08037-05016

GROMMET

26

23T-62-12160

CLIP

27

195-01-16260

COLLAR

28

01011-51020

BOLT

29

208-987-3710

CLIP

30

01010-51225

BOLT

31

01643-31232

WASHER

32

21T-72-23290

SPACER

33

23T-62-12160

CLIP

34

01010-51255

BOLT

35

01643-31232

WASHER

36

113-899-7950

CLIP

37

01010-51025

BOLT

38

01643-31032

WASHER

39

207-977-5120

BRACKET

40

01010-51230

BOLT

41

01643-31232

WASHER

42

23T-62-12160

CLIP

43

01010-51230

BOLT

44

01643-31232

WASHER
