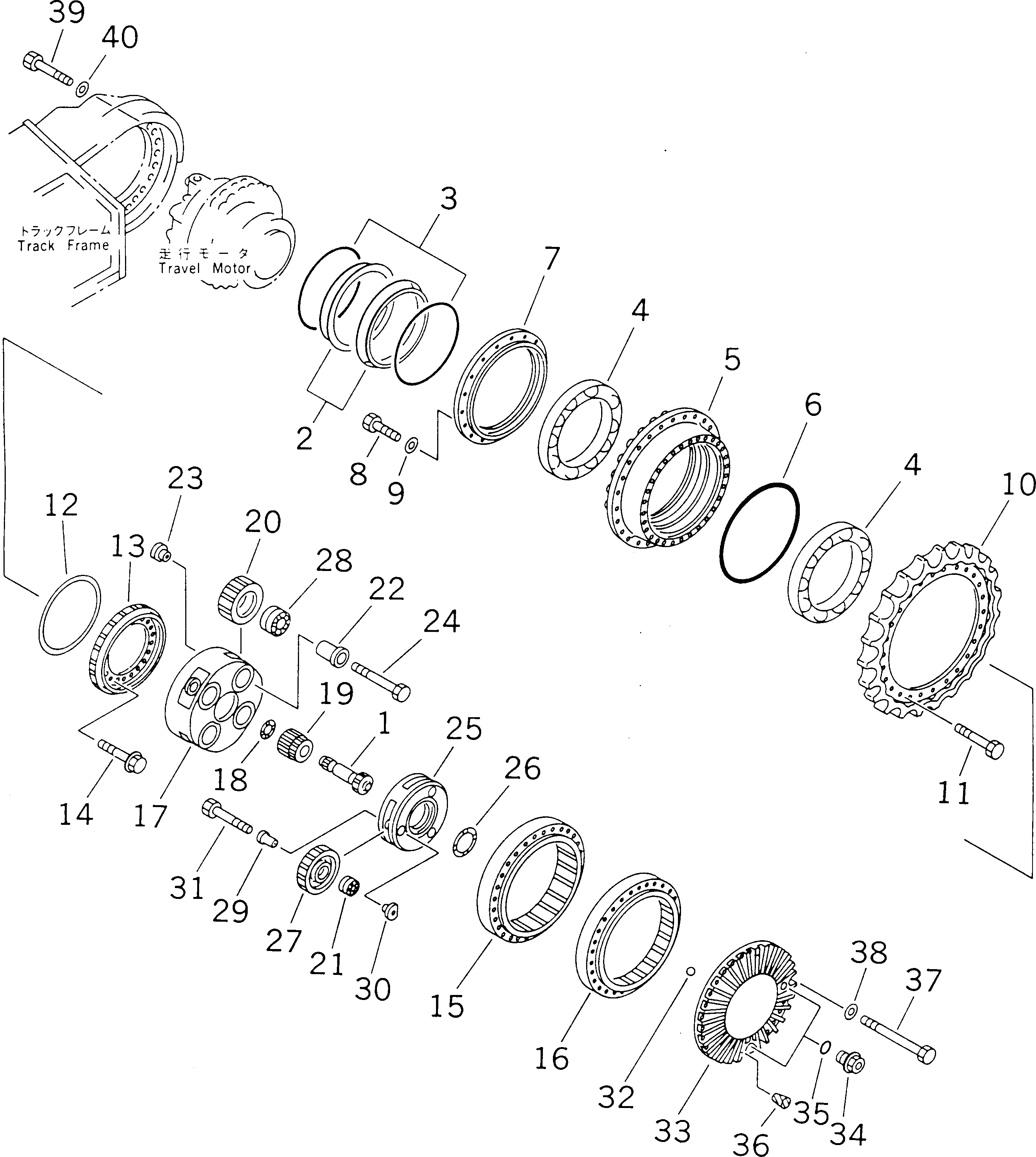

Запчасти Komatsu PC400-5D КОНЕЧНАЯ ПЕРЕДАЧА И ЗВЕЗДОЧКА ХОД И ХОДОВАЯ

|$0

208-27-00122

FINAL DRIVE ASS'Y

|$1

208-27-00121

FINAL DRIVE ASS'Y

|$2

208-27-00120

FINAL DRIVE ASS'Y

1

208-27-52110

SHAFT

|$5

17M-27-00121

FLOATING SEAL ASS'Y

|$6

17M-27-00120

FLOATING SEAL ASS'Y

2

RING,SEAL

2

RING,SEAL

3

O-RING

4

208-27-51240

BEARING,BALL

5

208-27-52160

HUB

6

208-27-52360

O-RING

7

208-27-51211

COVER

8

01010-51240

BOLT

9

01643-31232

WASHER

10

208-27-31221

SPROCKET

11

207-27-51310

BOLT

12

208-27-00110

SPACER ASS'Y

12

SPACER, 3.25MM

12

SPACER, 3.30MM

12

SPACER, 3.35MM

12

SPACER, 3.40MM

12

SPACER, 3.45MM

12

SPACER, 3.50MM

12

SPACER, 3.55MM

13

208-27-52170

RETAINER

14

208-27-52311

BOLT

14

208-27-52310

BOLT

15

208-27-52150

GEAR

16

208-27-52281

GEAR

17

208-27-52181

CARRIER

18

207-27-52270

SPACER

19

208-27-52130

GEAR

20

208-27-52140

GEAR

21

208-27-52220

BEARING,ROLLER

22

208-27-52250

PIN

23

208-27-52271

HOLDER

24

01011-52210

BOLT

25

208-27-52190

CARRIER

26

20Y-27-11250

SPACER

27

208-27-52120

GEAR

28

208-27-52230

BEARING,ROLLER

29

208-27-52240

PIN

30

208-27-52260

HOLDER

31

01010-51265

BOLT

32

04260-01905

BALL

33

208-27-52210

COVER

34

07044-12412

PLUG

35

07002-42434

O-RING

36

07049-01215

PLUG

37

208-27-52341

BOLT

37

208-27-52340

BOLT

38

01643-31845

WASHER

39

01011-52000

BOLT

40

01643-32060

WASHER
