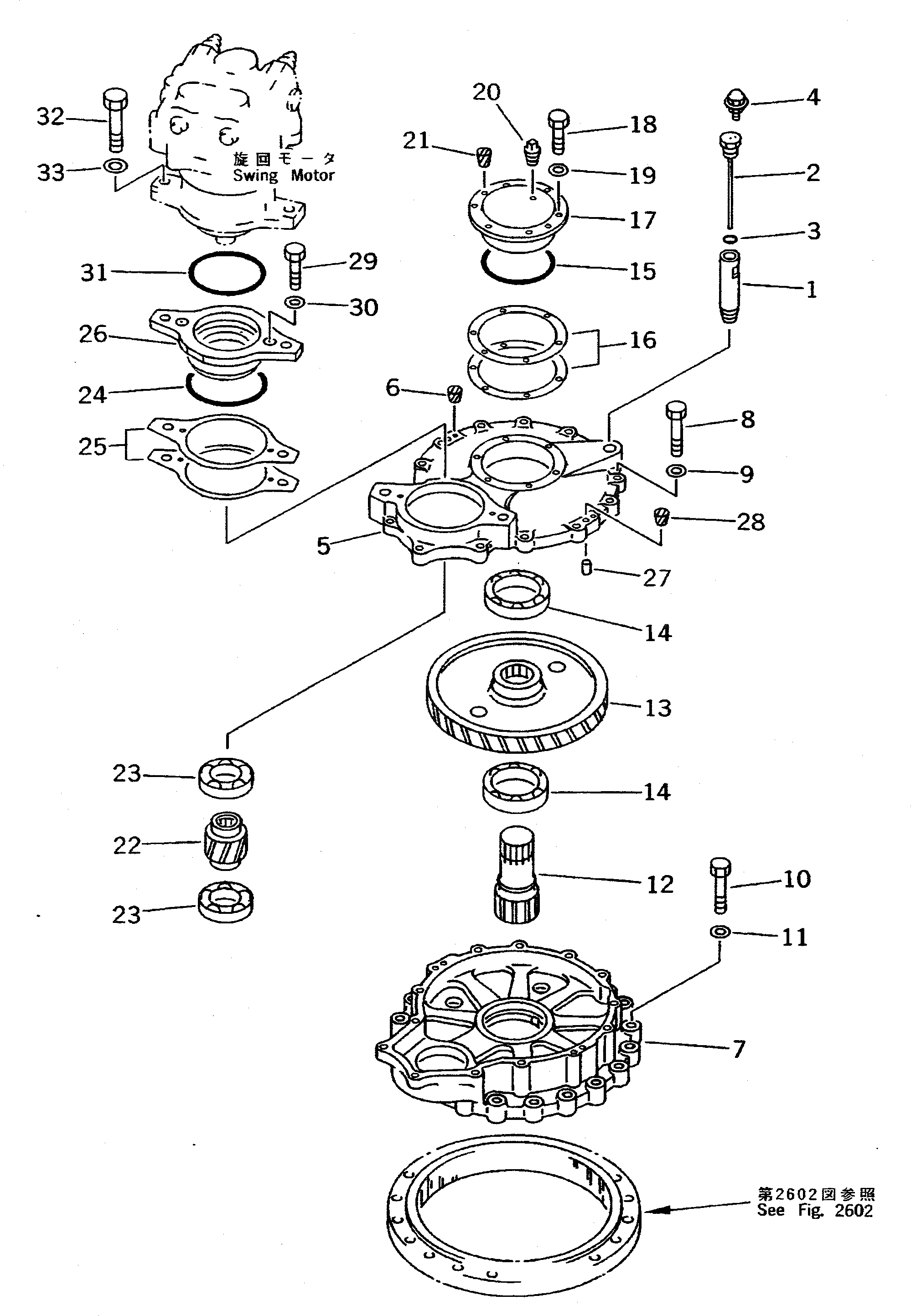

Запчасти Komatsu PC400-5D МЕХАНИЗМ ПОВОРОТА (/) ПОВОРОТН.

1

207-26-54270

FILLER

2

207-26-54431

GAUGE

3

07000-43025

O-RING

4

205-26-71680

BREATHER

|$4

208-26-00130

SWING MACHINERY A.

5

208-26-52111

COVER

6

07049-01620

PLUG

7

208-26-52122

COVER

8

01010-51660

BOLT

9

01643-31645

WASHER

10

01011-51615

BOLT

11

01643-31645

WASHER

12

208-26-52280

GEAR

13

208-26-52152

GEAR

14

06002-32922

BEARING,ROLLER

15

07000-45165

O-RING

16

208-26-00120

SHIM ASS'Y

16

SHIM, 0.4MM

16

SHIM, 0.5MM

16

SHIM, 0.6MM

16

SHIM, 0.7MM

16

SHIM, 0.8MM

17

208-26-52310

CAGE

18

01010-51035

BOLT

19

01643-31032

WASHER

20

07042-30108

PLUG

21

07049-01012

PLUG

22

208-26-52430

GEAR

23

06002-30213

BEARING,ROLLER

24

07000-45175

O-RING

25

207-26-00110

SHIM ASS'Y

25

SHIM, 0.4MM

25

SHIM, 0.5MM

25

SHIM, 0.6MM

25

SHIM, 0.7MM

25

SHIM, 0.8MM

26

208-26-52320

CAGE

27

04020-01228

PIN,DOWEL

28

07049-01822

PLUG

29

01010-51035

BOLT

30

01643-31032

WASHER

31

07000-45150

O-RING

32

01010-52495

BOLT

33

01643-32460

WASHER
