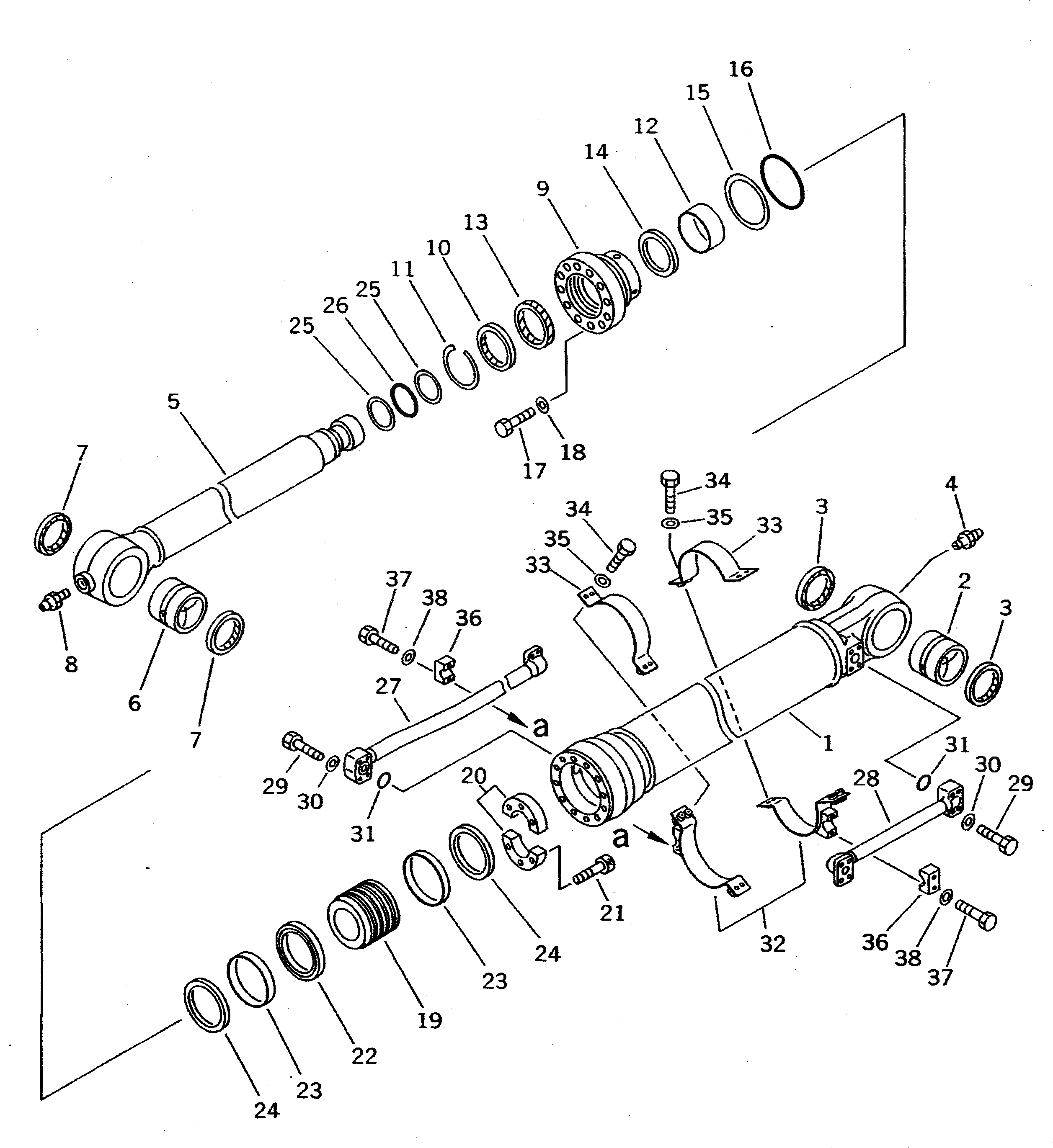

Запчасти Komatsu PC400-5D ЦИЛИНДР КОВША РАБОЧЕЕ ОБОРУДОВАНИЕ (ЭКСКАВАТ.)
№
Артикул
Название
Примечание
Количество
G-1
208-63-X8130
BUCKET CYLINDER G.
|$2
208-63-08130
BUCKET CYLINDER A.
1
208-63-73140
CYLINDER
2
707-76-10130
BUSHING
3
07145-10100
SEAL,DUST (KIT)
4
07020-00000
FITTING,GREASE
5
208-63-73120
ROD
6
707-76-10140
BUSHING
7
208-70-12231
SEAL,DUST (KIT)
8
07020-00000
FITTING,GREASE
9
707-27-16620
HEAD
10
198-63-94170
SEAL,DUST (KIT)
11
07179-13126
RING,SNAP
12
707-52-90860
BUSHING
13
707-51-11030
PACKING,ROD
14
707-51-11630
RING,BUFFER (KIT)
15
07001-05155
RING,BACK-UP (KIT)
16
07000-55155
O-RING (KIT)
17
01010-82085
BOLT (KIT)
18
707-88-75310
WASHER
19
707-36-16320
PISTON
20
707-40-16870
SPACER
21
01252-31450
BOLT
22
707-44-16180
RING,PISTON (KIT)
23
707-39-16820
RING,WEAR (KIT)
24
707-44-16910
RING
25
707-35-52930
RING,BACK-UP (KIT)
26
07000-52090
O-RING (KIT)
27
208-63-73170
TUBE
28
208-63-73180
TUBE
29
01010-51060
BOLT
30
01643-51032
WASHER
31
07000-53035
O-RING (KIT)
32
707-88-87130
BRACKET
33
707-88-87140
BAND
34
01010-51240
BOLT
35
01643-51232
WASHER
36
707-88-10150
CLAMP
37
01010-51245
BOLT
38
01643-31232
WASHER
K
707-99-67015
SERVICE KIT,BUCKET CYLINDER
3
07145-10100
SEAL,DUST
7
208-70-12231
SEAL,DUST
10
198-63-94170
SEAL,DUST
13
707-51-11030
PACKING,ROD
14
707-51-11630
RING,BUFFER
15
07001-05155
RING,BACK-UP
16
07000-55155
O-RING
22
707-44-16180
RING,PISTON
23
707-39-16820
RING,WEAR
25
707-35-52930
RING,BACK-UP
26
07000-52090
O-RING
31
07000-53035
O-RING
Выбрано товаров: 53
