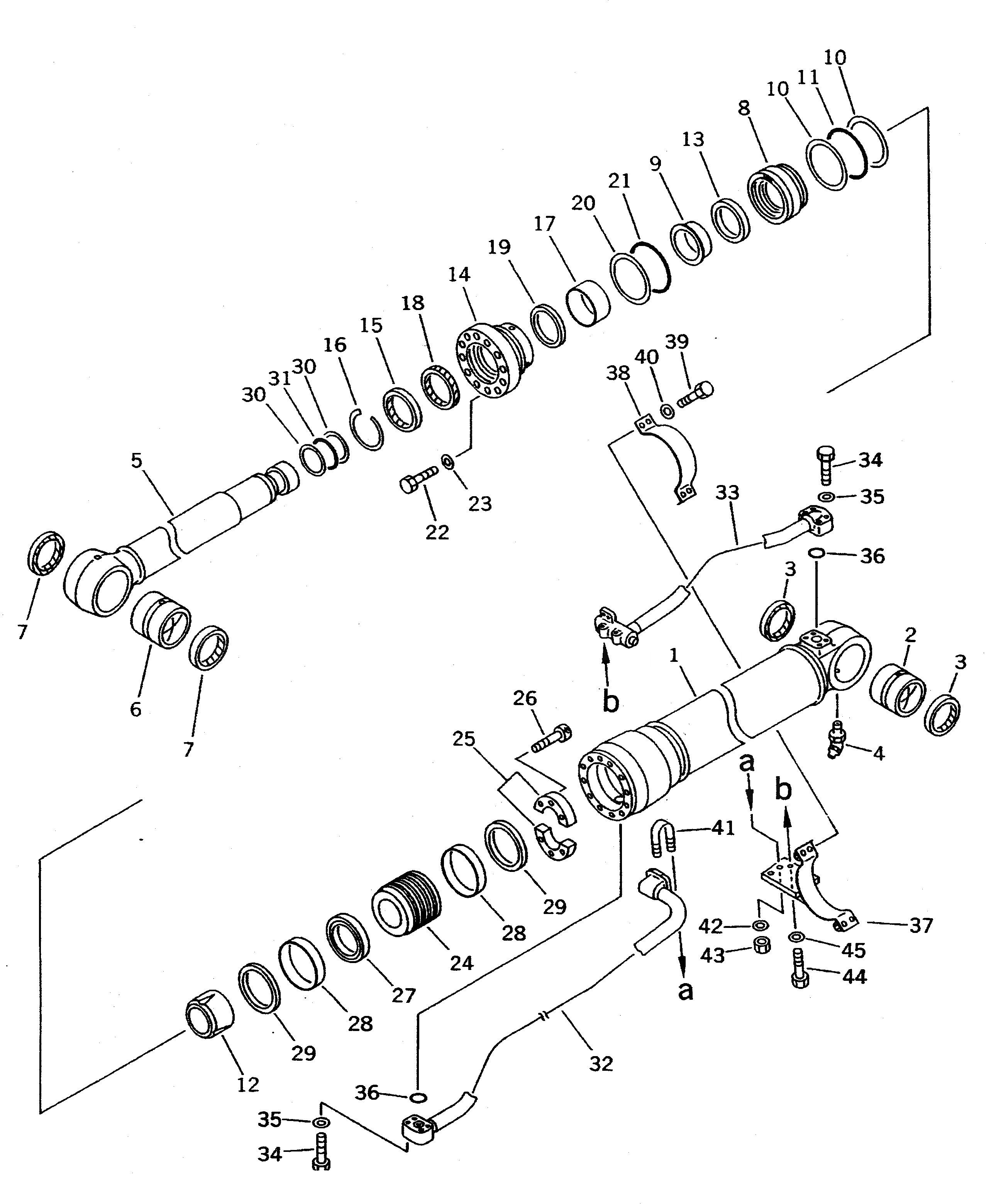

Запчасти Komatsu PC400-5D ЦИЛИНДР СТРЕЛЫ РАБОЧЕЕ ОБОРУДОВАНИЕ (ЭКСКАВАТ.)

G-1

208-63-X8100

BOOM CYLINDER GROUP,L.H.

G-1

208-63-X8110

BOOM CYLINDER GROUP,R.H.

|$3

208-63-08100

BOOM CYLINDER ASS'Y

1

208-63-53140

CYLINDER

2

707-76-10160

BUSHING

3

07145-10100

SEAL,DUST (KIT)

4

07020-00675

FITTING,GREASE

5

208-63-53120

ROD

6

707-76-11130

BUSHING

7

07145-10110

SEAL,DUST (KIT)

8

707-71-31201

COLLAR

9

707-71-31181

COLLAR

10

07001-05155

RING,BACK-UP (KIT)

11

07000-55155

O-RING (KIT)

12

707-71-61100

PLUNGER

13

707-71-11150

RING

14

707-27-16620

HEAD

15

198-63-94170

SEAL,DUST (KIT)

16

07179-13126

RING,SNAP

17

707-52-90860

BUSHING

18

707-51-11030

PACKING,ROD (KIT)

19

707-51-11630

RING,BUFFER (KIT)

20

07001-05155

RING,BACK-UP (KIT)

21

07000-55155

O-RING (KIT)

22

01010-82085

BOLT

23

707-88-75310

WASHER

24

707-36-16320

PISTON

25

707-40-16870

SPACER

26

01252-31450

BOLT

27

707-44-16180

RING,PISTON (KIT)

28

707-39-16820

RING,WEAR (KIT)

29

707-44-16910

RING

30

707-35-52930

RING,BACK-UP (KIT)

31

07000-52090

O-RING (KIT)

32

208-63-53171

TUBE,L.H.

32

208-63-53271

TUBE,R.H.

33

208-63-53181

TUBE,L.H.

33

208-63-53281

TUBE,R.H.

34

01010-51060

BOLT

35

01643-51032

WASHER

36

07000-53035

O-RING (KIT)

37

707-88-87110

BRACKET,L.H.

37

707-88-87120

BRACKET,R.H.

38

707-88-95770

BAND

39

01010-51240

BOLT

40

01643-51232

WASHER

41

07283-23442

CLIP

42

01643-31032

WASHER

43

01599-01011

NUT

44

01010-51025

BOLT

45

01643-31032

WASHER

K

707-99-67125

SERVICE KIT,BOOM CYLINDER

3

07145-10100

SEAL,DUST

7

07145-10110

SEAL,DUST

10

07001-05155

RING,BACK-UP

11

07000-55155

O-RING

15

198-63-94170

SEAL,DUST

18

707-51-11030

PACKING,ROD

19

707-51-11630

RING,BUFFER

20

07001-05155

RING,BACK-UP

21

07000-55155

O-RING

27

707-44-16180

RING,PISTON

28

707-39-16820

RING,WEAR

30

707-35-52930

RING,BACK-UP

31

07000-52090

O-RING

36

07000-53035

O-RING
