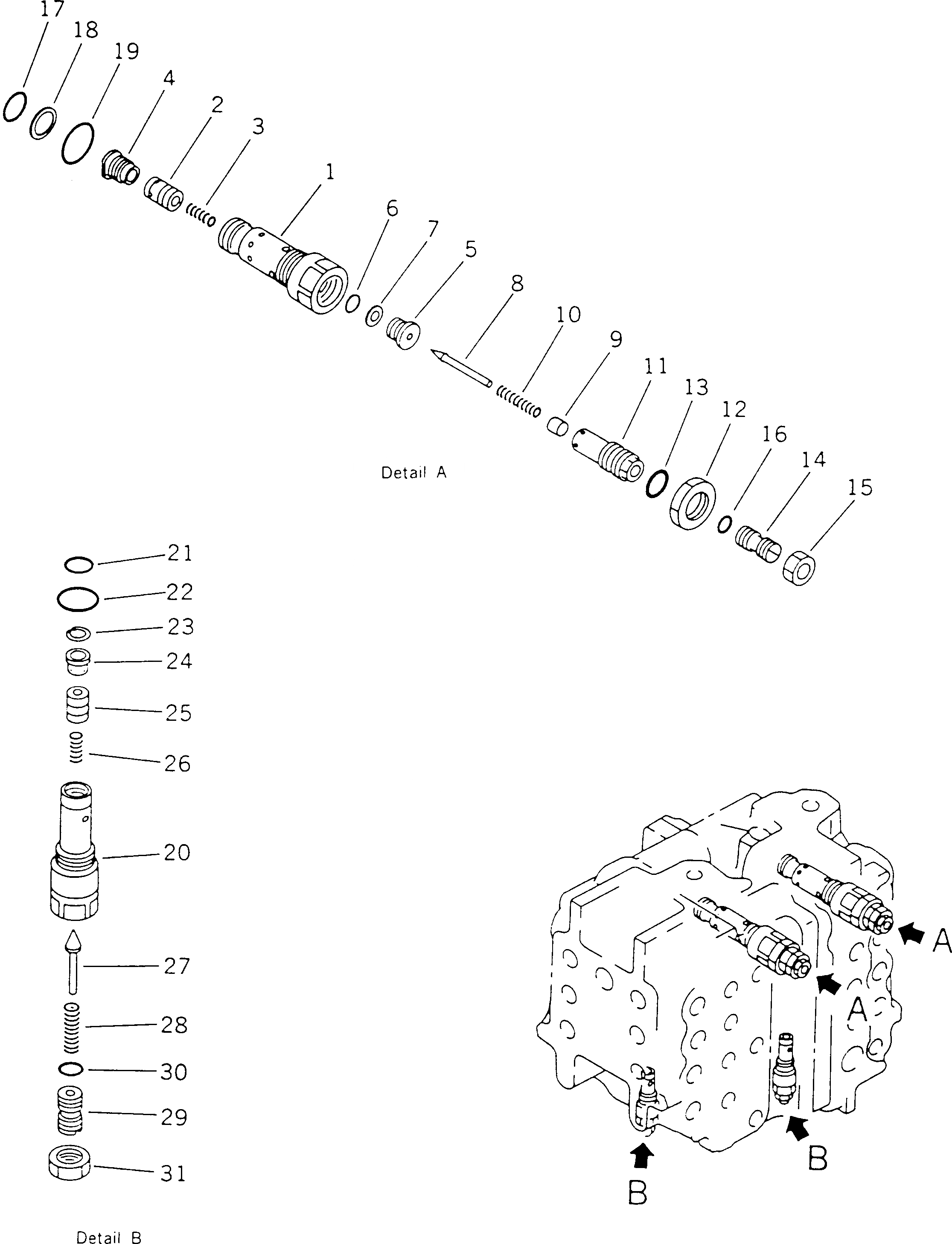

Запчасти Komatsu PC400-5D УПРАВЛЯЮЩ. КЛАПАН (/7) (ДЛЯ ЭКСКАВАТ.) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

709-99-14501

CONTROL VALVE ASS'Y

|$1

709-99-14500

CONTROL VALVE ASS'Y

|$3

709-90-52900

RELIEF VALVE ASS'Y

1

SLEEVE

2

VALVE

3

700-90-51320

SPRING

4

PLUG

5

709-90-51160

SEAT

6

07000-52016

O-RING

7

07001-02016

RING,BACK-UP

8

700-80-61190

POPPET

9

709-90-51260

RETAINER

10

709-20-51231

SPRING

11

709-90-51140

HOLDER

12

700-90-51190

NUT

13

07002-43034

O-RING

14

709-90-51150

SCREW

15

709-90-51170

NUT

16

07000-42011

O-RING

17

700-93-11650

O-RING

18

700-93-11330

RING,BACK-UP

19

07002-43634

O-RING

|$23

709-90-59500

VALVE ASS'Y

20

SLEEVE

21

700-22-12370

O-RING

22

07002-42434

O-RING

23

700-20-51550

RING,SNAP

24

700-20-51540

RETAINER

25

VALVE

26

709-70-51210

SPRING

27

709-70-51420

POPPET

28

700-20-51620

SPRING

29

700-20-51340

SCREW

30

07000-42011

O-RING

31

01582-11411

NUT
