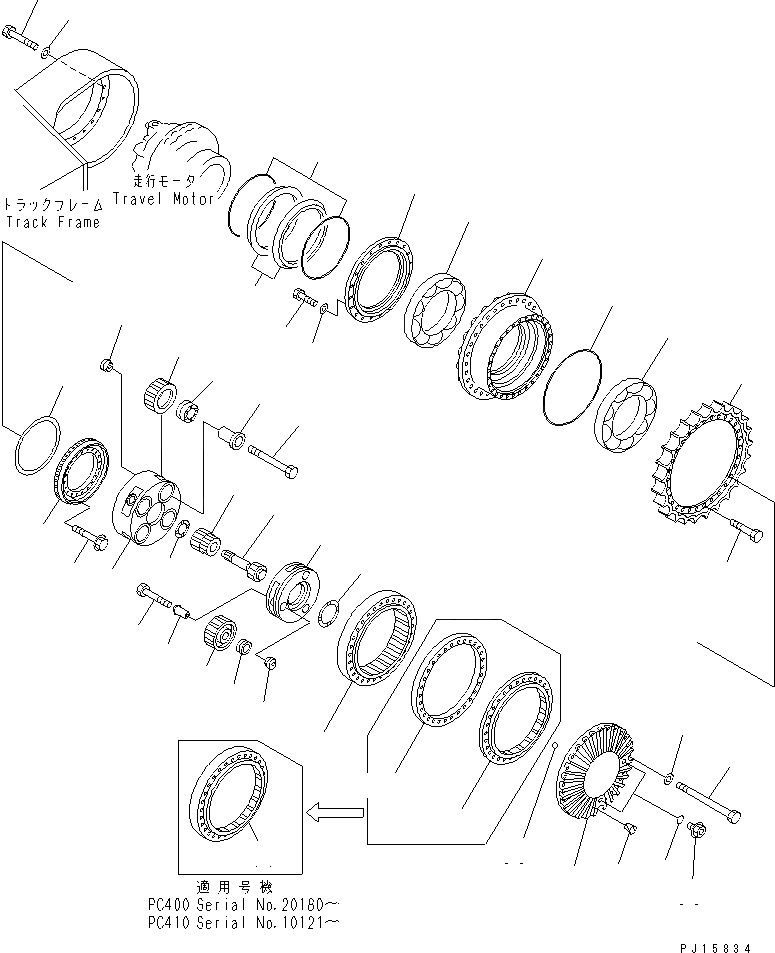

Запчасти Komatsu PC400-5C КОНЕЧНАЯ ПЕРЕДАЧА И ЗВЕЗДОЧКА ХОДОВАЯ

|$0

208-27-00104

FINAL DRIVE ASS'Y

|$1

208-27-00103

FINAL DRIVE ASS'Y

|$2

208-27-00102

FINAL DRIVE ASS'Y

|$3

208-27-00101

FINAL DRIVE ASS'Y

|$4

208-27-00100

FINAL DRIVE ASS'Y

1

208-27-52110

SHAFT

|$7

17M-27-00102

FLOATING SEAL ASS'Y

|$8

17M-27-00101

FLOATING SEAL ASS'Y

|$9

17M-27-00100

FLOATING SEAL ASS'Y

2

RING,SEAL

2

RING,SEAL

3

O-RING

3

O-RING

4

208-27-51240

BEARING,BALL

5

208-27-52160

HUB

6

208-27-52350

O-RING

7

208-27-51211

COVER

8

01010-51240

BOLT

9

01643-31232

WASHER

10

208-27-31221

SPROCKET

11

207-27-51310

BOLT

12

208-27-00110

SPACER ASS'Y

12

SPACER, 3.25MM

12

SPACER, 3.30MM

12

SPACER, 3.35MM

12

SPACER, 3.40MM

12

SPACER, 3.45MM

12

SPACER, 3.50MM

12

SPACER, 3.55MM

13

208-27-52170

RETAINER

14

208-27-52311

BOLT

14

208-27-52310

BOLT

15

208-27-52150

GEAR

16

208-27-52290

SPACER

17

208-27-52281

GEAR

17

208-27-52280

GEAR

18

208-27-52181

CARRIER

18

208-27-52180

CARRIER

19

207-27-52270

SPACER

20

208-27-52130

GEAR

21

208-27-52140

GEAR

22

208-27-52220

BEARING,ROLLER

23

208-27-52250

PIN

24

208-27-52271

HOLDER

25

01011-52210

BOLT

26

208-27-52190

CARRIER

27

20Y-27-11250

SPACER

27

205-27-71570

SPACER

28

208-27-52120

GEAR

29

208-27-52230

BEARING,ROLLER

30

208-27-52240

PIN

31

208-27-52260

HOLDER

32

01010-51265

BOLT

33

04260-01905

BALL

34

208-27-52210

COVER

35

07044-12412

PLUG

36

07002-02434

O-RING

37

07049-01215

PLUG

38

208-27-52341

BOLT

38

208-27-52340

BOLT

39

01643-31845

WASHER

40

01011-52000

BOLT

41

01643-32060

WASHER
