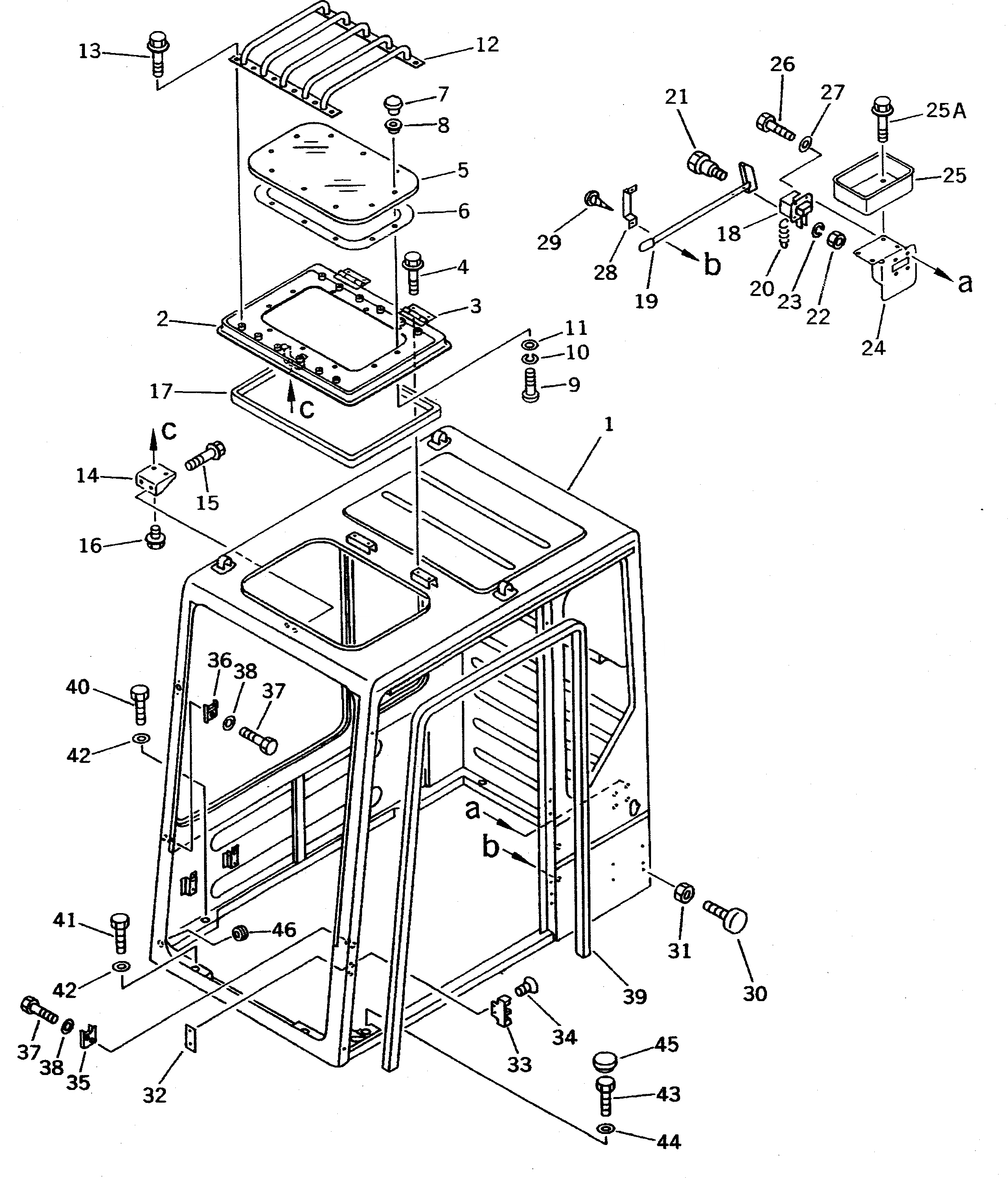

Запчасти Komatsu PC400-5 КАБИНА (/7) (КАБИНА) (ДЛЯ SWEDEN И NORWAY) ЧАСТИ КОРПУСА

G-1

207-54-X1680

OPERATOR'S CAB GROUP

|$2

207-54-00112

OPERATOR'S CAB ASS'Y

|$3

207-54-00111

OPERATOR'S CAB ASS'Y

|$4

207-54-00110

OPERATOR'S CAB ASS'Y

1

CAB

1

CAB

2

20Y-54-22120

COVER

3

20Y-54-11282

HINGE

4

01435-00616

BOLT

5

20Y-54-22130

GLASS

6

20Y-54-22140

SEAL,RUBBER

7

205-54-51720

RETAINER

8

205-54-51730

PACKING

9

01220-40610

SCREW

10

01602-20619

WASHER,SPRING

11

01640-20610

WASHER

12

20Y-54-22110

COVER

13

01435-00616

BOLT

14

205-54-77381

BRACKET

15

01435-00616

BOLT

16

20Y-54-14380

BOLT

17

20Y-54-14630

SEAL

|$24

20Y-54-11890

LOCK ASS'Y

18

20Y-54-13530

LOCK

19

20Y-54-13540

LEVER

20

20Y-54-13550

SPRING

21

20Y-54-13560

PIN

22

01580-10605

NUT

23

01602-20619

WASHER,SPRING

24

20Y-54-14910

PLATE

25

120-Y79-5930

CASE

25A

01435-00616

BOLT

26

01010-50825

BOLT

27

01643-30823

WASHER

28

20Y-54-11490

BRACKET

29

01370-00412

SCREW

30

20Y-54-11611

STOPPER

31

01580-11008

NUT

32

20Y-54-11750

SEAT

33

205-54-71731

STRIKER

34

20Y-54-11740

SCREW

35

20Y-54-14480

BRACKET,L.H.

36

20Y-54-14490

BRACKET,R.H.

37

01010-50825

BOLT

38

01643-30823

WASHER

39

205-54-71560

TRIM

40

01010-51255

BOLT

41

01010-51270

BOLT

42

01643-31232

WASHER

43

01010-51225

BOLT

44

01643-31232

WASHER

45

20Y-54-13480

PLUG

46

20Y-54-18980

GROMMET
