Запчасти Komatsu PC400-5 КОМПЛЕКТ (ДЛЯ ПОГРУЗ.)(№-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

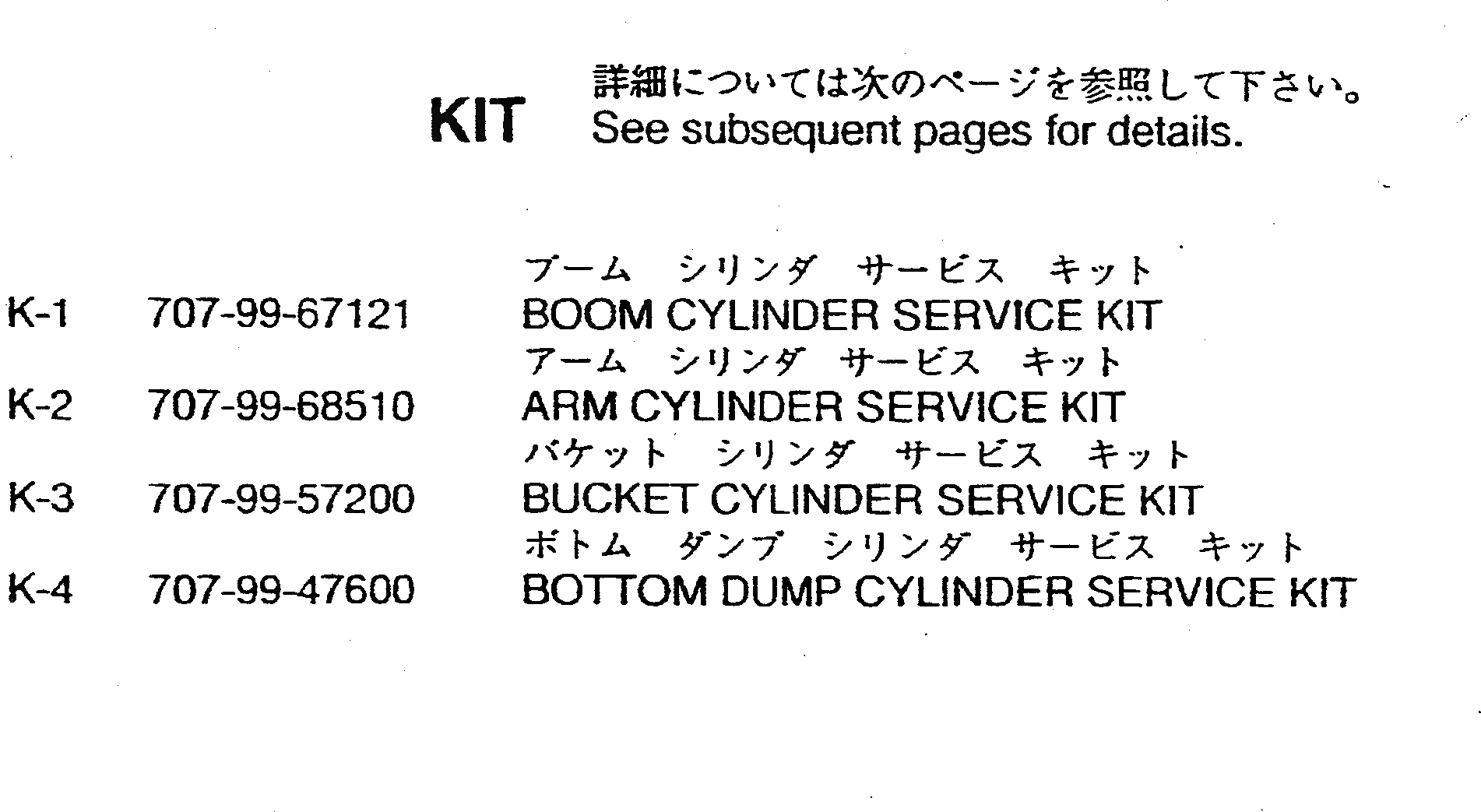

Схема запчастей Komatsu PC400-5 - КОМПЛЕКТ (ДЛЯ ПОГРУЗ.)(№-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

Артикул

Название

Примечание

Количество

1

707-99-67121

SERVICE KIT,BOOM CYLINDER

|1

198-63-94170

SEAL,DUST

|1

707-51-11030

PACKING,ROD

|1

707-51-11630

RING,BUFFER

|1

07001-05155

RING,BACK-UP

|1

07000-15155

O-RING

|1

707-44-16180

RING,PISTON

|1

707-39-16820

RING,WEAR

|1

707-35-52930

RING,BACK-UP

|1

07000-12090

O-RING

|1

07145-00100

SEAL,DUST

|1

07000-13035

O-RING

2

707-99-68510

SERVICE KIT,ARM CYLINDER

|2

195-63-93170

SEAL,DUST

|2

707-51-12030

PACKING,ROD

|2

707-51-12630

RING,BUFFER

|2

07001-05180

RING,BACK-UP

|2

07000-15180

O-RING

|2

707-44-18280

RING,PISTON

|2

707-39-18830

RING,WEAR

|2

707-35-52940

RING,BACK-UP

|2

07000-12100

O-RING

|2

07145-00110

SEAL,DUST

|2

07000-13035

O-RING

3

707-99-57200

SERVICE KIT,BUCKET CYLINDER

|3

707-56-95510

SEAL,DUST

|3

707-51-95030

PACKING,ROD

|3

707-51-95630

RING,BUFFER

|3

07001-05130

RING,BACK-UP

|3

07000-15130

O-RING

|3

707-44-13280

RING,PISTON

|3

707-39-13510

RING,WEAR

|3

07001-02075

RING,BACK-UP

|3

07000-12075

O-RING

|3

07145-00100

SEAL,DUST

|3

07145-00080

SEAL,DUST

|3

07000-13035

O-RING

|3

07000-13030

O-RING

4

707-99-47600

SERVICE KIT,BOTTOM DUMP CYLINDER

|4

07145-00080

SEAL,DUST

|4

195-63-94170

SEAL,DUST

|4

707-51-90030

PACKING,ROD

|4

707-51-90630

RING,BUFFER

|4

07000-15125

O-RING

|4

07001-05125

RING,BACK-UP

|4

07145-00080

SEAL,DUST

|4

707-44-13180

RING,PISTON

|4

707-39-13110

RING,WEAR

|4

707-44-13911

RING

|4

07000-12070

O-RING

|4

707-35-52910

RING,BACK-UP

|4

07000-13030

O-RING

Выбрано товаров: 52
