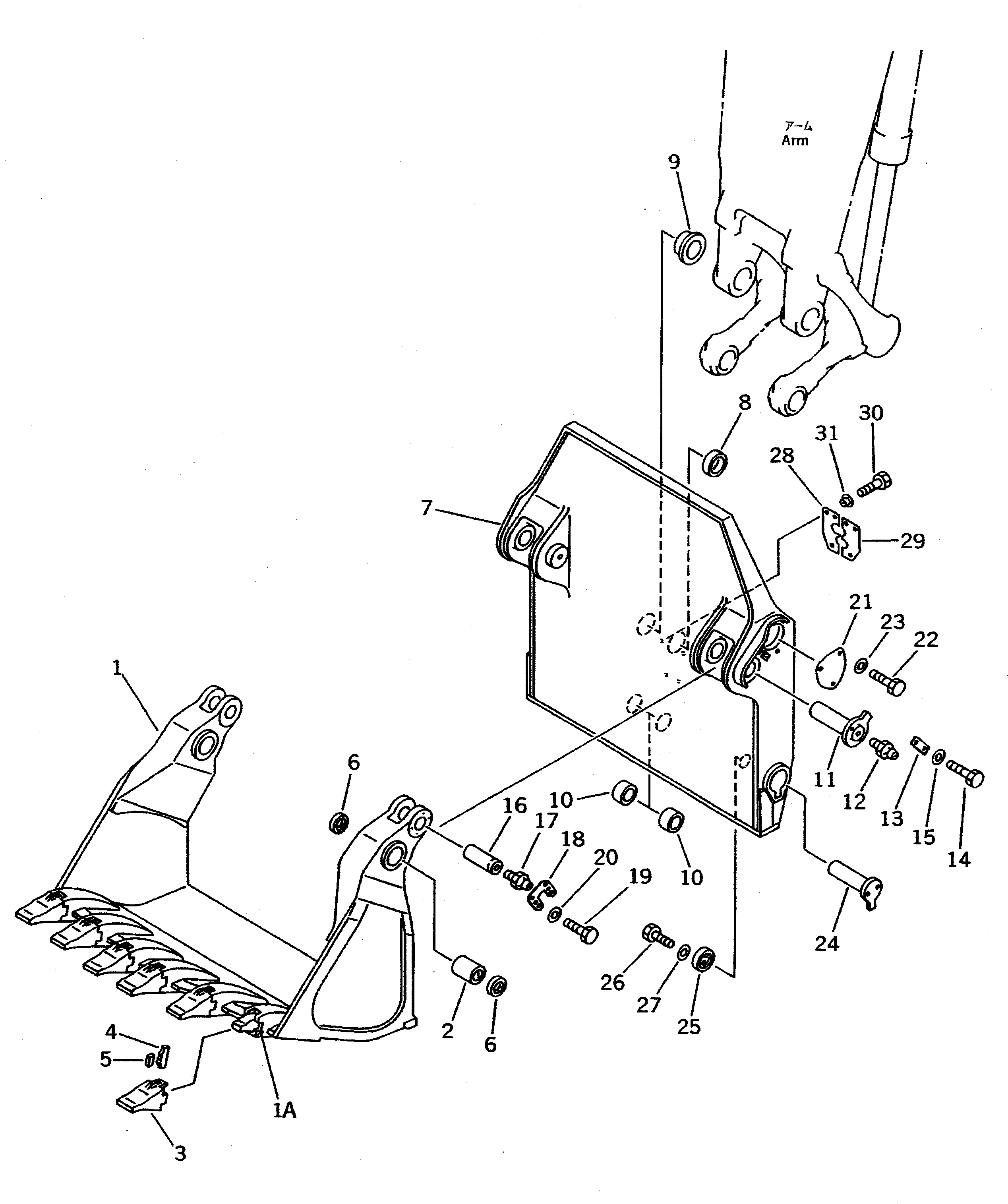

Запчасти Komatsu PC400-5 КОВШ .M (ДЛЯ НИЖН. ПОГРУЗ.)(№-) РАБОЧЕЕ ОБОРУДОВАНИЕ (ПОГРУЗ.)

G-1

208-72-X4010

BUCKET GROUP

|1

208-72-00130

FRONT BUCKET ASS'Y

1

208-72-54120

BUCKET,FRONT

1A

208-72-14130

ADAPTER (WELDED)

2

208-72-14150

BUSHING

3

208-72-14140

POINT

4

209-70-14160

PIN

5

209-70-14170

LOCK

6

209-72-14320

SEAL

|7

208-72-00140

REAR BUCKET ASS'Y

7

208-72-54110

BUCKET,REAR

8

208-72-54190

BUSHING

9

208-72-54180

BUSHING

10

208-72-54230

BUSHING

G-2

208-72-X4020

BUCKET GROUP

11

208-72-14160

PIN

12

07020-00000

FITTING

13

207-70-11230

PLATE

14

01010-51640

BOLT

15

01643-31645

WASHER

16

208-72-54240

PIN

17

07020-00000

FITTING,GREASE

18

206-70-45260

LOCK

19

01010-52045

BOLT

20

01643-32060

WASHER

21

208-72-54250

COVER

22

01010-51020

BOLT

23

01643-31032

WASHER

24

208-72-54210

PIN

25

208-72-54220

HOLDER

26

01010-51225

BOLT

27

01643-31322

WASHER

28

208-72-56160

POPPET

29

208-72-54170

COVER

30

01010-51230

BOLT

31

21N-30-11340

COLLAR
