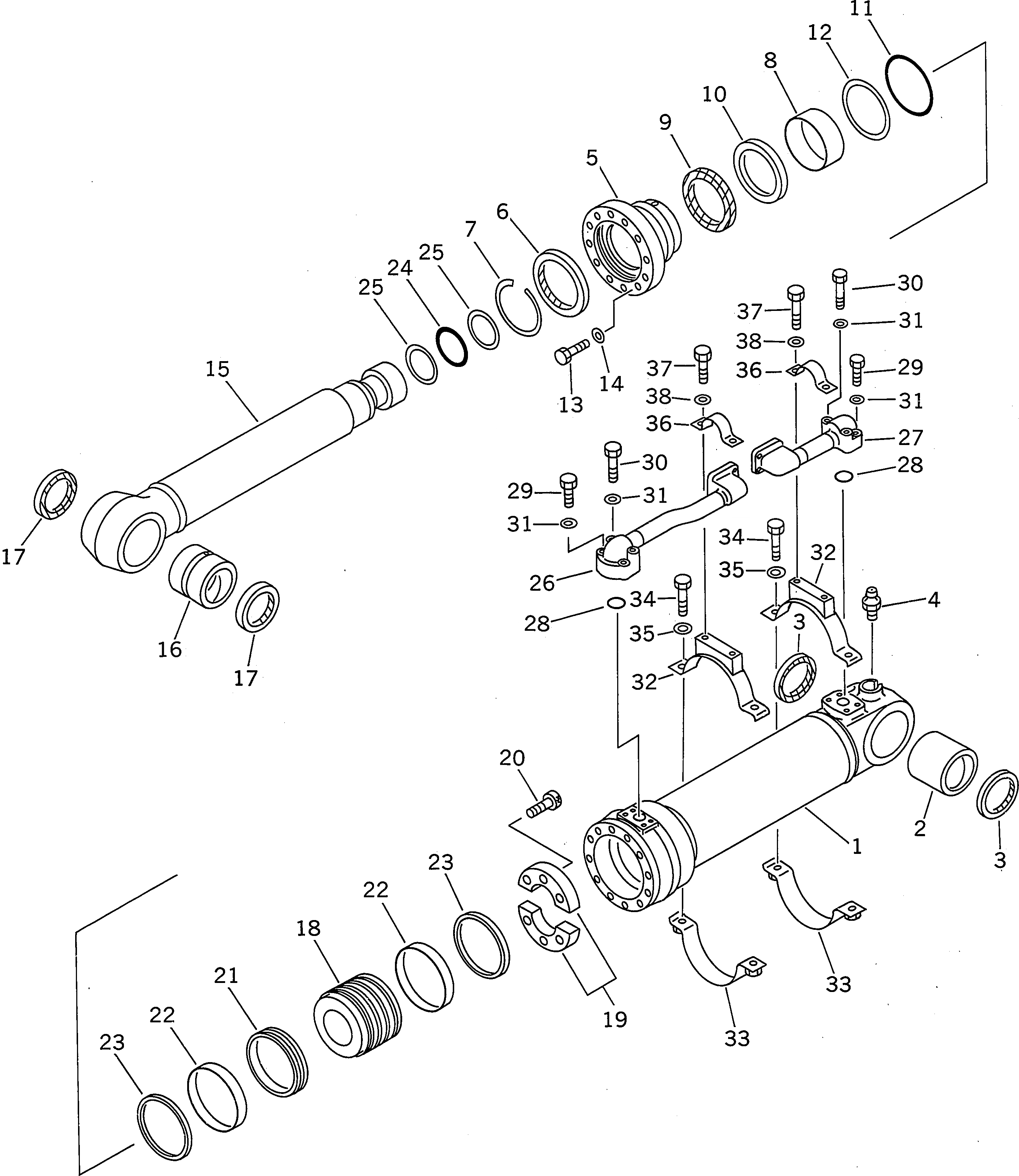

Запчасти Komatsu PC400-5 НИЖН. ГИДРОЦИЛИНДР КОВША (ДЛЯ НИЖН. ПОГРУЗ.)(№-) РАБОЧЕЕ ОБОРУДОВАНИЕ (ПОГРУЗ.)

G-1

208-63-X3150

CYLINDER GROUP,BOTTOM DUMP¤ L.H.

G-1

208-63-X3160

CYLINDER GROUP,BOTTOM DUMP¤ R.H.

|1

208-63-03150

CYLINDER ASS'Y,BOTTOM DUMP

1

208-63-94340

CYLINDER

2

707-76-80010

BUSHING

3

07145-00080

SEAL,DUST (KIT)

4

07020-00000

FITTING,GREASE

5

707-27-13620

HEAD,CYLINDER

6

195-63-94170

SEAL,DUST (KIT)

7

07179-13104

RING,SNAP

8

707-52-90650

BUSHING

9

707-51-90030

PACKING,ROD (KIT)

10

707-51-90630

RING,BUFFER (KIT)

11

07000-15125

O-RING (KIT)

12

07001-05125

RING,BACK-UP (KIT)

13

01010-81670

BOLT

14

01643-51645

WASHER

15

208-63-94320

ROD,PISTON

16

205-63-65271

BUSHING

17

07145-00080

SEAL,DUST (KIT)

18

707-36-13320

PISTON

19

707-40-13670

SPACER

20

01252-31240

BOLT

21

707-44-13180

RING,PISTON (KIT)

22

707-39-13110

RING,WEAR (KIT)

23

707-44-13911

RING (KIT)

24

07000-12070

O-RING (KIT)

25

707-35-52910

RING,BACK-UP (KIT)

26

208-63-94370

TUBE,L.H.

|26

208-63-94470

TUBE,R.H.

27

208-63-94380

TUBE,L.H.

|27

208-63-94480

TUBE,R.H.

28

07000-13030

O-RING (KIT)

29

07372-21045

BOLT

30

07032-21060

BOLT

31

01643-51032

WASHER

32

707-88-87280

BRACKET

33

707-88-87270

BAND

34

01010-51035

BOLT

35

01643-51032

WASHER

36

07282-02793

CLAMP

37

01010-51020

BOLT

38

01643-31032

WASHER
