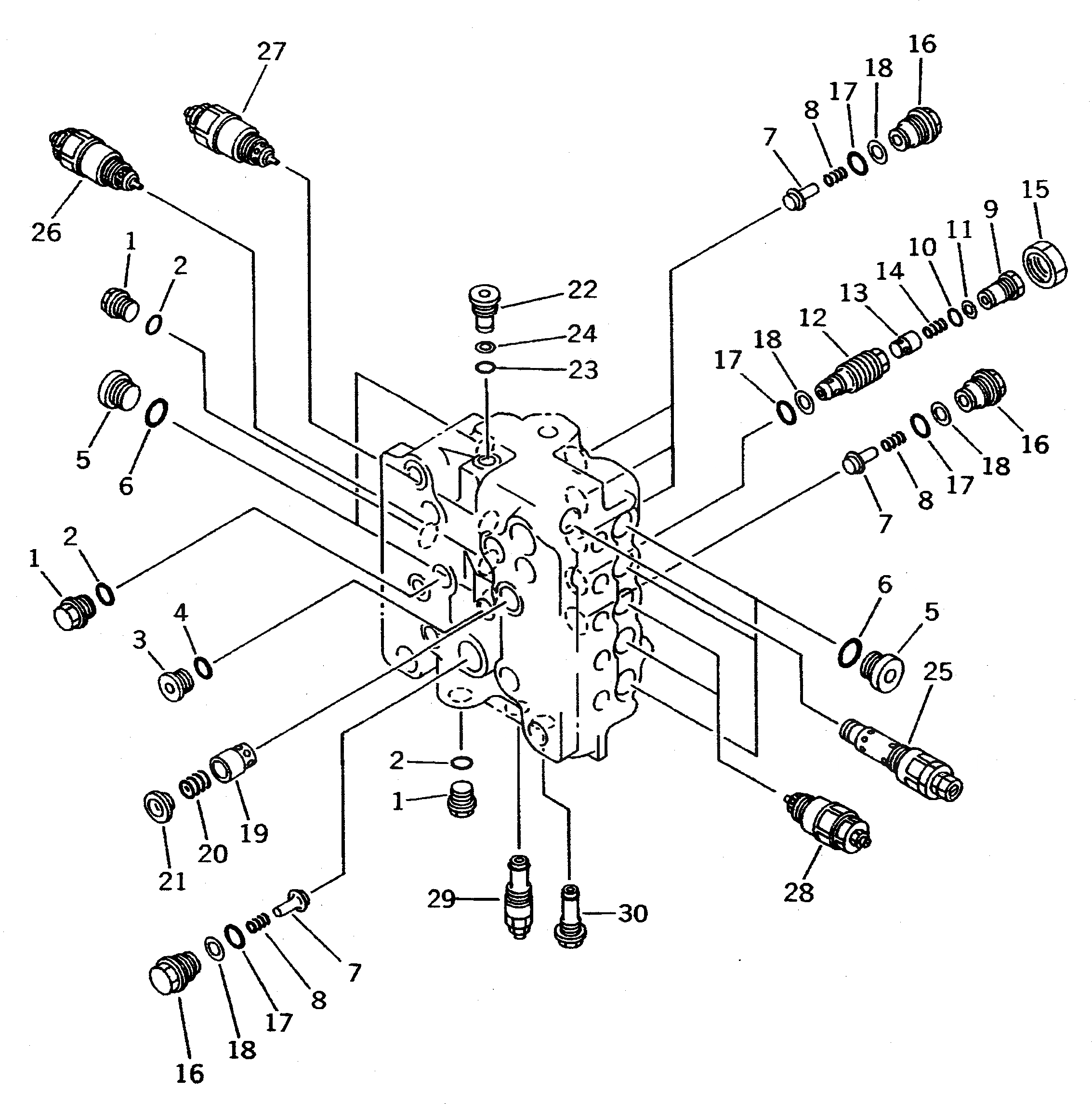

Запчасти Komatsu PC400-5 УПРАВЛЯЮЩ. КЛАПАН (/7) (ДЛЯ ПОГРУЗ.)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-99-14201

CONTROL VALVE ASS'Y

|1

709-99-14200

CONTROL VALVE ASS'Y

|1

709-95-94201

VALVE ASS'Y

|1

709-95-94200

VALVE ASS'Y

1

709-74-91860

PLUG

2

07002-12434

O-RING

3

709-95-91150

PLUG

4

07002-12434

O-RING

5

07040-13618

PLUG

6

07002-03634

O-RING

7

709-94-92811

VALVE

|7

4709-94-92810

VALVE

8

709-94-91751

SPRING

|8

4709-94-91750

SPRING

9

709-74-92450

PLUG

10

07000-12010

O-RING

11

07001-02010

RING,BACK-UP

12

709-94-91770

PLUG

13

706-73-70140

VALVE,CHECK

14

706-73-70150

SPRING

15

709-74-92460

NUT

16

709-74-92821

PLUG

17

700-93-11320

O-RING

18

700-93-11330

RING,BACK-UP

19

709-94-91261

VALVE

20

709-94-91270

SPRING

21

709-94-91280

SEAT

22

709-74-91850

PLUG

23

07000-12018

O-RING

24

07001-02018

RING,BACK-UP

25

709-90-52302

RELIEF VALVE ASS'Y

26

709-90-71100

VALVE ASS'Y,SUCTION AND SAFETY

27

709-90-71200

VALVE ASS'Y,SUCTION AND SAFETY

28

709-90-71300

VALVE ASS'Y,SUCTION AND SAFETY

29

709-90-59400

VALVE ASS'Y

30

709-90-91300

ORIFICE ASS'Y
