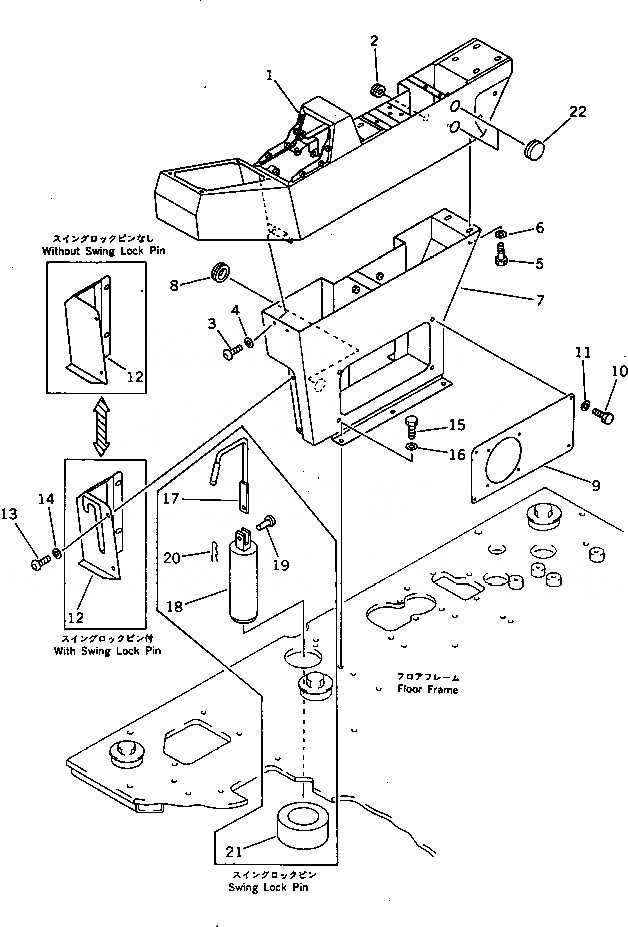

Запчасти Komatsu PC400-3 WRIST УПРАВЛ-Е СТОЙКА¤ ПРАВ. (/)(№8-) ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯ

1

205-43-71254

BOX

2

08037-02512

GROMMET

3

198-911-3430

SCREW

4

198-911-3160

WASHER

5

01010-50820

BOLT

6

01643-30823

WASHER

7

207-43-33111

CASE

8

08037-02512

GROMMET

9

205-43-71673

COVER

10

01010-50820

BOLT

11

01643-30823

WASHER

12

207-43-33130

COVER,(WITH LOCK PIN)

|12

207-43-33270

COVER,(WITHOUT LOCK PIN)

13

198-911-3430

SCREW

14

198-911-3160

WASHER

15

01010-51225

BOLT

16

01643-31232

WASHER

17

207-43-31130

BAR,(WITH LOCK PIN)

18

207-43-31140

PIN,(WITH LOCK PIN)

19

04205-11232

PIN,(WITH LOCK PIN)

20

04052-01253

PIN,SNAP (WITH LOCK PIN)

21

207-43-31150

CUSHION,(WITH LOCK PIN)

22

09415-02512

CAP
