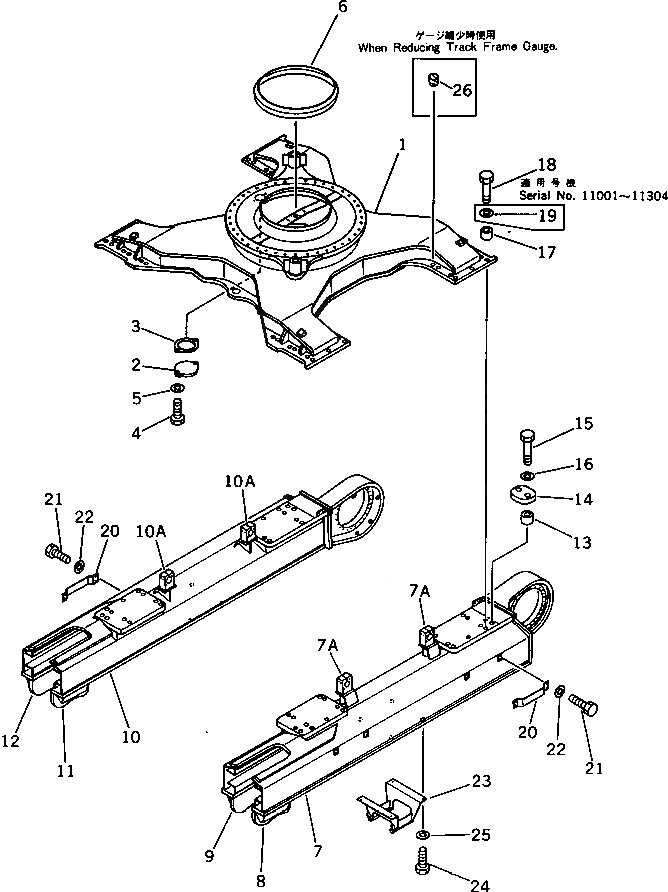

Запчасти Komatsu PC400-3 ГУСЕНИЧНАЯ РАМА ХОДОВАЯ

1

208-30-31111

FRAME,TRACK (WITH LOCK PIN)

|1

208-30-31530

FRAME,TRACK (WITHOUT LOCK PIN)

2

205-30-71181

COVER

|2

205-30-71180

COVER

3

205-30-71191

GASKET

|3

205-30-71190

GASKET

4

01010-51230

BOLT

5

01643-31232

WASHER

6

205-30-71170

SEAL

7

208-30-31121

FRAME,L.H.

7A

208-30-31390

SUPPORT (WELDED)

8

208-30-31141

GUARD,L.H. (WELDED)

9

208-30-31151

GUARD,R.H. (WELDED)

10

208-30-31131

FRAME,R.H.

10A

208-30-31390

SUPPORT (WELDED)

11

208-30-31141

GUARD,L.H. (WELDED)

12

208-30-31151

GUARD,R.H. (WELDED)

13

208-30-31650

COLLAR

|13

208-30-31170

COLLAR

14

208-30-12160

PLATE

15

01011-83030

BOLT

16

01643-33080

WASHER

17

208-30-11971

SPACER

|17

208-30-11970

SPACER

18

208-30-12130

BOLT

19

01643-33080

WASHER

20

208-30-31180

BRACKET

21

01010-51640

BOLT

22

01643-31645

WASHER

23

208-30-31161

GUARD

24

01010-52460

BOLT

25

01643-32460

WASHER

26

07049-03949

PLUG
