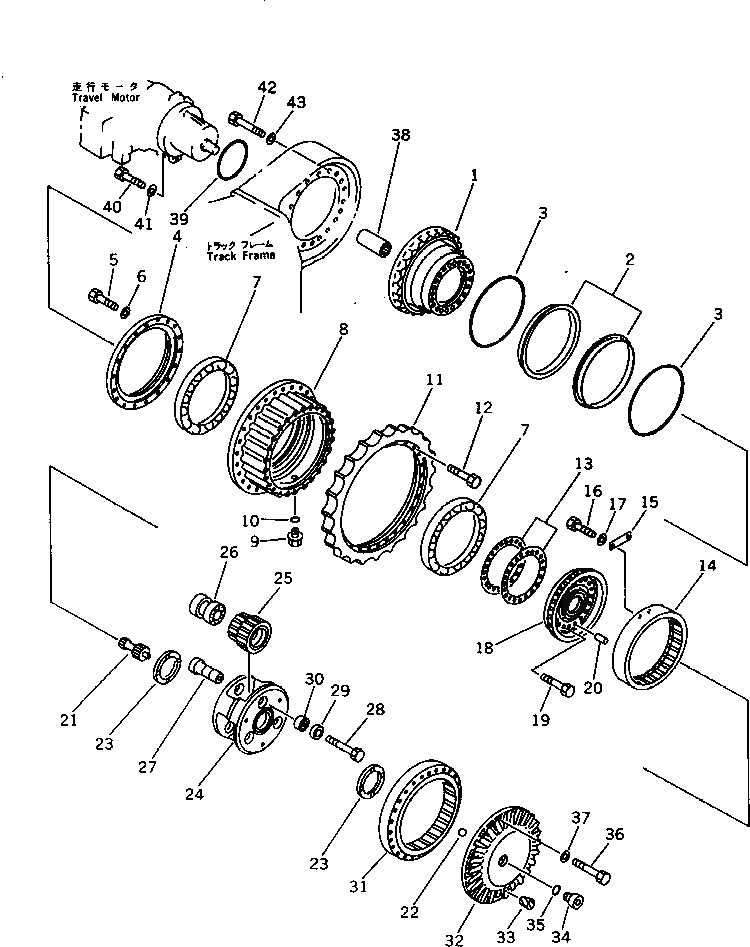

Запчасти Komatsu PC400-3 FINAL DREVE(№7-) ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

|1

208-27-00026

FINAL DRIVE ASS'Y

1

208-27-31116

SHAFT

|2

287-33-00010

FLOATING SEAL ASS'Y

2

287-33-00090

SEAL RING ASS'Y

|2

RING,SEAL

3

180-27-00100

O-RING ASS'Y

|3

O-RING

4

208-27-31230

COVER

5

01010-51230

BOLT

6

01643-31232

WASHER

7

208-27-31271

BEARING

8

208-27-31125

HUB

9

07044-12412

PLUG

10

07002-02434

O-RING

11

208-27-31221

SPROCKET

12

01010-52050

BOLT

13

208-27-31440

SPACER¤ 3.30MM

14

208-27-31196

GEAR

15

207-26-31290

PLATE

16

01010-50820

BOLT

17

01643-50823

WASHER

18

208-27-31216

GEAR

19

208-27-31372

BOLT

20

154-33-11720

PIN

21

208-27-31174

GEAR

22

04260-01905

BALL

23

208-27-31340

SPACER

24

208-27-31152

CARRIER

25

208-27-00033

PLANETARY GEAR A.

|25

GEAR

26

208-27-31331

BEARING,WITH SPACER

27

208-27-31262

PIN

28

01011-51620

BOLT

29

208-27-31351

SPACER

30

208-27-31720

SPACER

31

208-27-31164

GEAR

32

208-27-31143

COVER

33

07049-01215

PLUG

34

07040-13618

PLUG

35

07002-03634

O-RING

36

01011-52020

BOLT

37

01643-32060

WASHER

38

208-27-31240

COUPLING

39

07000-05240

O-RING

40

01010-52485

BOLT

41

01643-32460

WASHER

42

01011-52000

BOLT

43

01643-32060

WASHER

13

208-27-31510

SPACER¤ 3.25MM

|13

208-27-31450

SPACER¤ 3.35MM

|13

208-27-31460

SPACER¤ 3.40MM

|13

208-27-31470

SPACER¤ 3.45MM

|13

208-27-31480

SPACER¤ 3.50MM

|13

208-27-31490

SPACER¤ 3.55MM

|13

208-27-31710

SPACER¤ 3.05MM

|13

208-27-31690

SPACER¤ 3.10MM

|13

208-27-31680

SPACER¤ 3.15MM

|13

208-27-31670

SPACER¤ 3.20MM
