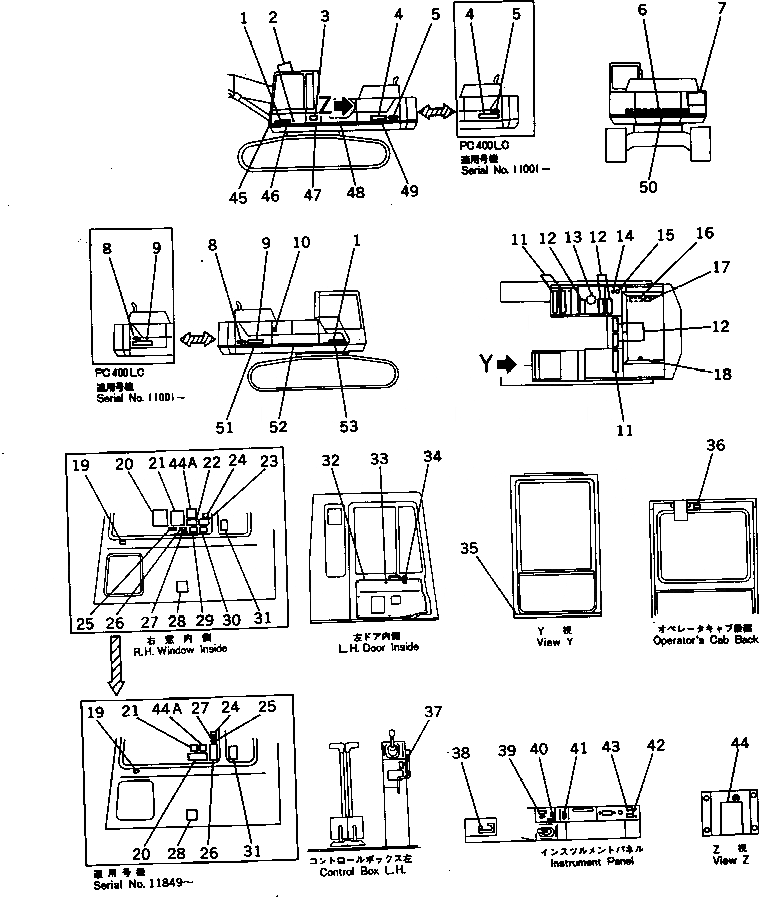

Запчасти Komatsu PC400-3 МАРКИРОВКА (ШАССИ) (ДЛЯ WRIST УПРАВЛ-Е) (ЯПОН.) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09690-50500

PLATE¤ MARK,KOMATSU

2

205-00-63770

PLATE

3

09602-01643

PLATE¤ NAME,(LIMITED SUPPLY)

|3

205-00-72430

RIVET

|3

205-00-71540

SCREW

4

208-00-31120

PLATE¤ MARK,PC400

|4

208-00-31160

PLATE¤ MARK,PC400LC

5

205-00-71240

PLATE¤ MARK,SYMBOL

6

207-00-31111

PLATE¤ MARK,KOMATSU

7

09133-00100

PLATE¤ SAFETY

8

205-00-71240

PLATE¤ MARK,SYMBOL

9

208-00-31120

PLATE¤ MARK,PC400

|9

208-00-31160

PLATE¤ MARK,PC400LC

10

205-00-73360

PLATE¤ OPERATING,LEVEL GAUGE

11

21T-54-11620

SEAT,NONSKID

12

154-54-23260

SEAT,NONSKID

13

09669-00002

PLATE¤ CAUTION,FUEL TANK

14

09669-00003

PLATE¤ CAUTION,HYDRAULIC TANK

15

09653-00100

PLATE¤ SAFETY,HYDRAULIC TANK CAP

16

09650-01103

PLATE¤ INSTRUCTION,RADIATOR

17

09668-00100

PLATE¤ SAFETY,RADIATOR CAP

18

09667-00100

PLATE¤ SAFETY

19

205-00-52192

PLATE¤ CAUTION

20

208-00-31240

PLATE¤ OPERATING

|20

208-00-31330

PLATE¤ OPERATING,(FOR TILT DUMP LOADER)

21

205-00-71350

PLATE¤ OPERATING

22

205-00-65120

PLATE¤ CAUTION

23

205-00-65190

PLATE¤ CAUTION

24

207-00-31330

PLATE¤ CAUTION

25

205-00-71780

PLATE¤ CAUTION

26

205-00-73370

PLATE¤ CAUTION

|26

09651-00100

PLATE¤ SAFETY,BEFORE OPERATING

27

09131-00100

PLATE¤ SAFETY,LOCK LEVER (WITH LOCK PIN)

28

208-00-31141

PLATE¤ DATA,PC400

|28

208-00-31210

PLATE¤ DATA,PC400LC

29

09173-00100

PLATE¤ SAFETY,INSPECTION AND MAINTENANCE

30

205-00-63250

PLATE¤ CAUTION

31

205-00-71560

PLATE¤ CAUTION

32

208-54-33112

COVER

33

205-54-72350

CLIP ASS'Y

34

205-00-71340

PLATE¤ OPERATING

35

205-54-76480

PLATE

36

205-00-63230

PLATE¤ CAUTION

37

09685-00002

PLATE¤ OPERATING,SAFETY LOCK LEVER

38

09685-00002

PLATE¤ OPERATING,LOCK LEVER (WITH LOCK PIN)

39

207-00-31221

PLATE¤ OPERATING

40

09685-00001

PLATE¤ OPERATING,SAFETY LOCK LEVER

41

09683-01060

PLATE¤ OPERATING,STARTING SWITCH

42

205-00-71470

PLATE¤ OPERATING,AUTO DECELERATION

43

205-00-71480

PLATE¤ OPERATING,(WITH LOCK PIN)

|43

207-00-31750

PLATE¤ OPERATING,(WITHOUT LOCK PIN)

44

207-00-31380

PLATE¤ OPERATING

44A

205-00-71810

PLATE

45

205-00-71530

LINE¤ STRIPE¤ 50M

|45

205-00-73270

LINE¤ STRIPE¤ 46MM,(SERVICE PARTS)

46

205-00-71120

LINE¤ STRIPE¤ 1030MM,(SERVICE PARTS)

47

205-00-71130

LINE¤ STRIPE¤ 476MM,(SERVICE PARTS)

48

207-00-31150

LINE¤ STRIPE¤ 1054MM,(SERVICE PARTS)

49

207-00-31160

LINE¤ STRIPE¤ 1294MM,(SERVICE PARTS)

50

207-00-31210

LINE¤ STRIPE¤ 4200MM,(SERVICE PARTS)

51

207-00-31170

LINE¤ STRIPE¤ 1109MM,(SERVICE PARTS)

52

207-00-31180

LINE¤ STRIPE¤ 1406MM,(SERVICE PARTS)

53

207-00-31190

LINE¤ STRIPE¤ 831MM,(SERVICE PARTS)
