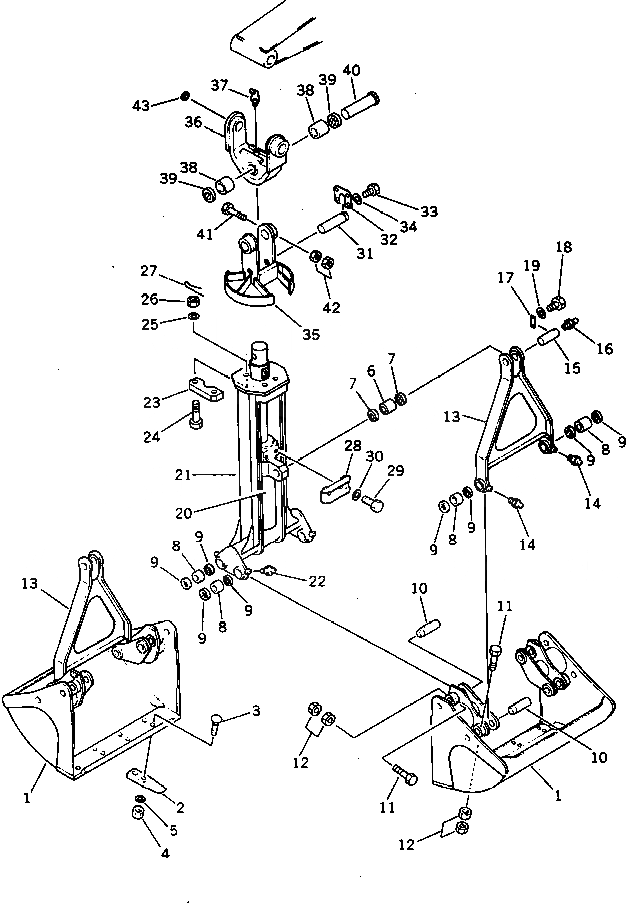

Запчасти Komatsu PC400-3 ГРЕЙФЕРН. КОВШ¤ .M (DIGGING ТИП) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

208-931-1150

BUCKET

2

208-931-1160

TOOTH

3

02091-11405

BOLT

4

02290-11422

NUT

5

01643-32260

WASHER

6

07143-10706

BUSHING

7

07145-10070

SEAL

8

07144-10606

BUSHING

9

07145-10060

SEAL

10

208-931-1220

PIN

11

01011-51455

BOLT

12

01580-11411

NUT

13

208-931-1140

LINK

14

07020-00000

FITTING,GREASE

15

202-70-48510

PIN

16

07020-00000

FITTING,GREASE

17

04082-00514

LOCK

18

01010-51435

BOLT

19

01643-31445

WASHER

20

208-63-92100

CLAMSHELL,CYLINDER

21

208-931-1130

FRAME

22

07020-00000

FITTING,GREASE

23

208-931-1180

PLATE

24

01013-83035

BOLT

25

01643-33080

WASHER

26

01590-13033

NUT

27

04050-16055

PIN,COTTER

28

208-931-1170

SUPPORT

29

01010-51430

BOLT

30

01643-31445

WASHER

31

154-71-22470

PIN

32

175-71-21330

PLATE

33

01010-51435

BOLT

34

01643-31445

WASHER

35

208-931-1120

HANGER

36

208-931-3110

BRACKET

37

07020-00675

FITTING,GREASE

38

208-931-1210

BUSHING

39

07145-10085

SEAL

40

208-931-1190

PIN

41

01011-51670

BOLT

42

01580-11613

NUT

43

208-70-34270

COLLAR
