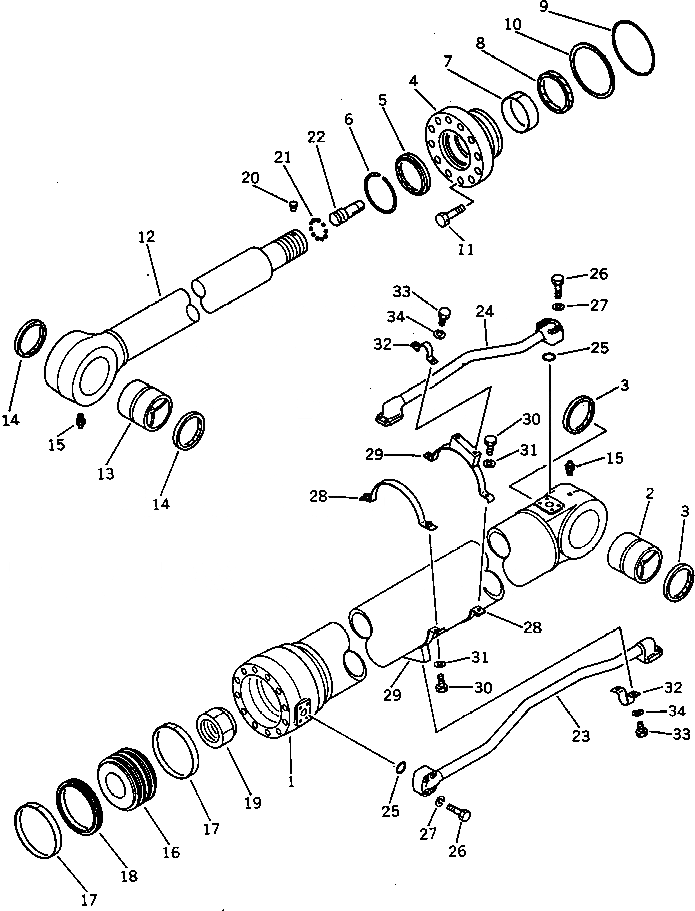

Запчасти Komatsu PC400-3 ЦИЛИНДР РУКОЯТИ(ДЛЯ ПОГРУЗ.) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

208-63-64101

ARM CYLINDER ASS'Y

1

208-63-64141

CYLINDER

2

707-76-11130

BUSHING

3

07145-00110

SEAL,DUST

4

707-27-18570

HEAD,CYLINDER

5

195-63-93170

SEAL,DUST

6

707-75-12010

RING,SNAP

7

07177-01240

BUSHING

8

707-51-12110

PACKING,ROD

9

07000-15175

O-RING

10

07001-05175

RING,BACK-UP

11

01010-52475

BOLT

12

208-63-64120

ROD,PISTON

13

707-76-11130

BUSHING

14

07145-00110

SEAL,DUST

15

07020-00000

FITTING,GREASE

16

707-36-18271

PISTON

17

07156-01822

RING,WEAR

18

707-44-18080

RING,PISTON

19

07165-18583

NUT

20

707-71-91260

CAP

21

04260-01270

BALL

22

707-71-50370

PLUNGER

23

208-63-64170

TUBE

24

208-72-36310

TUBE

25

07000-13035

O-RING

26

01010-51060

BOLT

27

01602-21030

WASHER,SPRING

28

707-88-99840

BAND

29

707-88-99830

BAND

30

01010-51240

BOLT

31

01602-21236

WASHER,SPRING

32

07282-03411

CLAMP

33

01010-51020

BOLT

34

01602-21030

WASHER,SPRING
