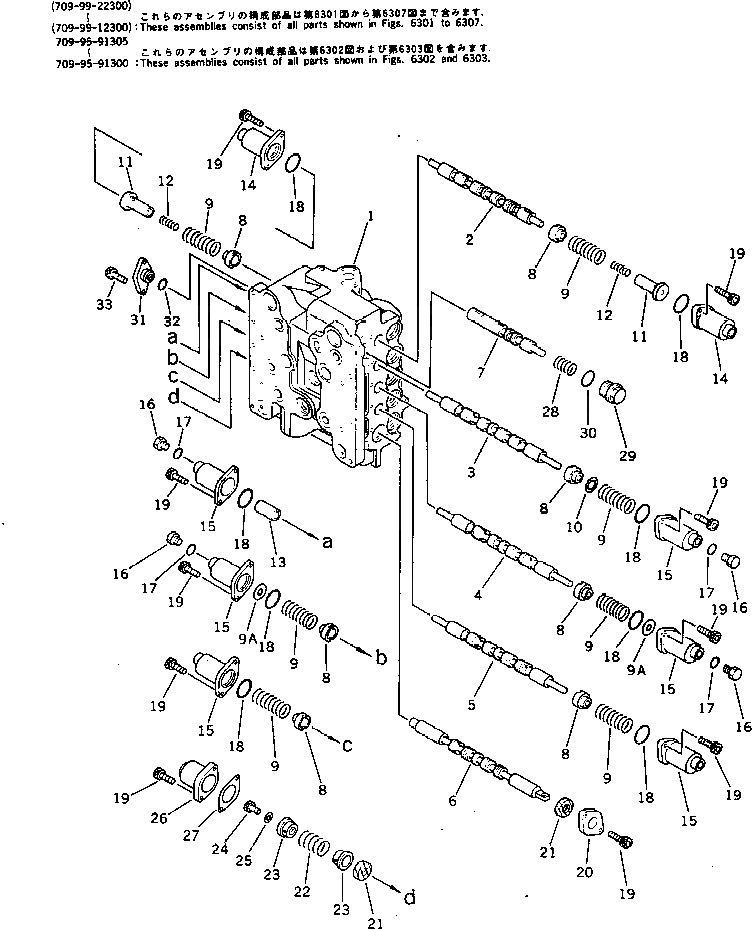

Запчасти Komatsu PC400-3 УПРАВЛЯЮЩ. КЛАПАН (/7) (ДЛЯ ПОГРУЗ.) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
709-99-22300
CONTROL VALVE ASS'Y
|1
709-99-12309
CONTROL VALVE ASS'Y
|1
709-99-12308
CONTROL VALVE ASS'Y
|1
709-99-12307
CONTROL VALVE ASS'Y
|1
709-99-12306
CONTROL VALVE ASS'Y
|1
709-99-12304
CONTROL VALVE ASS'Y
|1
709-99-12303
CONTROL VALVE ASS'Y
|1
709-99-12302
CONTROL VALVE ASS'Y
|1
709-99-12301
CONTROL VALVE ASS'Y
|1
709-99-12300
CONTROL VALVE ASS'Y
|1
709-95-91305
VALVE ASS'Y
|1
709-95-91304
VALVE ASS'Y
|1
709-95-91302
VALVE ASS'Y
|1
709-95-00031
VALVE ASS'Y
|1
709-95-91301
VALVE ASS'Y
|1
709-95-91300
VALVE ASS'Y
1
BODY
|1
BODY
|1
BODY
|1
BODY
2
SPOOL,SWING
3
SPOOL,BOOM HIGH
4
SPOOL,SERVICE
5
SPOOL,ARM
6
SPOOL,L.H. TRAVEL
7
SPOOL
8
709-94-91130
RETAINER
9
709-94-91120
SPRING
9A
709-94-91780
SPACER
10
709-94-91760
SPACER¤ 1.0MM
11
709-94-91170
RETAINER
12
709-94-91180
SPRING
13
700-93-11361
SPACER
14
709-94-91720
CASE
15
709-94-91210
CASE
16
07040-12012
PLUG
|16
701-30-63130
PLUG
17
07002-02034
O-RING
18
07430-71380
O-RING
19
01252-30820
BOLT
20
709-94-91460
PLATE
21
700-94-11710
SEAL
22
709-94-91910
SPRING
23
700-93-11870
RETAINER
24
01252-31016
BOLT
25
01643-31032
WASHER
26
700-93-11220
CASE
27
709-94-91470
PLATE
28
709-94-91160
SPRING
29
709-74-92230
PLUG
30
07002-03034
O-RING
31
709-94-91240
PLATE
32
700-13-31161
O-RING
33
01252-30820
BOLT
Выбрано товаров: 54
