Запчасти Komatsu PC400-3 СЕРВОКЛАПАН¤ ПЕРЕДН. (/) (С -STAGE SELECTOR MODE OLSS) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

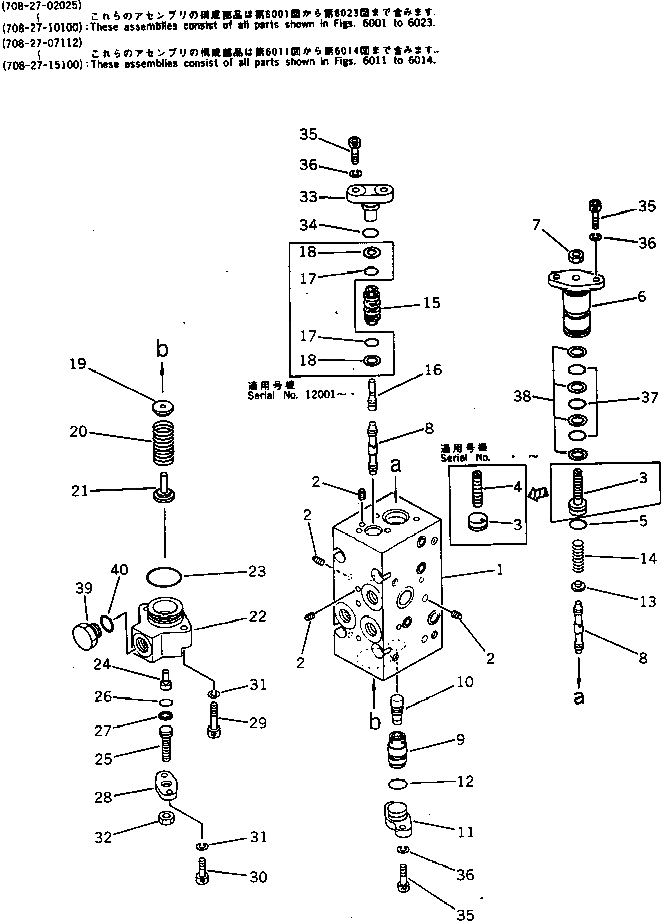

Схема запчастей Komatsu PC400-3 - СЕРВОКЛАПАН¤ ПЕРЕДН. (/) (С -STAGE SELECTOR MODE OLSS) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

Артикул

Название

Примечание

Количество

|1

708-27-02025

HYDRAULIC PUMP ASS'Y,(HPV 160+160)

|1

708-27-02024

HYDRAULIC PUMP ASS'Y,(HPV 160+160)

|1

708-27-02023

HYDRAULIC PUMP ASS'Y,(HPV 160+160)

|1

708-27-02022

HYDRAULIC PUMP ASS'Y,(HPV 160+160)

|1

708-27-02021

HYDRAULIC PUMP ASS'Y,(HPV 160+160)

|1

708-27-02020

HYDRAULIC PUMP ASS'Y,(HPV 160+160)

|1

708-27-01010

HYDRAULIC PUMP ASS'Y,(HPV 160+160)

|1

708-27-10100

PUMP ASS'Y,(HPV 160+160)

|1

708-27-07112

SERVO VALVE ASS'Y,FRONT

|1

708-27-07111

SERVO VALVE ASS'Y,FRONT

|1

708-27-07110

SERVO VALVE ASS'Y,FRONT

|1

708-27-15100

SERVO VALVE ASS'Y,FRONT

|1

708-27-07511

VALVE ASS'Y,CO AND NC

|1

708-27-07510

VALVE ASS'Y,CO AND NC

|1

708-27-17100

VALVE ASS'Y,CO AND NC

|1

708-23-07042

BODY ASS'Y

|1

4708-23-07041

BODY ASS'Y

|1

4708-23-07040

BODY ASS'Y

1

708-25-17112

BODY

|1

BODY

|1

BODY

2

708-25-15350

EXPANDER

|2

720-68-19740

PLUG

3

708-25-17420

PLUG

|3

708-25-17122

PLUG

|3

708-25-17120

PLUG

4

708-25-17430

SCREW

5

07000-02010

O-RING

|5

07000-02012

O-RING

6

708-25-17131

COVER

|6

708-25-17130

COVER

7

01580-10806

NUT

8

708-25-17141

SPOOL

|8

708-25-17140

SPOOL

9

708-25-17150

SLEEVE

10

708-25-17160

PISTON

11

708-25-17170

COVER

12

07000-02014

O-RING

13

708-25-17180

SEAT

14

708-25-17190

SPRING

15

708-25-17211

SLEEVE

|15

4708-25-17210

SLEEVE

16

708-25-17220

PISTON

17

07000-12012

O-RING

18

07001-02012

RING,BACK-UP

19

708-25-17370

SEAT

|19

708-25-17240

SEAT

20

708-25-17250

SPRING

21

708-25-17260

SEAT

22

708-25-17280

COVER

23

07000-03028

O-RING

24

708-25-17270

PISTON

25

708-25-17290

PLUG

26

07000-11009

O-RING

27

07001-01009

RING,BACK-UP

28

708-25-17310

COVER

29

706-75-40310

BOLT

|29

01252-30630

BOLT

30

708-25-15320

BOLT

|30

01252-30616

BOLT

31

01602-20619

WASHER,SPRING

32

01580-10806

NUT

33

708-25-17230

COVER

34

07000-02012

O-RING

35

708-25-15320

BOLT

|35

01252-30616

BOLT

36

01602-20619

WASHER,SPRING

37

07000-12021

O-RING

|37

07000-02021

O-RING

38

07001-02021

RING,BACK-UP

39

07040-11409

PLUG

40

07002-01423

O-RING

Выбрано товаров: 72
