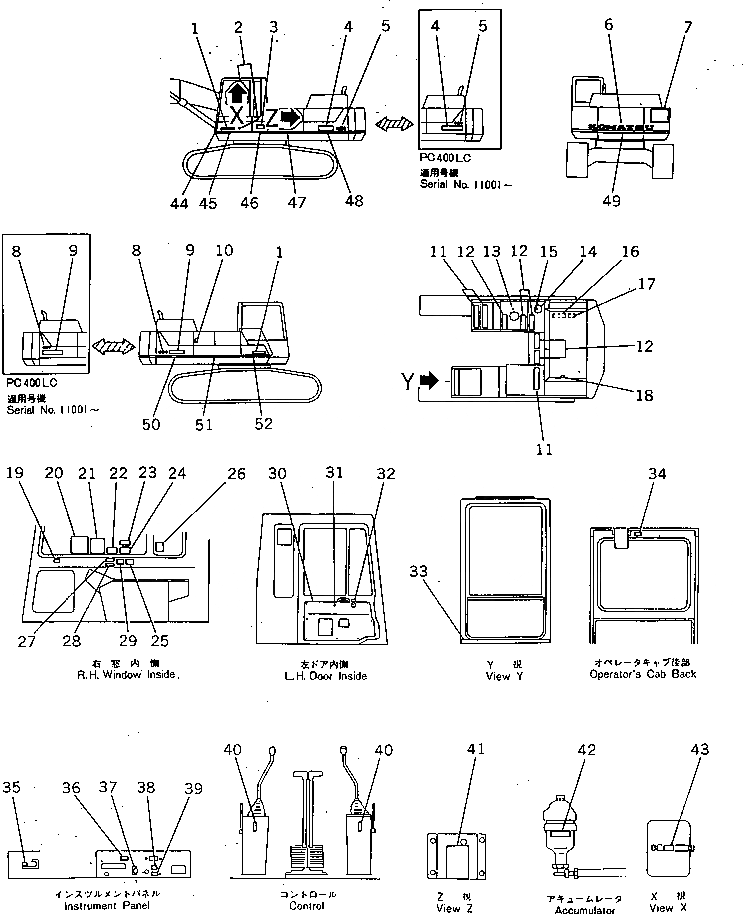

Запчасти Komatsu PC400-3 МАРКИРОВКА (ШАССИ) (ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е) (ПОРТУГАЛ.) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09690-50500

PLATE, MARK,KOMATSU

2

205-00-63770

PLATE

3

09602-22643

PLATE, NAME,(LIMITED SUPPLY)

3

205-00-72430

RIVET

3

205-00-71540

SCREW

4

208-00-31120

PLATE, MARK,PC400

4

208-00-31160

PLATE, MARK,PC400LC

5

205-00-71240

PLATE, MARK,SYMBOL

6

207-00-31111

PLATE, MARK,KOMATSU

7

09133-02000

PLATE, SAFETY,CAUTION

8

205-00-71240

PLATE, MARK,SYMBOL

9

208-00-31120

PLATE, MARK,PC400

9

208-00-31160

PLATE, MARK,PC400LC

10

205-00-73360

PLATE, OPERATING,LEVEL GAUGE

11

21T-54-11620

SEAT,NONSKID

12

154-54-23260

SEAT,NONSKID

13

09669-00002

PLATE, CAUTION,FUEL TANK

14

09669-00003

PLATE, CAUTION,HYDRAULIC TANK

15

09653-02000

PLATE, SAFETY,HYDRAULIC TANK CAP

16

09650-21103

PLATE, INSTRUCTION,RADIATOR

17

09668-02000

PLATE, SAFETY,RADIATOR CAP

18

09667-02000

PLATE, SAFETY

19

207-00-13460

PLATE, CAUTION

20

208-00-31260

PLATE, OPERATING

20

208-00-31330

PLATE, OPERATING,(FOR TILT DUMP LOADER)

21

205-00-75490

PLATE

22

205-00-65160

PLATE

23

207-00-31350

PLATE, CAUTION

24

205-00-64230

PLATE

25

207-00-13480

PLATE, CAUTION

26

205-00-71650

PLATE, CAUTION

27

09651-02000

PLATE, SAFETY,BEFORE OPERATING

28

09131-02000

PLATE, SAFETY,SWING LOCK LEVER

29

09173-02000

PLATE, SAFETY,INSPECTION AND MAINTENANCE

30

208-54-33130

COVER

31

205-54-72350

CLIP ASS'Y

32

205-00-71340

PLATE, OPERATING

33

205-54-76480

PLATE

34

207-00-13450

PLATE

35

09685-00002

PLATE, OPERATING,SWING LOCK LEVER

36

207-00-31221

PLATE, OPERATING

37

09683-21060

PLATE, OPERATING,STARTING SWITCH

38

205-00-74240

PLATE, OPERATING

39

205-00-74250

PLATE, OPERATING,AUTO DECELERATION

40

09685-00001

PLATE, OPERATING,SAFETY LOCK LEVER

41

205-00-75530

PLATE, OPERATING

42

205-00-75540

PLATE

43

207-00-13510

PLATE, SAFETY

44

205-00-71530

LINE, STRIPE, 50M

44

205-00-73270

LINE, STRIPE, 46MM,(SERVICE PARTS)

45

205-00-71120

LINE, STRIPE, 1030MM,(SERVICE PARTS)

46

205-00-71130

LINE, STRIPE, 476MM,(SERVICE PARTS)

47

207-00-31150

LINE, STRIPE, 1054MM,(SERVICE PARTS)

48

207-00-31160

LINE, STRIPE, 1294MM,(SERVICE PARTS)

49

207-00-31210

LINE, STRIPE, 4200MM,(SERVICE PARTS)

50

207-00-31170

LINE, STRIPE, 1109MM,(SERVICE PARTS)

51

207-00-31180

LINE, STRIPE, 1406MM,(SERVICE PARTS)

52

207-00-31190

LINE, STRIPE, 831MM,(SERVICE PARTS)
