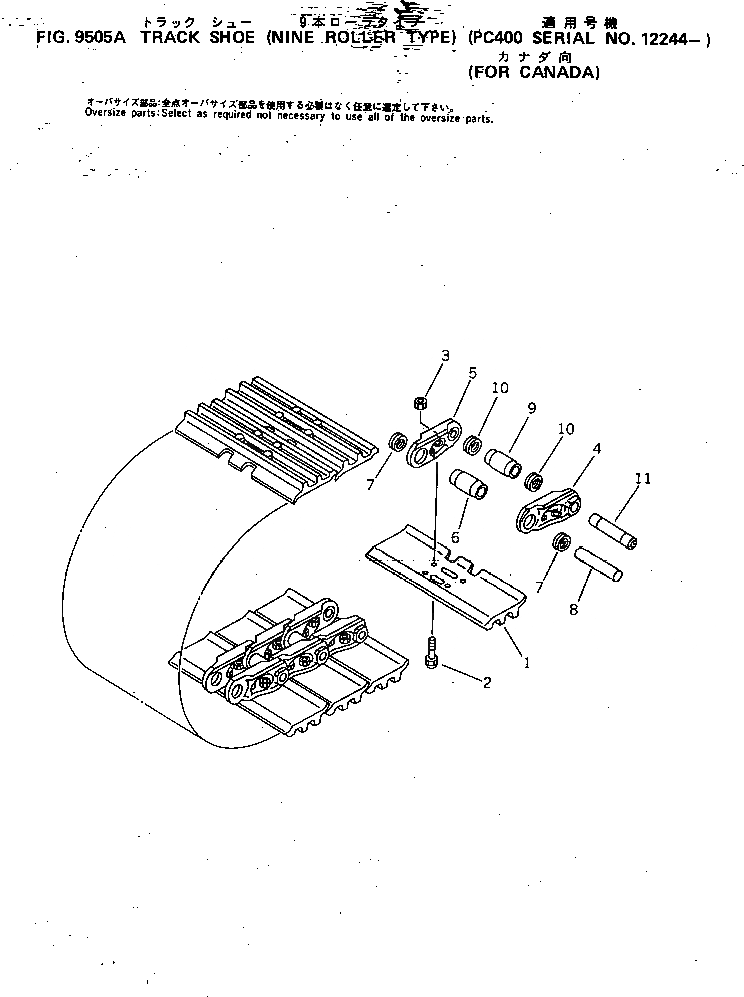

Запчасти Komatsu PC400-3 ГУСЕНИЦЫ (NINE РОЛИК ТИП) (ДЛЯ CANADA)(№-) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

|$1

208-32-02101

TRACK SHOE ASS'Y

|$2

208-32-02100

TRACK SHOE ASS'Y

1

208-32-51360

SHOE,TRACK

2

208-32-51210

BOLT, SHOE (KIT)

3

208-32-51220

NUT, SHOE (KIT)

|$6

208-32-00101

TRACK LINK ASS'Y

|$7

208-32-00100

TRACK LINK ASS'Y

4

208-32-51121

LINK,TRACK, L.H.

5

208-32-51131

LINK,TRACK, R.H.

6

208-32-51140

BUSHING

7

154-32-11283

SEAL,DUST, REGULAR, W-TYPE

8

154-820-1153

PIN

9

208-32-51170

BUSHING

10

154-32-11260

SEAL,DUST, MASTER, E-TYPE

11

208-32-51190

PIN

11

154-820-1192

PIN

1

208-32-05050

SHOE BOLT AND NUT K.

1

208-32-51210

BOLT, SHOE

2

208-32-51220

NUT, SHOE

6

154-98-09411

BUSHING, REGULAR

8

154-98-09212

PIN, REGULAR

9

154-98-09441

BUSHING, MASTER

11

208-98-09030

PIN, MASTER

11

154-98-09242

PIN, MASTER

6

154-98-09431

BUSHING, REGULAR

8

154-98-09232

PIN, REGULAR

9

154-98-09461

BUSHING, MASTER

11

208-98-09040

PIN, MASTER

11

154-98-09262

PIN, MASTER
