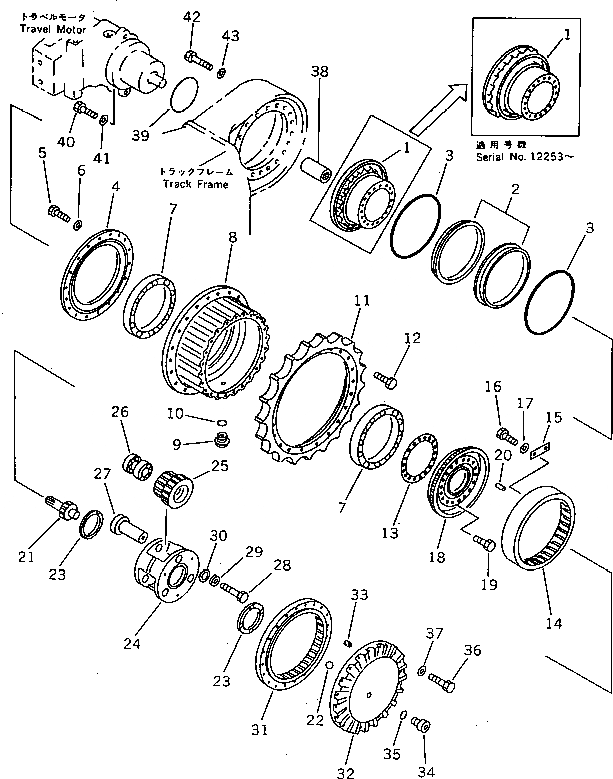

Запчасти Komatsu PC400-3 КОНЕЧНАЯ ПЕРЕДАЧА (ДЛЯ CANADA) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

|$0

208-27-00061

FINAL DRIVE ASS'Y

|$1

208-27-00060

FINAL DRIVE ASS'Y

1

208-27-31631

SHAFT

1

208-27-31630

SHAFT

|$4

287-33-00010

FLOATING SEAL ASS'Y

2

287-33-00090

SEAL RING ASS'Y

2

RING

3

180-27-00100

O-RING ASS'Y

3

O-RING

4

208-27-31641

COVER

4

208-27-31640

COVER

5

01010-51230

BOLT

6

01643-31232

WASHER

7

208-27-31621

BEARING

7

208-27-31620

BEARING

8

208-27-31611

HUB

8

208-27-31610

HUB

9

07044-12412

PLUG

10

07002-02434

O-RING

11

208-27-31221

SPROCKET

12

01010-52050

BOLT

13

208-27-51280

SPACER, 3.30MM

13

208-27-31440

SPACER, 3.30MM

14

208-27-31196

GEAR

14

208-27-31193

GEAR

15

207-26-31290

PLATE

15

205-26-71510

PLATE

16

01010-50820

BOLT

17

01643-50823

WASHER

18

208-27-31216

GEAR

18

208-27-31215

GEAR

19

208-27-31372

BOLT

20

154-33-11720

PIN

21

208-27-31174

GEAR

21

208-27-31520

GEAR

22

04260-01905

BALL

23

208-27-31340

SPACER

24

208-27-31152

CARRIER

24

208-27-31580

CARRIER

25

208-27-00071

PLANETARY GEAR A.

25

208-27-00070

PLANETARY GEAR A.

25

GEAR

25

GEAR

26

208-27-31561

BEARING,(WITH SPACER)

26

208-27-31560

BEARING,(WITH SPACER)

27

208-27-31262

PIN

27

208-27-31550

PIN

28

01011-51620

BOLT

29

208-27-31570

SPACER

30

208-27-31720

SPACER

30

207-27-33350

SPACER

31

208-27-31164

GEAR

31

208-27-31540

GEAR

32

208-27-31143

COVER

32

208-27-31590

COVER

33

07049-01215

PLUG

34

07040-13618

PLUG

34

07040-12414

PLUG

35

07002-03634

O-RING

35

07002-02434

O-RING

36

01011-52020

BOLT

36

01011-52010

BOLT

37

01643-32060

WASHER

37

01643-32060

WASHER

38

208-27-31240

COUPLING

39

07000-05240

O-RING

40

01010-52485

BOLT

41

01643-32460

WASHER

42

01011-52000

BOLT

43

01643-32060

WASHER

13

208-27-31510

SPACER, 3.25MM

13

208-27-31450

SPACER, 3.35MM

13

208-27-31460

SPACER, 3.40MM

13

208-27-31470

SPACER, 3.45MM

13

208-27-31480

SPACER, 3.50MM

13

208-27-31490

SPACER, 3.55MM

13

208-27-51350

SPACER, 3.25MM

13

208-27-51290

SPACER, 3.35MM

13

208-27-51310

SPACER, 3.40MM

13

208-27-51320

SPACER, 3.45MM

13

208-27-51330

SPACER, 3.50MM

13

208-27-51340

SPACER, 3.55MM
