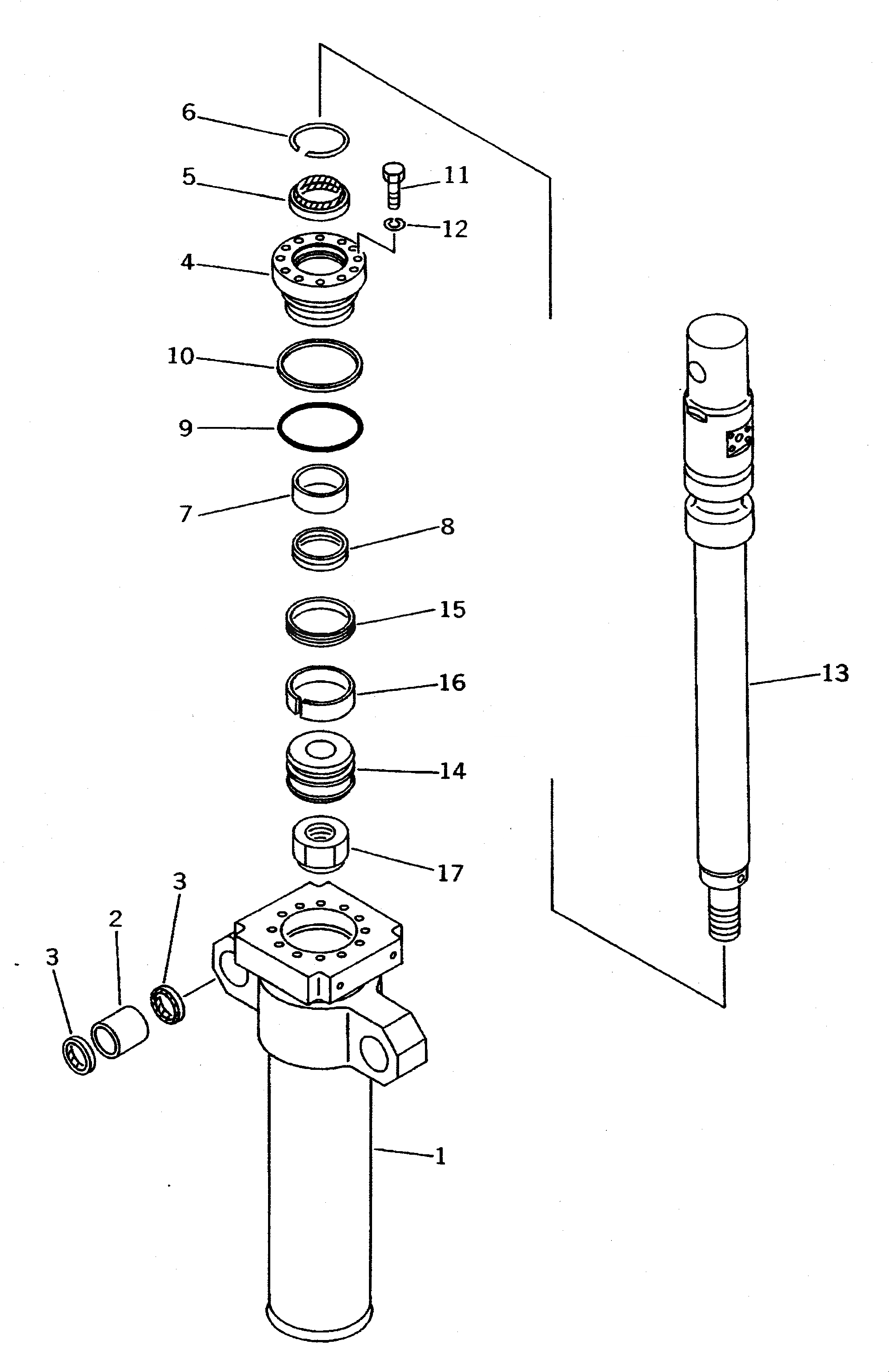

Запчасти Komatsu PC400-3 ГРЕЙФЕРН. ЦИЛИНДР (DIGGING ТИП) РАБОЧЕЕ ОБОРУДОВАНИЕ

|$0

208-63-92100

CLAMSHELL

1

208-63-92140

CYLINDER

2

07143-10706

BUSHING

3

07145-00070

SEAL,DUST

4

707-27-14810

HEAD,CYLINDER

5

176-63-56170

SEAL,DUST

6

707-75-10010

RING,SNAP

7

07177-01040

BUSHING

8

707-51-10211

PACKING,ROD

9

07000-12135

O-RING

10

07146-02136

RING,BACK-UP

11

01010-51870

BOLT

12

01602-21854

WASHER,SPRING

13

208-63-92120

ROD

14

707-36-14460

PISTON

15

707-44-14080

RING,PISTON

16

07155-01435

RING,WEAR

17

07165-16870

NUT
