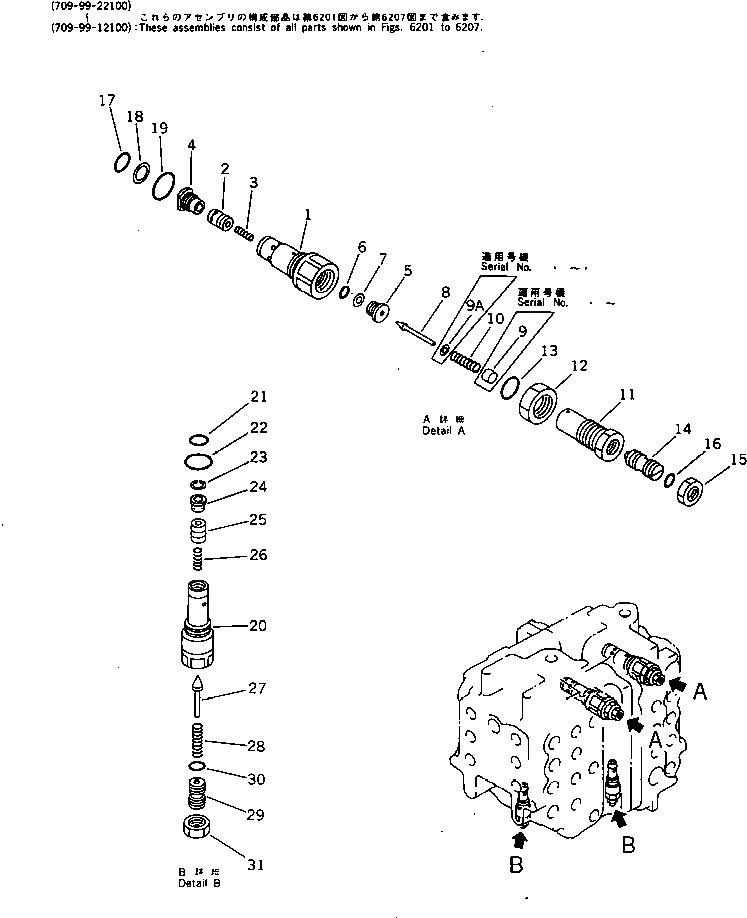

Запчасти Komatsu PC400-3 УПРАВЛЯЮЩ. КЛАПАН (/7) (ДЛЯ ПОГРУЗ.) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

709-99-22300

CONTROL VALVE ASS'Y

|$1

709-99-12309

CONTROL VALVE ASS'Y

|$2

709-99-12308

CONTROL VALVE ASS'Y

|$3

709-99-12307

CONTROL VALVE ASS'Y

|$4

709-99-12306

CONTROL VALVE ASS'Y

|$5

709-99-12304

CONTROL VALVE ASS'Y

|$6

709-99-12303

CONTROL VALVE ASS'Y

|$7

709-99-12302

CONTROL VALVE ASS'Y

|$8

709-99-12301

CONTROL VALVE ASS'Y

|$9

709-99-12300

CONTROL VALVE ASS'Y

|$10

709-90-51100

RELIEF VALVE ASS'Y

1

PLUG

2

VALVE

3

700-90-51140

SPRING

4

709-90-51250

PLUG

5

709-90-51160

SEAT

6

07000-22016

O-RING

7

07001-02016

RING,BACK-UP

8

700-80-61190

POPPET

9

709-90-51260

RETAINER

9A

700-80-51240

SPACER

10

709-20-51231

SPRING

10

720-68-15560

SPRING

11

HOLDER

12

700-90-51190

NUT

13

07002-03034

O-RING

14

709-90-51150

SCREW

15

709-90-51170

NUT

16

07000-02011

O-RING

17

700-93-11320

O-RING

18

700-93-11330

RING,BACK-UP

19

07002-03634

O-RING

|$32

709-90-59203

RELIEF VALVE ASS'Y

|$33

709-90-59202

RELIEF VALVE ASS'Y

|$34

709-90-59201

RELIEF VALVE ASS'Y

|$35

709-90-59200

RELIEF VALVE ASS'Y

20

SLEEVE

20

SLEEVE

20

SLEEVE

20

SLEEVE

21

700-22-11410

O-RING

22

07002-02434

O-RING

23

700-20-51550

RING,SNAP

24

700-20-51540

RETAINER

25

VALVE

25

VALVE

26

709-70-51210

SPRING

26

709-70-51610

SPRING

27

709-70-51420

POPPET

27

709-70-51220

POPPET

27

700-80-61190

POPPET

28

709-20-51580

SPRING

28

709-70-51310

SPRING

28

700-20-51580

SPRING

29

700-20-51340

SCREW

29

709-70-51320

SCREW

29

700-20-51340

SCREW

29

700-20-51370

SCREW

30

07000-02011

O-RING

31

01582-11411

NUT
