Запчасти Komatsu PC400-3 УПРАВЛЯЮЩ. КЛАПАН (/7) (ДЛЯ ПОГРУЗ.) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

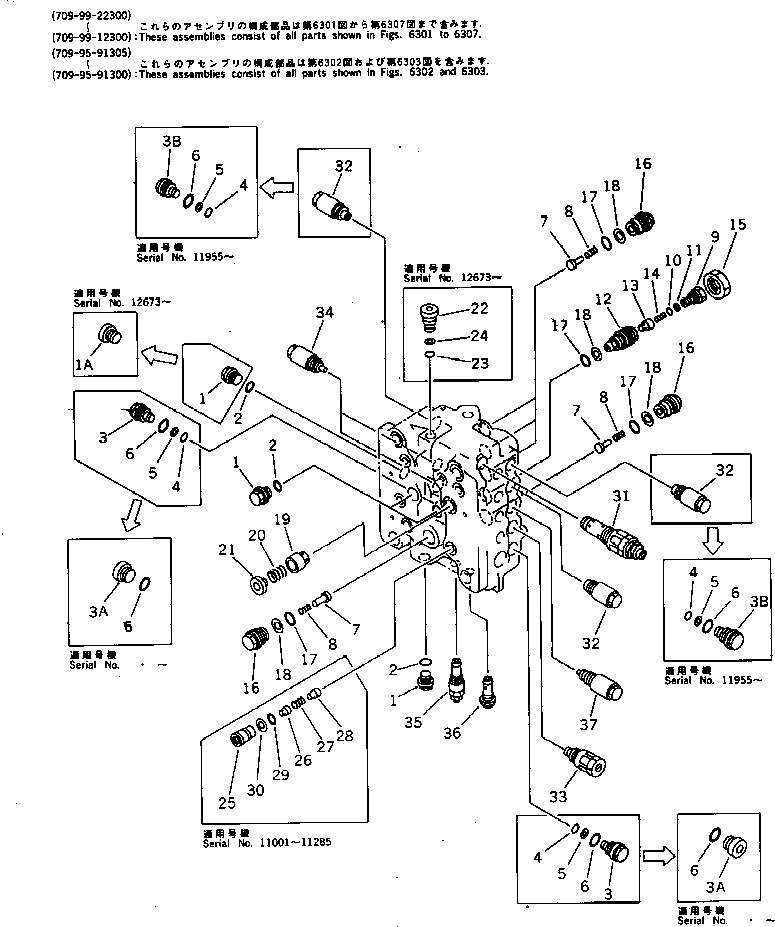

Схема запчастей Komatsu PC400-3 - УПРАВЛЯЮЩ. КЛАПАН (/7) (ДЛЯ ПОГРУЗ.) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

Артикул

Название

Примечание

Количество

|$0

709-99-22300

CONTROL VALVE ASS'Y

|$1

709-99-12309

CONTROL VALVE ASS'Y

|$2

709-99-12308

CONTROL VALVE ASS'Y

|$3

709-99-12307

CONTROL VALVE ASS'Y

|$4

709-99-12306

CONTROL VALVE ASS'Y

|$5

709-99-12304

CONTROL VALVE ASS'Y

|$6

709-99-12303

CONTROL VALVE ASS'Y

|$7

709-99-12302

CONTROL VALVE ASS'Y

|$8

709-99-12301

CONTROL VALVE ASS'Y

|$9

709-99-12300

CONTROL VALVE ASS'Y

|$10

709-95-91305

VALVE ASS'Y

|$11

709-95-91304

VALVE ASS'Y

|$12

709-95-91302

VALVE ASS'Y

|$13

709-95-00031

VALVE ASS'Y

|$14

709-95-91301

VALVE ASS'Y

|$15

709-95-91300

VALVE ASS'Y

1

700-22-11370

PLUG

1

700-22-11370

PLUG

1A

709-95-91150

PLUG

2

07002-12434

O-RING

3

700-94-11260

PLUG

3A

07040-13618

PLUG

3B

700-94-11260

PLUG

4

07000-12018

O-RING

4

07000-12018

O-RING

5

07001-02018

RING

5

07001-02018

RING,BACK-UP

6

07002-03634

O-RING

6

07002-03634

O-RING

7

709-94-92810

VALVE

7

709-94-91740

VALVE,CHECK

8

709-94-91750

SPRING

9

709-74-92450

PLUG

10

07000-12010

O-RING

11

07001-02010

RING,BACK-UP

12

709-94-91770

PLUG

13

706-73-70140

VALVE,CHECK

14

706-73-70150

SPRING

15

709-74-92460

NUT

16

709-74-92821

PLUG

16

709-74-92820

PLUG

16

709-75-92230

PLUG

17

700-93-11320

O-RING

18

700-93-11330

RING,BACK-UP

19

709-94-91261

VALVE

19

709-94-91260

VALVE

20

709-94-91270

SPRING

21

709-94-91280

SEAT

22

709-74-91850

PLUG

23

07000-12018

O-RING

24

07001-02018

RING

|$51

709-90-91400

CHECK VALVE ASS'Y

25

SLEEVE

26

VALVE

27

709-90-91220

SPRING

28

709-90-91230

SEAT

29

700-80-61260

O-RING

30

700-80-61430

RING,BACK-UP

31

709-90-51100

RELIEF VALVE ASS'Y

32

700-90-74001

VALVE ASS'Y

32

700-90-74001

VALVE ASS'Y

33

709-90-62100

SAFETY VALVE ASS'Y

34

709-90-63201

VALVE ASS'Y

34

709-90-63200

VALVE ASS'Y

34

709-90-61200

VALVE ASS'Y

35

709-90-59203

RELIEF VALVE ASS'Y

35

709-90-59202

RELIEF VALVE ASS'Y

35

709-90-59201

RELIEF VALVE ASS'Y

35

709-90-59200

RELIEF VALVE ASS'Y

36

709-90-91300

ORIFICE ASS'Y

37

709-90-61302

VALVE ASS'Y

37

709-90-61301

VALVE ASS'Y

37

709-90-61300

VALVE ASS'Y

Выбрано товаров: 73
