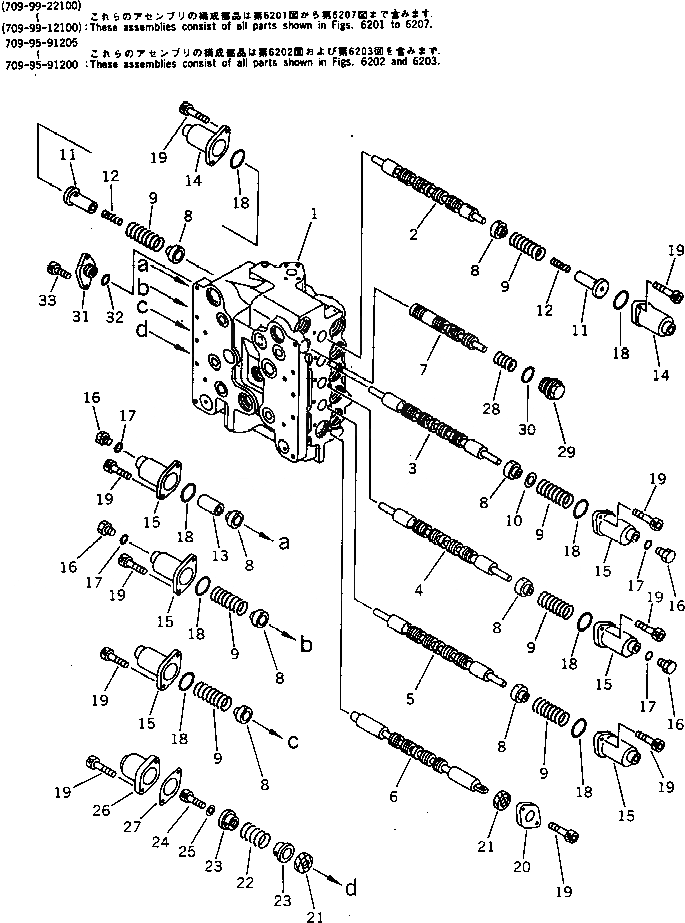

Запчасти Komatsu PC400-3 УПРАВЛЯЮЩ. КЛАПАН (/7) (ДЛЯ ЭКСКАВАТ.) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

709-99-22100

CONTROL VALVE ASS'Y

|$1

709-99-12109

CONTROL VALVE ASS'Y

|$2

709-99-12108

CONTROL VALVE ASS'Y

|$3

709-99-12107

CONTROL VALVE ASS'Y

|$4

709-99-12106

CONTROL VALVE ASS'Y

|$5

709-99-12104

CONTROL VALVE ASS'Y

|$6

709-99-12103

CONTROL VALVE ASS'Y

|$7

709-99-12102

CONTROL VALVE ASS'Y

|$8

709-99-12101

CONTROL VALVE ASS'Y

|$9

709-99-12100

CONTROL VALVE ASS'Y

|$10

709-95-91205

VALVE ASS'Y

|$11

709-95-91204

VALVE ASS'Y

|$12

709-95-91202

VALVE ASS'Y

|$13

709-95-00021

VALVE ASS'Y

|$14

709-95-91201

VALVE ASS'Y

|$15

709-95-91200

VALVE ASS'Y

1

BODY

1

BODY

1

BODY,VALVE

1

BODY,VALVE

2

SPOOL,SWING

3

SPOOL,BOOM HIGH

4

SPOOL,SERVICE

5

SPOOL,ARM

6

SPOOL,L.H. TRAVEL

7

SPOOL

8

709-94-91130

RETAINER

9

709-94-91120

SPRING

10

709-94-91760

SPACER, 1.0MM

11

709-94-91170

RETAINER

12

709-94-91180

SPRING

13

700-93-11361

SPACER

14

709-94-91720

CASE

15

709-94-91210

CASE

16

07040-12012

PLUG

16

701-30-63130

PLUG

17

07002-02034

O-RING

18

07430-71380

O-RING

19

01252-30820

BOLT

20

709-94-91460

PLATE

21

700-94-11710

SEAL

22

700-94-91910

SPRING

23

700-93-11870

RETAINER

24

01252-31016

BOLT

25

01643-31032

WASHER

26

700-93-11220

CASE

27

709-94-91470

PLATE

28

709-94-91160

SPRING

29

709-74-92230

PLUG

30

07002-03034

O-RING

31

709-94-91240

PLATE

32

700-13-31161

O-RING

33

01252-30820

BOLT
