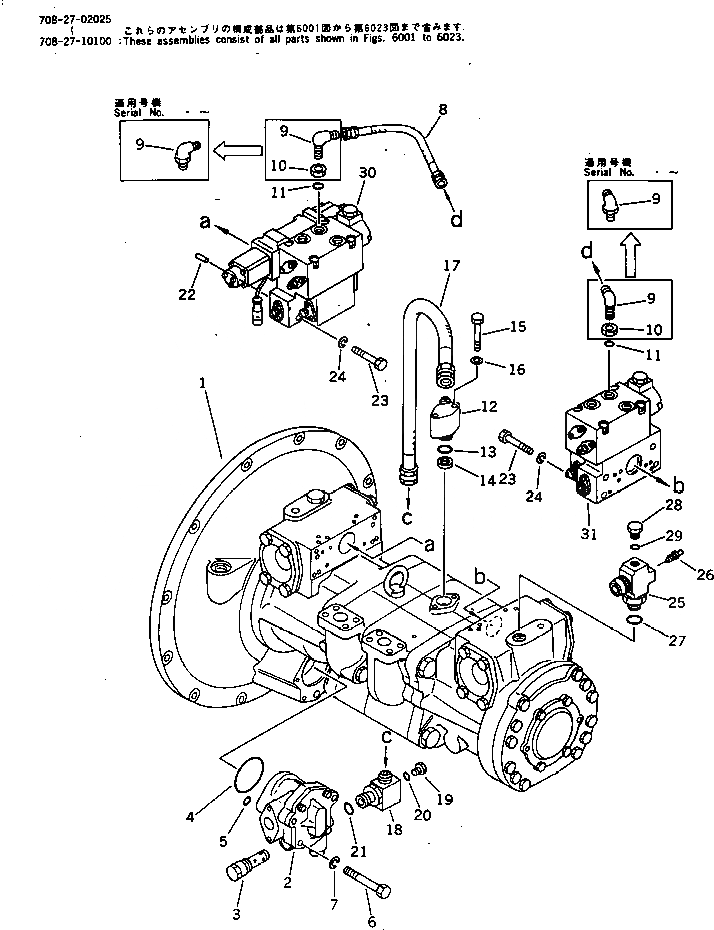

Запчасти Komatsu PC400-3 ГИДР. НАСОС. БЛОК (С -STAGE SELECTOR MODE OLSS) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|$0
708-27-02025
HYDRAULIC PUMP ASS'Y
|$1
708-27-02024
HYDRAULIC PUMP ASS'Y,(HPV 160+160)
|$2
708-27-02023
HYDRAULIC PUMP ASS'Y,(HPV 160+160)
|$3
708-27-02022
HYDRAULIC PUMP ASS'Y,(HPV 160+160)
|$4
708-27-02021
HYDRAULIC PUMP ASS'Y,(HPV 160+160)
|$5
708-27-02020
HYDRAULIC PUMP ASS'Y,(HPV 160+160)
|$6
708-27-01010
HYDRAULIC PUMP ASS'Y,(HPV 160+160)
|$7
708-27-10100
PUMP ASS'Y,(HPV 160+160)
1
708-27-01211
PUMP SUB ASS'Y
1
708-27-01210
PUMP SUB ASS'Y
1
708-27-11101
PUMP SUB ASS'Y
1
708-27-11100
PUMP SUB ASS'Y
2
704-23-30601
PUMP ASS'Y
2
704-23-30600
PUMP ASS'Y
3
708-23-14801
VALVE ASS'Y
3
708-27-14800
RELIEF VALVE ASS'Y
4
07000-02075
O-RING
5
07000-02020
O-RING
6
01011-51010
BOLT
7
01602-01030
WASHER,SPRING
8
07102-20203
HOSE
9
07235-10210
ELBOW
9
07232-20210
ELBOW
10
07239-11408
NUT
11
07002-01423
O-RING
12
708-27-14210
ELBOW
13
07000-02021
O-RING
14
720-68-15240
FILTER
15
01010-50855
BOLT
16
01643-30823
WASHER
17
07102-20505
HOSE
18
207-62-33710
TEE
19
07040-11409
PLUG
20
07002-01423
O-RING
21
07002-02434
O-RING
22
04020-00616
PIN,DOWEL
23
708-25-19130
BOLT
24
01602-00825
WASHER,SPRING
25
207-62-31770
TEE
26
20B-27-11210
BLEEDER
27
07002-02434
O-RING
28
07040-11409
PLUG
29
07002-01423
O-RING
30
708-27-07112
SERVO VALVE ASS'Y,FRONT
30
708-27-07111
SERVO VALVE ASS'Y,FRONT
30
708-27-07110
SERVO VALVE ASS'Y,FRONT
30
708-27-15100
SERVO VALVE ASS'Y,FRONT
31
708-27-07211
SERVO VALVE ASS'Y,REAR
31
708-27-07210
SERVO VALVE ASS'Y,REAR
31
708-27-16100
SERVO VALVE ASS'Y,REAR
Выбрано товаров: 50
