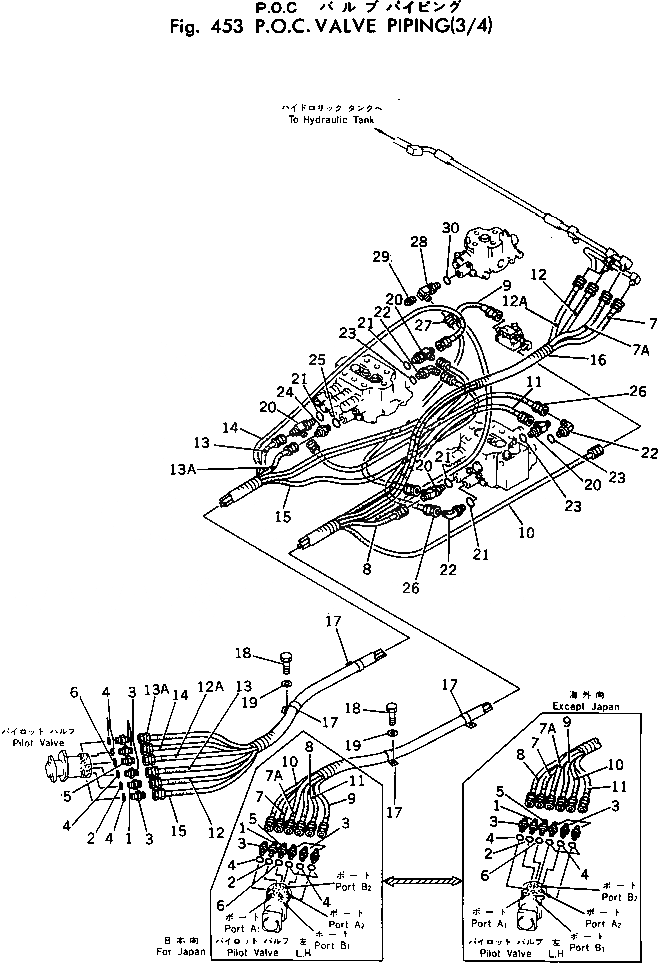

Запчасти Komatsu PC400-1 P.O.C. КЛАПАН ТРУБЫ (/) ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯS

1

205-62-55270

NIPPLE

2

07002-01423

O-RING

3

07230-10210

UNION

4

07002-01423

O-RING

5

07230-10315

UNION

6

07002-02034

O-RING

|7

208-62-17172

HOSE ASS'Y

|7

208-62-17171

HOSE ASS'Y

7

208-62-17111

HOSE,(RED)

|7

208-62-17110

HOSE,(RED)

7A

208-62-17111

HOSE,(BLUE)

|7A

208-62-17110

HOSE,(BLUE)

8

208-62-17121

HOSE,(GREEN)

|8

208-62-17120

HOSE,(GREEN)

9

207-62-16871

HOSE,(YELLOW)

|9

208-62-17530

HOSE,(YELLOW)

10

208-62-17541

HOSE,(WHITE)

|10

208-62-17540

HOSE,(WHITE)

11

205-62-55650

HOSE,(BROWN)

|12

208-62-17162

HOSE ASS'Y

|12

208-62-17161

HOSE ASS'Y

12

208-62-17111

HOSE,(RED)

|12

208-62-17110

HOSE,(RED)

12A

208-62-17111

HOSE,(BLUE)

|12A

208-62-17110

HOSE,(BLUE)

13

208-62-17121

HOSE,(YELLOW)

|13

208-62-17120

HOSE,(YELLOW)

13A

208-62-17121

HOSE,(BROWN)

|13A

208-62-17120

HOSE,(BROWN)

14

207-62-16871

HOSE,(WHITE)

|14

208-62-17530

HOSE,(WHITE)

15

205-62-55650

HOSE,(GREEN)

16

208-62-18360

COVER

17

176-911-1690

CLIP

18

01010-51025

BOLT

19

01643-31032

WASHER

20

208-62-17550

TEE

21

07002-01423

O-RING

22

07235-10210

ELBOW

23

07002-01423

O-RING

24

07230-10210

UNION

25

07002-01423

O-RING

26

208-62-17130

HOSE

27

207-62-16931

HOSE

28

208-62-17560

ELBOW

29

07042-30108

PLUG

30

07002-01423

O-RING
