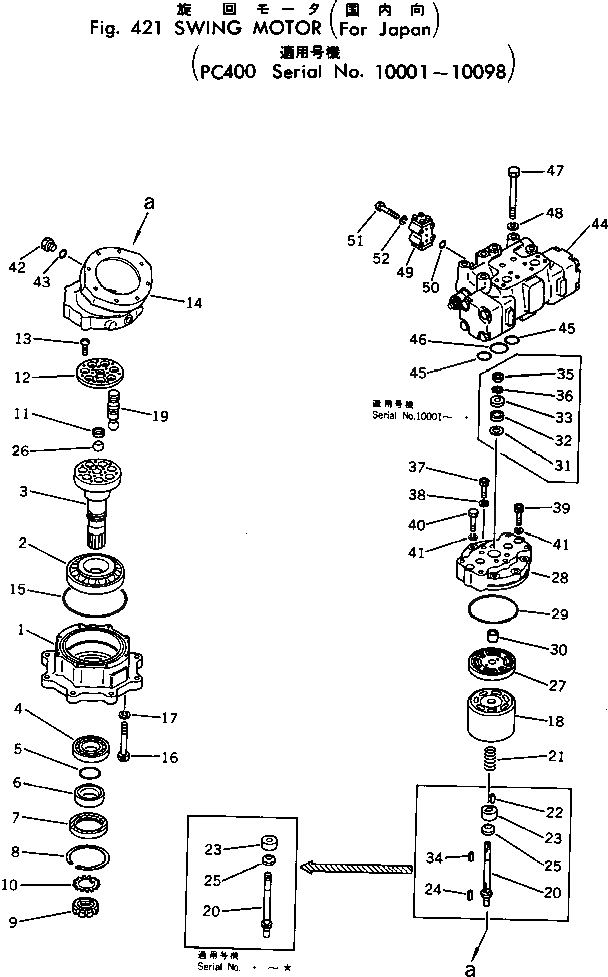

Запчасти Komatsu PC400-1 МОТОР ПОВОРОТА (ДЛЯ ЯПОН.)(№-98) ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯS

|1

706-77-02702

MOTOR ASS'Y

|1

706-77-02701

MOTOR ASS'Y

|1

706-77-02700

MOTOR ASS'Y

|1

706-77-41001

MOTOR ASS'Y

|1

706-77-41000

MOTOR ASS'Y

1

COVER

2

BEARING

3

SHAFT

4

BEARING

5

O-RING

6

RING

7

SEAL,OIL

|7

SEAL,OIL

8

RING,SNAP

|8

RING,SNAP

9

NUT

10

WASHER

11

HOLDER

12

RETAINER

13

SCREW

14

CASE

15

O-RING

16

BOLT

17

WASHER

18

BLOCK

|18

BLOCK

19

PISTON SUB ASS'Y

20

SHAFT

|20

SHAFT

21

SPRING

|21

SPRING

22

PIN

23

PLATE

|23

PLATE

24

KEY

25

SEAT

25

SEAT

26

BALL

|26

BALL

27

PLATE

|27

PLATE

28

COVER

|28

COVER

29

O-RING

30

BEARING

31

PLATE

32

BEARING

33

HOLDER

34

KEY

35

NUT

36

LOCK

37

BOLT

38

GASKET

39

BOLT

40

BOLT

41

WASHER,SPRING

42

07040-12012

PLUG

43

07002-02034

O-RING

44

706-77-71502

BRAKE VALVE ASS'Y

|44

706-77-71501

BRAKE VALVE ASS'Y

|44

706-77-71500

BRAKE VALVE ASS'Y

45

07000-13035

O-RING

46

07000-02055

O-RING

47

01011-51455

BOLT

48

01602-21442

WASHER

49

706-77-77200

SHUTTLE VALVE A.

|49

706-77-77100

SHUTTLE VALVE A.

50

07000-12011

O-RING

51

01010-50855

BOLT

52

01602-20825

WASHER,SPRING
