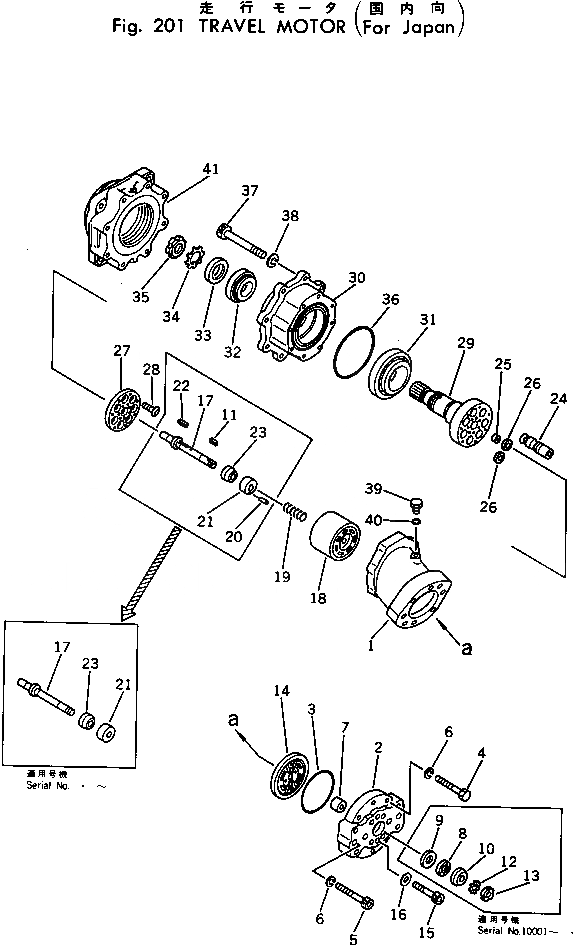

Запчасти Komatsu PC400-1 МОТОР ХОДА (ДЛЯ ЯПОН.) ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

|1

706-77-00800

MOTOR ASS'Y

|1

706-77-42001

MOTOR ASS'Y

|1

706-77-42000

MOTOR ASS'Y

1

CASE

2

COVER

|2

COVER

3

O-RING

4

BOLT

5

BOLT

6

WASHER

7

BEARING

8

BEARING

9

PLATE

10

HOLDER

11

KEY

12

LOCK

13

NUT

14

PLATE

|14

PLATE

15

BOLT

16

GASKET

17

SHAFT

|17

SHAFT

18

BLOCK

|18

BLOCK

19

SPRING

|19

SPRING

20

PIN,DOWEL

21

PLATE

|21

PLATE

22

KEY

23

SEAT

|23

SEAT

24

PISTON SUB ASS'Y

25

BALL

|25

BALL

26

HOLDER

27

RETAINER

28

SCREW

29

SHAFT

30

COVER

31

BEARING

32

BEARING

33

RING

34

WASHER

35

NUT

36

O-RING

37

BOLT

38

WASHER

39

07040-12012

PLUG

40

07002-02034

O-RING

41

706-77-90000

PARKING BRAKE ASS'Y
