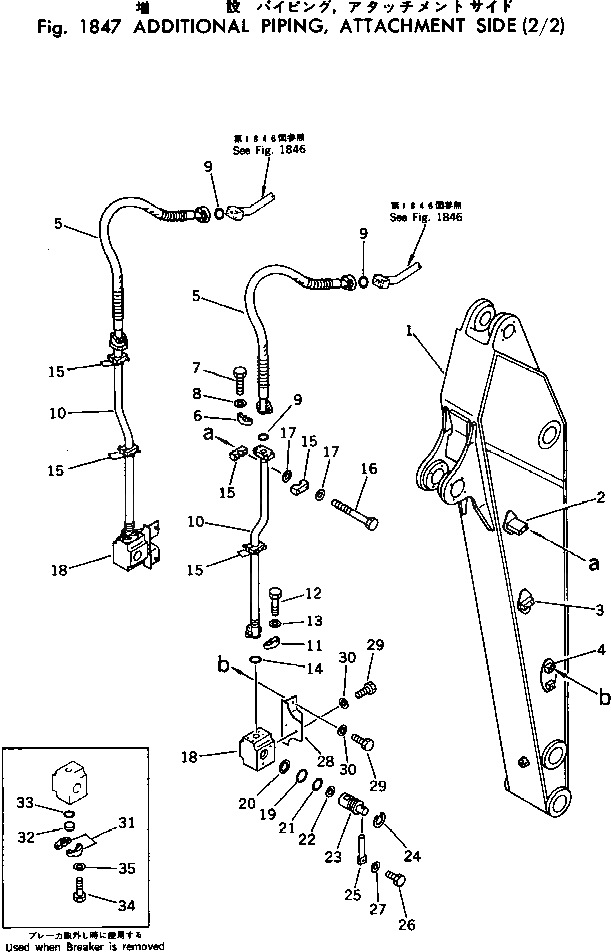

Запчасти Komatsu PC400-1 ДОПОЛНИТ.ITIONEL ТРУБЫ¤ НАВЕСН. ОБОРУД (/) ОПЦИОННЫЕ КОМПОНЕНТЫ (СПЕЦ. APPLICATION ЧАСТИ)

1

208-970-1160

ARM

2

208-936-1770

BRACKET (WELDED)

3

205-970-4371

BRACKET (WELDED)

4

205-970-6131

BRACKET (WELDED)

5

07127-21023

HOSE

6

07371-31049

FLANGE,SPLIT

7

07372-21035

BOLT

8

01643-51032

WASHER

9

07000-13032

O-RING

10

208-970-1140

TUBE

11

07371-31049

FLANGE,SPLIT

12

07372-21030

BOLT

13

01643-51032

WASHER

14

07000-13032

O-RING

15

205-970-2232

CLAMP

16

01010-51285

BOLT

17

01643-31232

WASHER

18

205-970-4260

BODY

19

07000-13048

O-RING

20

07001-03048

RING,BACK-UP

21

07000-13042

O-RING

22

07001-03042

RING,BACK-UP

23

205-970-4270

ROTOR

24

04065-05220

RING,SNAP

25

202-970-2210

PIN

26

01010-51230

BOLT

27

01643-31232

WASHER

28

205-970-6141

BRACKET

29

01010-51635

BOLT

30

01643-31645

WASHER

31

07371-31049

FLANGE,SPLIT

32

07378-11000

HEAD

33

07000-13032

O-RING

34

07372-21030

BOLT

35

01643-51032

WASHER
