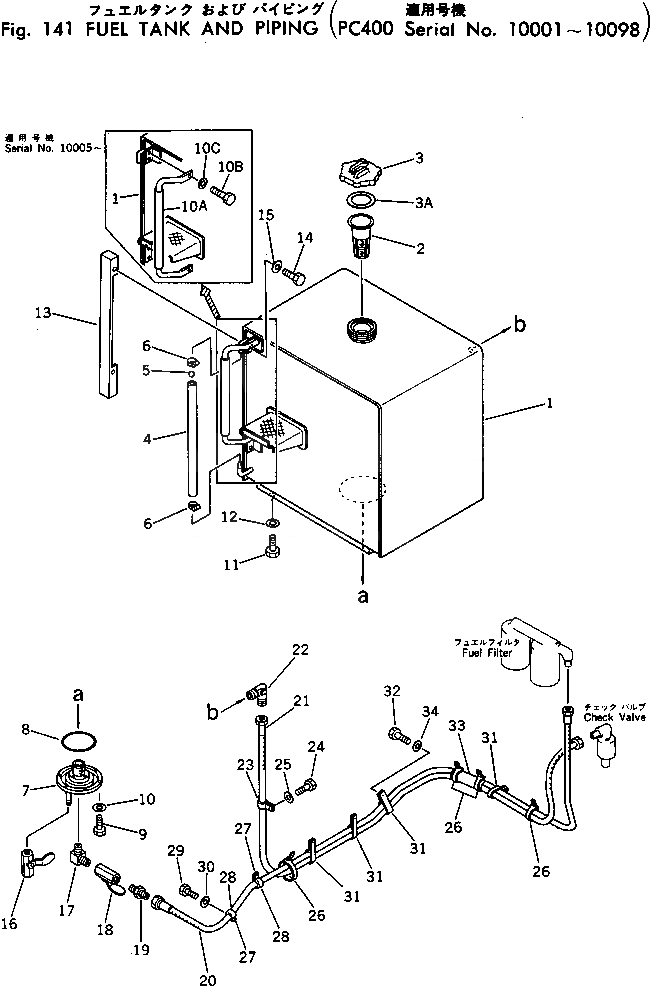

Запчасти Komatsu PC400-1 ТОПЛ. БАК И ТОПЛИВОПРОВОД(№-98) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

|1

208-04-00013

FUEL TANK ASS'Y

|1

208-04-00012

FUEL TANK ASS'Y

|1

208-04-00011

FUEL TANK ASS'Y

|1

208-04-00010

FUEL TANK ASS'Y

1

TANK,FUEL

|1

TANK,FUEL

|1

TANK,FUEL

2

07056-18416

STRAINER

3

07050-21200

CAP

3A

07050-21202

GASKET

4

208-04-11190

TUBE

5

201-04-21160

BALL

6

07281-10197

CLAMP

7

208-04-11150

FLANGE

8

07000-05150

O-RING

9

01010-31025

BOLT

10

01643-31032

WASHER

10A

208-04-11240

HANDLE

10B

01010-31230

BOLT

10C

01643-31232

WASHER

11

01010-31630

BOLT

12

01643-31645

WASHER

13

208-04-11160

COVER

14

01010-31225

BOLT

15

01643-31232

WASHER

16

07700-40240

VALVE

17

195-04-11450

ELBOW

18

07700-40460

VALVE

19

154-04-12680

NIPPLE

20

02750-24325

HOSE

21

02750-23300

HOSE

22

154-04-12640

ELBOW

23

08036-01814

CLIP

24

01010-31220

BOLT

25

01643-31232

WASHER

26

08034-00536

BAND

27

08036-02514

CLIP

|27

154-04-12420

CLAMP

28

154-04-12320

CLAMP

29

01010-31220

BOLT

30

01643-31232

WASHER

31

145-01-42120

CLIP

32

01010-31220

BOLT

33

205-62-53780

COVER

34

01643-31232

WASHER
