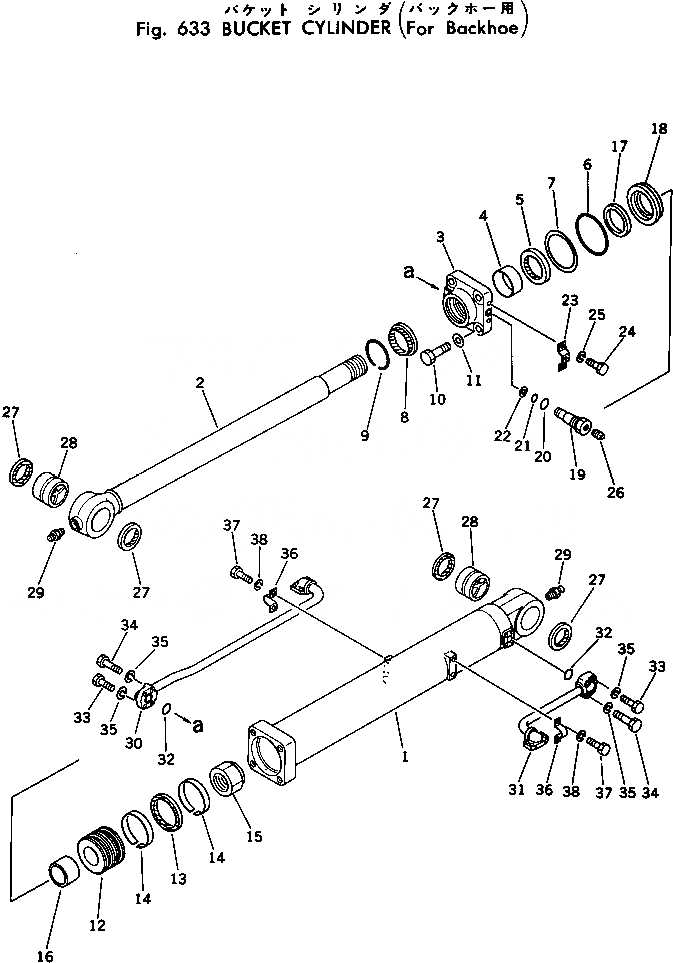

Запчасти Komatsu PC400-1 ЦИЛИНДР КОВША (ДЛЯ ЭКСКАВАТ.) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

208-63-76100

CYLINDER ASS'Y

1

208-63-76140

CYLINDER

2

208-63-76120

ROD,PISTON

3

707-28-18010

HEAD

4

07177-01135

BUSHING

5

707-51-11110

PACKING

6

07000-15180

O-RING

7

07001-05180

RING

8

198-63-94170

SEAL,DUST

9

07179-00135

RING,SNAP

10

01011-53000

BOLT

11

01643-33080

WASHER

12

707-36-18270

PISTON

13

707-44-18080

RING,PISTON

14

07156-01822

RING,WEAR

15

07165-18583

NUT

16

707-71-51210

PLUNGER

17

707-71-11210

RING

18

707-71-31210

COLLAR

19

208-63-56160

CAPILLARY

20

07002-11823

O-RING

21

07000-11009

O-RING

22

07001-01009

RING,BACK-UP

23

208-63-56170

PLATE

24

01010-51425

BOLT

25

01602-21442

WASHER,SPRING

26

07042-20108

PLUG

27

208-70-12231

SEAL,DUST

28

208-63-76290

BUSHING

29

07020-00000

FITTING,GREASE

30

208-62-15341

TUBE

31

208-62-15331

TUBE

32

07000-13035

O-RING

33

01010-51055

BOLT

34

01010-51060

BOLT

35

01602-21030

WASHER,SPRING

36

07282-03411

CLAMP

37

01010-51020

BOLT

38

01602-21030

WASHER,SPRING
