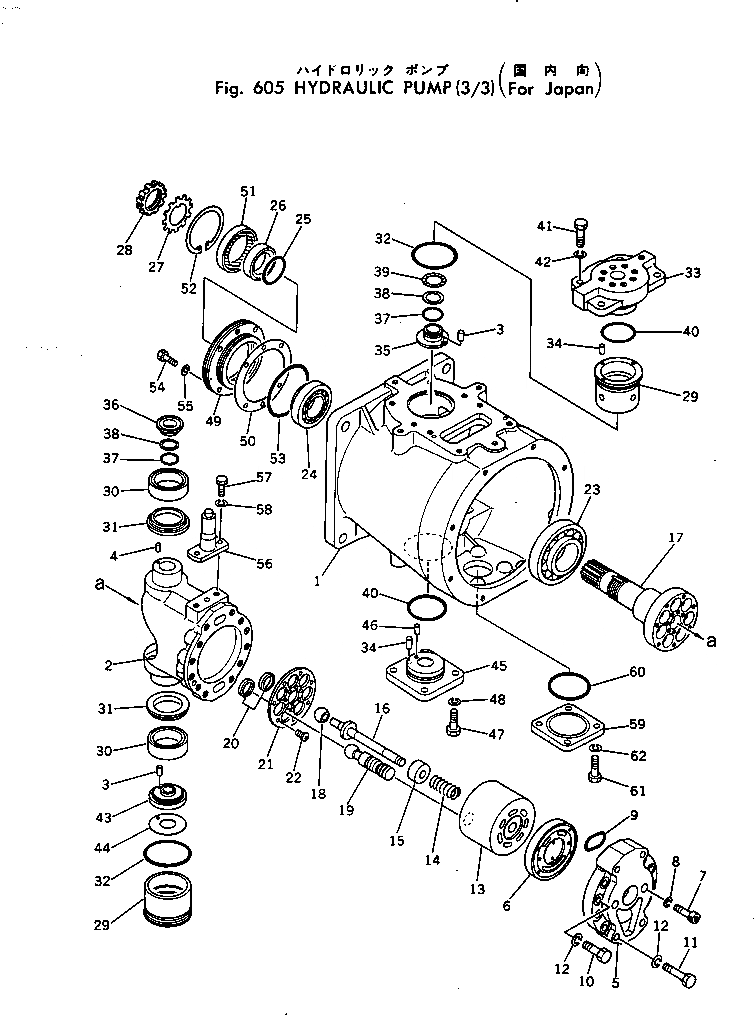

Запчасти Komatsu PC400-1 ГИДР. НАСОС. (/) (ДЛЯ ЯПОН.) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

706-46-20302

HYDRAULIC PUMP ASS'Y

|1

706-46-20301

HYDRAULIC PUMP ASS'Y

|1

706-46-20300

HYDRAULIC PUMP ASS'Y

|1

706-46-20402

HYDRAULIC PUMP ASS'Y

|1

706-46-20401

HYDRAULIC PUMP ASS'Y

|1

706-46-20400

HYDRAULIC PUMP ASS'Y

|1

706-46-41001

PUMP ASS'Y

|1

706-46-41000

PUMP ASS'Y

1

CASE

2

CASE

|2

CASING

3

PIN,DOWEL

4

PIN,DOWEL

5

COVER ASS'Y

6

PLATE

7

BOLT

8

WASHER,SPRING

9

O-RING

10

BOLT

11

BOLT

|11

BOLT

12

WASHER,SPRING

13

BLOCK

14

SPRING

15

RING

16

SHAFT

17

SHAFT

18

BALL

19

PISTON SUB ASS'Y

20

HOLDER

21

RETAINER

22

SCREW

23

BEARING

24

BEARING

25

O-RING

26

RING

27

WASHER

28

NUT

29

SLEEVE

30

BEARING

|30

BEARING

31

SPACER

32

O-RING

33

BOSS

34

PIN

35

RING,SEAL

36

RING,SEAL

37

O-RING

38

RING,BACK-UP

39

WASHER

40

O-RING

41

BOLT

42

WASHER,SPRING

43

RING

44

WASHER

|44

706-66-40631

WASHER

45

BOSS

|45

706-46-40050

BOSS

46

PIN

|46

706-66-40281

PIN

47

BOLT

48

WASHER,SPRING

49

BOSS

50

GASKET

51

SEAL,OIL

52

RING,SNAP

53

O-RING

54

BOLT

55

WASHER

56

PIN

57

BOLT

58

WASHER,SPRING

59

COVER

60

O-RING

61

BOLT

62

WASHER,SPRING
