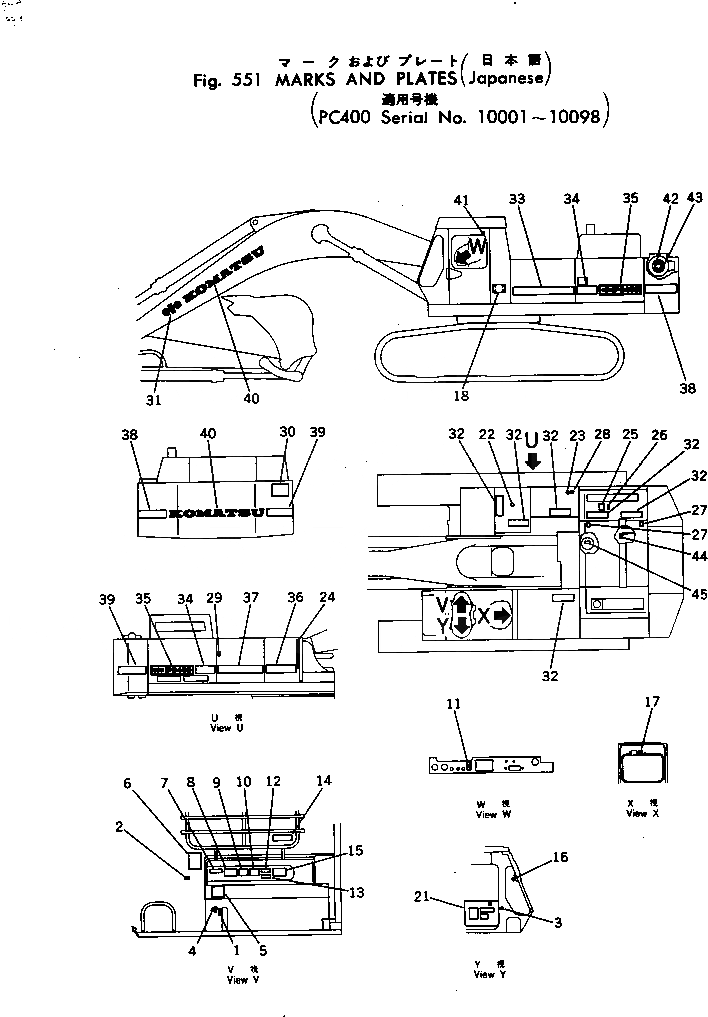

Запчасти Komatsu PC400-1 МАРКИРОВКА (ЯПОН.)(№-98) ОСНОВНАЯ РАМА И КАБИНА

1

09685-00002

PLATE¤ OPERATING,SWING LOCK LEVER

2

09685-00003

PLATE¤ OPERATING,LEVER LOCK

3

09685-00004

PLATE¤ OPERATING,LEVER LOCK

4

175-98-31150

PLATE¤ OPERATING,MAIN SWITCH

5

208-00-11120

PLATE¤ DATA

6

09659-20100

PLATE¤ SAFETY,ACCUMULATOR

7

205-00-61230

PLATE¤ CAUTION,AIR GAUGE

8

207-00-13230

PLATE¤ CAUTION,ENGINE STOP

9

205-00-63250

PLATE¤ CAUTION,ENGINE OIL

10

09173-00100

PLATE¤ SAFETY

11

09683-01060

PLATE¤ OPERATING,STARTING SWITCH

12

09651-00100

PLATE¤ SAFETY,BEFORE OPERATING

13

09131-00100

PLATE¤ SAFETY,SWING LOCK LEVER

14

205-00-52230

PLATE¤ SAFETY,WINDOW

15

205-00-63540

PLATE¤ CAUTION,AIR BLEED

16

205-00-52192

PLATE¤ CAUTION

17

205-00-63230

PLATE¤ CAUTION,FRONT DOOR

18

09602-01643

PLATE¤ NAME,(LIMITED SUPPLY)

|18

01220-60408

SCREW

21

208-54-11280

COVER

22

09669-00002

PLATE¤ CAUTION,FUEL

23

09669-00003

PLATE¤ CAUTION,HYDRAULIC OIL

24

208-00-11240

PLATE,FUEL GAUGE

25

09650-01103

PLATE¤ INSTRUCTION,RADIATOR

26

09668-00100

PLATE¤ SAFETY,RADIATOR CAP

27

09667-00100

PLATE¤ SAFETY,ENGINE COVER

28

09653-00100

PLATE¤ SAFETY,HYDRAULIC TANK CAP

29

203-00-31120

PLATE¤ INSTRUCTION,LEVEL GAUGE

30

09133-00100

PLATE¤ SAFETY,KEEP OUT OF TURNING AREA

31

207-00-13121

PLATE¤ MARK

32

154-54-23260

SEAT

33

208-00-11440

STRIPE

34

208-00-11430

STRIPE

35

208-00-11470

PLATE¤ MARK

36

208-00-11410

STRIPE

37

208-00-11420

STRIPE

38

208-00-11450

STRIPE

39

208-00-11450

STRIPE

|39

208-00-11460

STRIPE

40

207-00-13131

PLATE¤ MARK

41

205-00-63770

PLATE

42

09638-50305

PLATE¤ CAUTION,AIR CLEANER

43

09639-00305

PLATE¤ INSTRUCTION,AIR CLEANER

44

08670-00635

INDICATOR,DUST

45

09633-00125

PLATE¤ INSTRUCTION,FILTER
