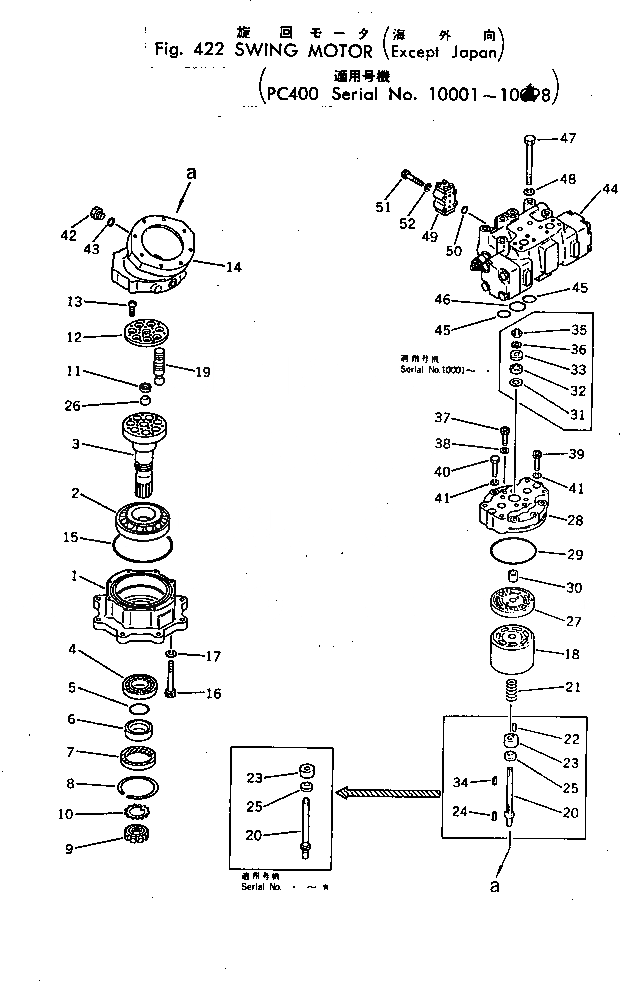

Запчасти Komatsu PC400-1 МОТОР ПОВОРОТА (КРОМЕ ЯПОН.)(№-98) ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯS

|$0

706-77-02702

MOTOR ASS'Y

|$1

706-77-02701

MOTOR ASS'Y

|$2

706-77-02700

MOTOR ASS'Y

|$3

706-77-41001

MOTOR ASS'Y

|$4

706-77-41000

MOTOR ASS'Y

1

COVER

2

BEARING (KIT)

3

SHAFT (KIT)

4

BEARING

5

O-RING (KIT)

6

RING

7

SEAL,OIL

7

SEAL,OIL (KIT)

8

RING,SNAP

8

RING,SNAP

9

NUT

10

WASHER (KIT)

11

HOLDER (KIT)

12

RETAINER (KIT)

13

SCREW (KIT)

14

CASE

15

O-RING (KIT)

16

BOLT

17

WASHER

18

BLOCK (KIT)

18

BLOCK

19

PISTON SUB ASS'Y (KIT)

20

SHAFT (KIT)

20

SHAFT

21

SPRING (KIT)

21

SPRING

22

PIN

23

PLATE (KIT)

23

PLATE

24

KEY

25

SEAT (KIT)

25

SEAT

26

BALL (KIT)

26

BALL

27

PLATE

27

PLATE

28

COVER

28

COVER

29

O-RING (KIT)

30

BEARING

31

PLATE

32

BEARING

33

HOLDER

34

KEY

35

NUT

36

LOCK

37

BOLT (KIT)

38

GASKET (KIT)

39

BOLT

40

BOLT

41

WASHER

42

07040-12012

PLUG

43

07002-02034

O-RING

44

706-77-71502

BRAKE VALVE ASS'Y

44

706-77-71500

BRAKE VALVE ASS'Y

44

706-77-71501

BRAKE VALVE ASS'Y

45

07000-13035

O-RING

46

07000-02055

O-RING

47

01011-51455

BOLT

48

01602-21442

WASHER,SPRING

49

706-77-77200

SHUTTLE VALVE A.

49

706-77-77100

SHUTTLE VALVE A.

50

07000-12011

O-RING

51

01010-50855

BOLT

52

01602-20825

WASHER

1K

706-98-05010

DRIVE SHAFT KIT

2

BEARING

3

SHAFT

5

O-RING

7

SEAL

10

WASHER

11

HOLDER

12

RETAINER

13

SCREW

15

O-RING

18

BLOCK

19

PISTON SUB ASS'Y

20

SHAFT

21

SPRING

23

PLATE

25

SEAT

26

BALL

29

O-RING

37

BOLT

38

GASKET
