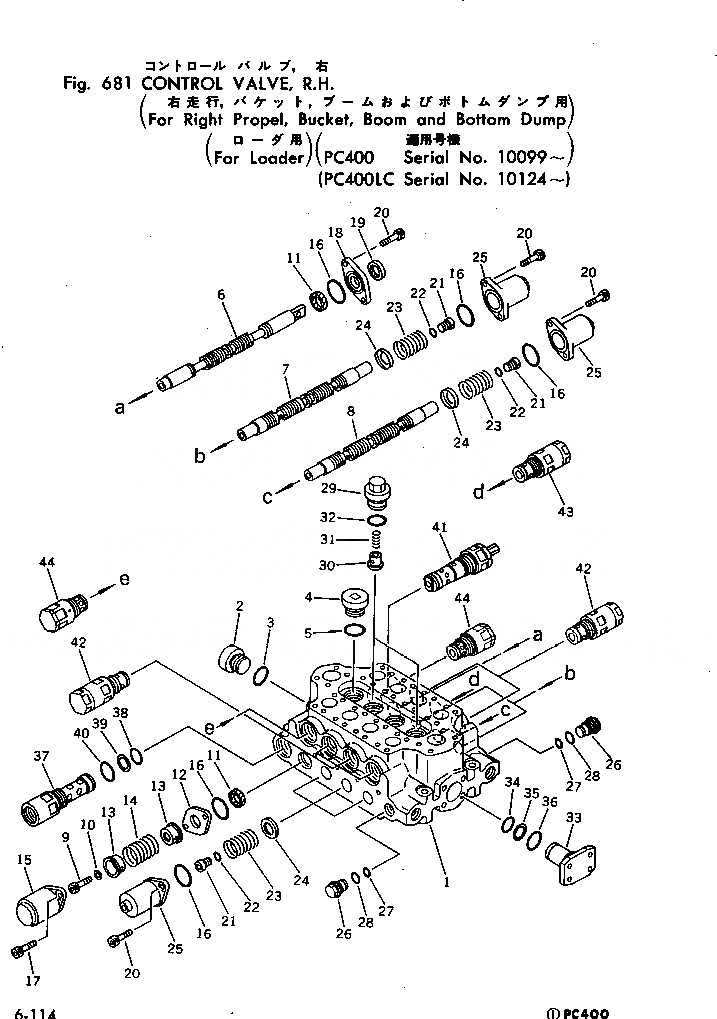

Запчасти Komatsu PC400-1 УПРАВЛЯЮЩ. КЛАПАН¤ПРАВ. (ДЛЯ ПРАВ. ХОД¤ КОВШ¤ B.A.B.D.) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

700-94-37000

CONTROL VALVE ASS'Y

1

BODY

2

07040-13618

PLUG

3

07002-13634

O-RING

4

700-93-11380

PLUG

5

07002-13634

O-RING

6

SPOOL

7

SPOOL

8

SPOOL

9

01252-31016

BOLT

10

01643-31032

WASHER

11

700-93-11140

U-PACKING

12

700-93-11180

PLATE

13

700-93-11870

RETAINER

14

700-93-11890

SPRING

15

700-93-11220

CASE

16

07430-71380

O-RING

17

01252-30825

BOLT

18

700-93-11161

PLATE

19

700-93-11150

SEAL,DUST

20

01252-30820

BOLT

21

700-93-11230

PLUG

22

07002-11423

O-RING

23

700-93-11371

SPRING

24

700-93-12380

RETAINER

25

700-93-12390

CASE

26

700-22-11360

PLUG

27

07000-02014

O-RING

28

07002-02434

O-RING

29

700-93-11481

PLUG

30

700-93-11461

VALVE

31

700-93-11471

SPRING

32

07002-13634

O-RING

33

700-93-11340

FLANGE

34

07000-13032

O-RING

35

07001-03032

RING

36

07000-03035

O-RING

37

700-93-12630

NIPPLE

38

700-93-11320

O-RING

39

700-93-11330

RING

40

07002-03634

O-RING

41

700-91-58000

VALVE ASS'Y,MAIN RELIEF

42

700-90-61000

VALVE ASS'Y,SUCTION AND SAFETY

43

700-90-67000

VALVE ASS'Y,SUCTION AND SAFETY

44

700-90-62000

VALVE ASS'Y,SUCTION
