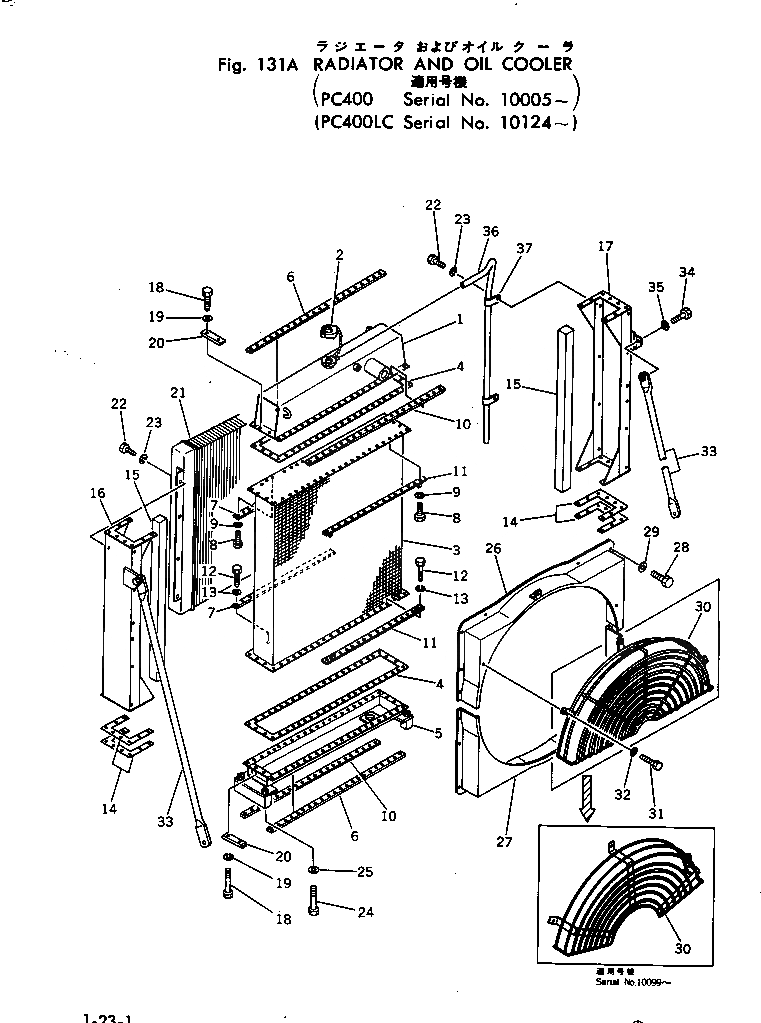

Запчасти Komatsu PC400-1 РАДИАТОР И МАСЛООХЛАДИТЕЛЬ(№-) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

|$0

208-03-00011

RADIATOR ASS'Y

1

208-03-11121

TANK

2

101-03-13141

CAP

3

208-03-11110

CORE

4

208-03-11141

GASKET

5

208-03-11130

TANK

6

208-03-11171

PLATE

7

208-03-11160

PLATE

8

01010-31030

BOLT

9

01602-01030

WASHER,SPRING

10

208-03-11171

PLATE

11

208-03-11150

PLATE

12

01010-31030

BOLT

13

01602-01030

WASHER,SPRING

14

208-03-11210

SHIM, 0.6MM

15

208-03-11220

SEAT

16

208-03-11180

SUPPORT

17

208-03-11190

SUPPORT

18

01010-31235

BOLT

19

01602-01236

WASHER,SPRING

20

208-03-11250

PLATE

21

208-03-11280

OIL COOLER ASS'Y

22

01010-51025

BOLT

23

01602-21030

WASHER,SPRING

24

01011-51610

BOLT

25

01643-31645

WASHER

26

208-03-11410

SHROUD

27

208-03-11420

SHROUD

28

01010-51025

BOLT

29

01643-31032

WASHER

30

208-03-11322

NET

30

208-03-11321

NET

31

01010-51225

BOLT

32

01643-31232

WASHER

33

208-03-11450

STAY

34

01010-51235

BOLT

35

01643-31232

WASHER

36

202-03-11220

TUBE

37

232-03-11210

CLIP
