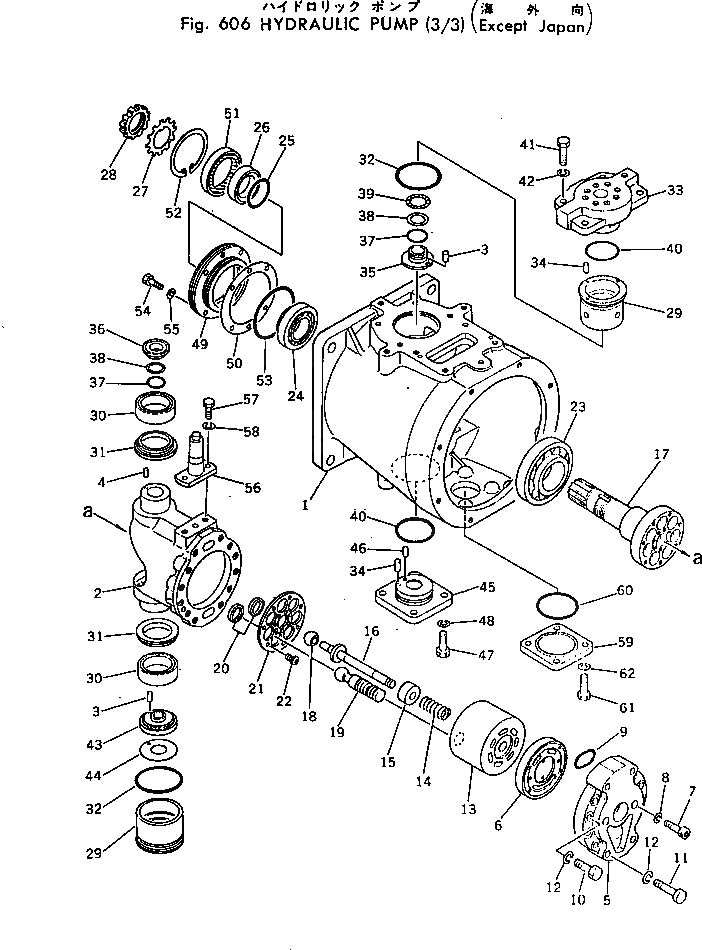

Запчасти Komatsu PC400-1 ГИДР. НАСОС. (/) (КРОМЕ ЯПОН.) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

706-46-20302

HYDRAULIC PUMP ASS'Y

|$1

706-46-20301

HYDRAULIC PUMP ASS'Y

|$2

706-46-20300

HYDRAULIC PUMP ASS'Y

|$3

706-46-20402

HYDRAULIC PUMP ASS'Y

|$4

706-46-20401

HYDRAULIC PUMP ASS'Y

|$5

706-46-20400

HYDRAULIC PUMP ASS'Y

|$6

706-46-41001

PUMP ASS'Y

|$7

706-46-41000

PUMP ASS'Y

1

CASE

2

CASE

2

CASING

3

PIN,DOWEL

4

PIN,DOWEL

5

COVER ASS'Y

6

PLATE

7

BOLT (KIT)

8

WASHER,SPRING (KIT)

9

O-RING (KIT)

10

BOLT

11

BOLT

11

BOLT

12

WASHER,SPRING

13

BLOCK (KIT)

14

SPRING (KIT)

15

RING (KIT)

16

SHAFT (KIT)

17

SHAFT (KIT)

18

BALL (KIT)

19

PISTON SUB ASS'Y (KIT)

20

HOLDER (KIT)

21

RETAINER (KIT)

22

SCREW (KIT)

23

BEARING (KIT)

24

BEARING

25

O-RING (KIT)

26

RING

27

WASHER (KIT)

28

NUT

29

SLEEVE

30

BEARING

30

BEARING

31

SPACER

32

O-RING (KIT)

33

BOSS

34

PIN

35

RING,SEAL

36

RING,SEAL

37

O-RING (KIT)

38

RING,BACK-UP (KIT)

39

WASHER

40

O-RING (KIT)

41

BOLT

42

WASHER,SPRING

43

RING

44

WASHER

44

706-66-40631

WASHER

45

BOSS

45

706-46-40050

BOSS

46

PIN

46

706-66-40281

PIN

47

BOLT

48

WASHER,SPRING

49

BOSS

50

GASKET (KIT)

51

SEAL,OIL (KIT)

52

RING,SNAP

53

O-RING (KIT)

54

BOLT

55

WASHER

56

PIN

57

BOLT

58

WASHER,SPRING

59

COVER

60

O-RING (KIT)

61

BOLT

62

WASHER,SPRING

1K

706-98-00780

SERVICE KIT

7

BOLT

8

WASHER

9

O-RING

13

BLOCK

14

SPRING

15

RING

16

SHAFT

17

SHAFT

18

BALL

19

PISTON SUB ASS'Y

20

HOLDER

21

RETAINER

22

SCREW

23

BEARING

25

O-RING

27

WASHER

32

O-RING

37

O-RING

38

RING

40

O-RING

50

GASKET

51

SEAL

53

O-RING

60

O-RING

60

O-RING

60

GASKET

60

O-RING

60

O-RING

60

O-RING

60

O-RING

60

O-RING
