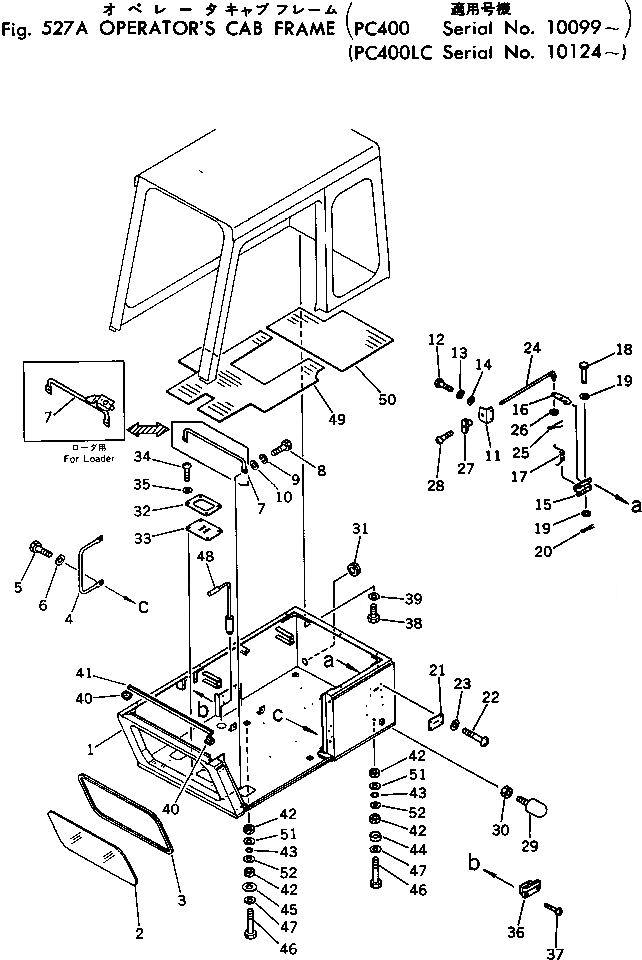

Запчасти Komatsu PC400-1 КАБИНА РАМА(№99-) ОСНОВНАЯ РАМА И КАБИНА

|$0

205-54-00180

FLOOR FRAME ASS'Y,(FOR BACKHOE)

|$1

208-54-00080

FLOOR FRAME ASS'Y,(FOR BACKHOE)

1

205-54-66172

FRAME,(FOR BACKHOE)

1

208-54-13660

FRAME,(FOR LOADER)

2

205-54-66610

GLASS

3

205-54-66620

STRIP,WEATHER

4

205-54-66490

HANDLE

5

01010-51030

BOLT

6

01643-31032

WASHER

7

205-54-63370

REST,FOOT, (FOR BACKHOE)

7

208-72-27110

REST,FOOT, (FOR LOADER)

8

01010-50825

BOLT

9

01602-20825

WASHER,SPRING

10

01641-20812

WASHER

11

205-54-66450

GUIDE

12

01220-40620

SCREW

13

01602-20619

WASHER,SPRING

14

01641-20608

WASHER

|$18

205-54-63400

CATCHER ASS'Y

15

205-54-63410

BRACKET

16

205-54-63420

HOOK

17

205-54-53580

SPRING

18

178-57-11250

PIN

19

01641-21016

WASHER

20

04050-12018

PIN

21

205-54-66460

COVER

22

01220-40630

SCREW

23

01643-30623

WASHER

24

205-54-66440

ROD

25

04050-12012

PIN,COTTER

26

01641-20812

WASHER

27

130-43-63320

KNOB

28

01220-40416

SCREW

29

205-54-67960

STOPPER

30

01580-11008

NUT

31

205-54-65980

GROMMET

32

203-54-31260

PLATE

33

203-54-31270

COVER

34

01220-40616

SCREW

35

01643-30623

WASHER

36

206-54-15540

ASHTRAY

37

01220-40416

SCREW

38

01010-51030

BOLT

39

01643-31032

WASHER

40

205-54-66650

SHEET

41

205-54-68620

SEAL

42

203-54-21110

CUSHION

43

07000-03025

O-RING

44

201-54-21860

COLLAR

45

205-54-51950

PLATE

46

01010-51675

BOLT

47

01643-31645

WASHER

48

207-54-11963

PIN

49

205-54-67820

MAT

50

205-54-67830

MAT

51

205-54-67420

SPACER, 3.2MM

51

205-54-67430

SPACER, 2.3MM

52

205-54-67440

SPACER, 3.2MM

52

205-54-67450

SPACER, 2.3MM
