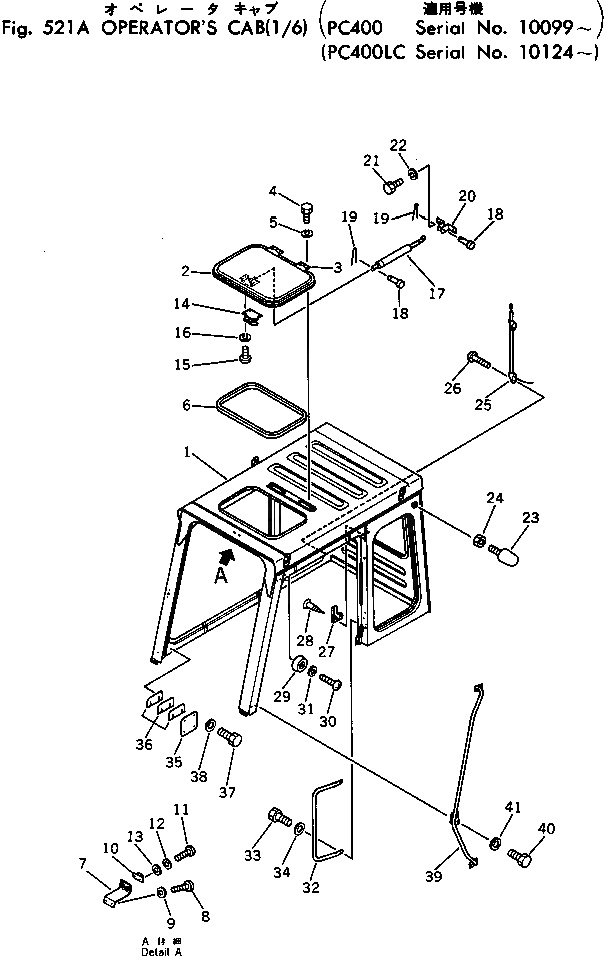

Запчасти Komatsu PC400-1 КАБИНА (/)(№99-) ОСНОВНАЯ РАМА И КАБИНА

|$0

205-54-00161

OPERATOR'S CAB ASS'Y,(FOR BACKHOE)

|$1

205-54-00160

OPERATOR'S CAB ASS'Y,(FOR BACKHOE)

|$2

208-54-00070

OPERATOR'S CAB ASS'Y,(FOR LOADER)

1

205-54-66121

CAB

1

205-54-21110

CAB,(FOR LOADER)

2

205-54-66180

COVER

3

205-54-63490

HINGE (WELDED)

4

01010-50612

BOLT

5

01602-20619

WASHER,SPRING

6

205-54-66380

SEAL

7

205-54-66370

BRACKET

8

01220-40616

SCREW

9

01602-20619

WASHER,SPRING

10

205-54-66270

HOLDER

11

01220-40620

SCREW

12

01602-20619

WASHER,SPRING

13

01641-20608

WASHER

14

205-54-66190

LOCK ASS'Y

15

01220-40616

SCREW

16

01602-20619

WASHER,SPRING

17

205-54-63650

GAS SPRING ASS'Y

18

04205-10825

PIN

19

04050-12012

PIN

20

205-54-63640

BRACKET

21

01010-50820

BOLT

22

01602-20825

WASHER,SPRING

23

205-54-67960

STOPPER

24

01580-11008

NUT

25

205-06-62350

ANTENNA ASS'Y

26

01220-40420

SCREW

26

01225-40425

SCREW

27

205-54-51250

HANGER

28

01381-10420

SCREW

29

205-54-51960

CUSHION

30

01370-00412

SCREW

31

01641-20405

WASHER

32

205-54-66480

HANDLE

33

01010-51030

BOLT

34

01643-31032

WASHER

35

205-54-66510

PLATE

36

205-54-66640

SHIM, 1.0MM

37

01010-51030

BOLT

38

01643-31032

WASHER

39

205-54-66630

HANDLE

40

01010-51030

BOLT

41

01643-31032

WASHER
