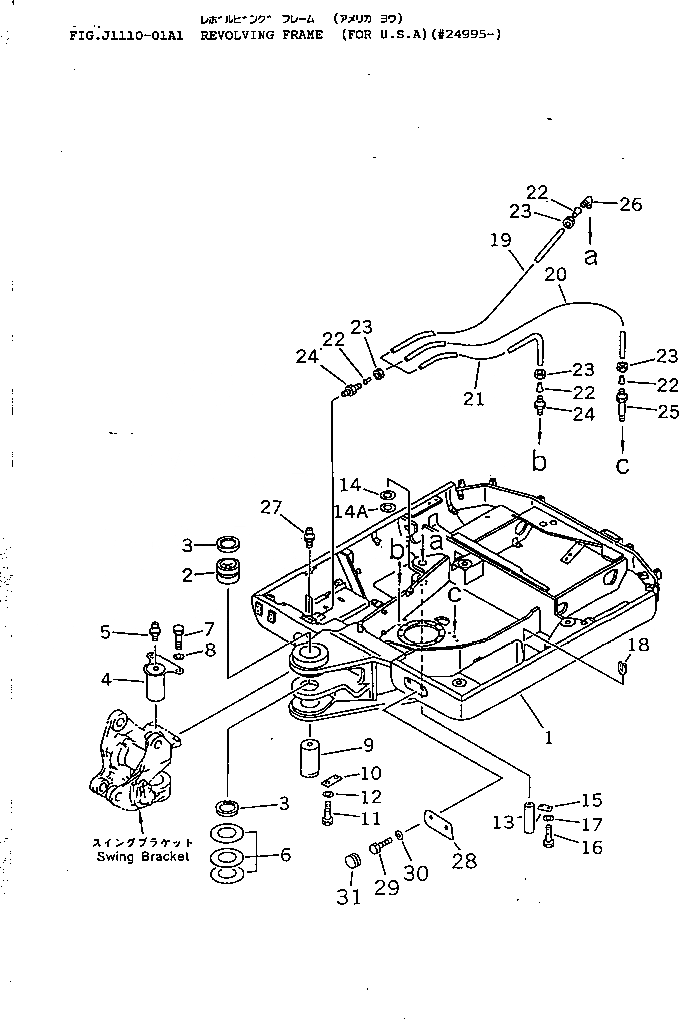

Запчасти Komatsu PC40-7 ОСНОВНАЯ РАМА (ДЛЯ U.S.A)(№99-) ОСНОВНАЯ РАМА И ЕЕ ЧАСТИ

1

20T-46-77211

FRAME,REVOLVING

1

20T-46-77210

FRAME,REVOLVING

2

20T-70-71520

BUSHING

3

07145-00100

SEAL,DUST

4

20T-70-71541

PIN

5

07020-00000

FITTING,GREASE

6

21W-70-11270

SPACER, 1.0MM

6

21W-70-11280

SPACER, 0.5MM

7

01010-51230

BOLT

8

195-71-32220

WASHER

9

20T-70-71551

PIN

10

20T-70-71591

PLATE

11

01010-51230

BOLT

12

01643-31232

WASHER

13

20T-70-71560

PIN

14

201-70-23140

SPACER, 1.0MM

14A

20T-70-71530

SPACER, 0.5MM

15

04082-00212

LOCK

16

01010-51230

BOLT

17

01643-31232

WASHER

18

20T-46-71711

SEAL,BOX

18

20T-46-71710

SEAL,BOX

19

20T-46-71510

TUBE

20

201-46-23110

TUBE

21

20T-54-26760

TUBE

22

07831-00411

SLEEVE

23

07832-00410

NUT

24

20R-46-11160

CONNECTOR

25

20N-46-41231

CONNECTOR

26

20R-46-11150

ELBOW

27

07020-00000

FITTING,GREASE

28

20T-46-77250

PLATE

29

01010-51020

BOLT

30

01643-31032

WASHER

31

09415-02512

CAP
