Запчасти Komatsu PC40-7 ОСНОВНАЯ РАМА ОСНОВНАЯ РАМА И ЕЕ ЧАСТИ

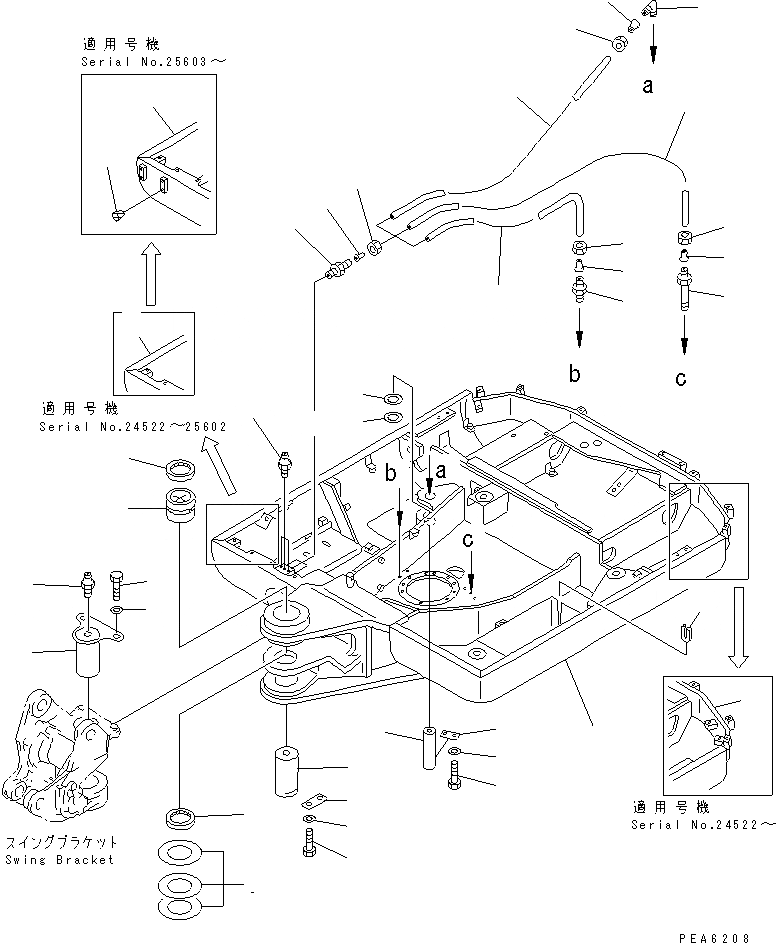

Схема запчастей Komatsu PC40-7 - ОСНОВНАЯ РАМА ОСНОВНАЯ РАМА И ЕЕ ЧАСТИ
1
1
1
1
1A
2
3
3
4
5
6
7
8
9
10
11
12
13
14
14A
15
16
17
18
19
20
21
22
22
22
22
23
23
23
23
24
24
25
26
27

Артикул

Название

Примечание

Количество

1

20T-46-77115

FRAME,REVOLVING

1

20T-46-77114

FRAME,REVOLVING

1

20T-46-77113

FRAME,REVOLVING

1

20T-46-77112

FRAME,REVOLVING

1

20T-46-77111

FRAME,REVOLVING

1

20T-46-77115

FRAME,REVOLVING (MULTI PATTERN)

1

20T-46-77713

FRAME,REVOLVING (MULTI PATTERN)

1

20T-46-77712

FRAME,REVOLVING (MULTI PATTERN)

1

20T-46-77711

FRAME,REVOLVING (MULTI PATTERN)

1

20T-46-77710

FRAME,REVOLVING (MULTI PATTERN)

1

20T-46-77913

FRAME,REVOLVING (FOR RADIO CONTROL)

1

20T-46-77912

FRAME,REVOLVING (FOR RADIO CONTROL)

1

20T-46-77911

FRAME,REVOLVING (FOR RADIO CONTROL)

1

20T-46-77910

FRAME,REVOLVING (FOR RADIO CONTROL)

1

20T-970-9153

FRAME,REVOLVING (FOR BREAKER ARM)

1

20T-970-9152

FRAME,REVOLVING (FOR BREAKER ARM)

1

20T-970-9151

FRAME,REVOLVING (FOR BREAKER ARM)

1

20T-46-77115

FRAME,REVOLVING (FOR SUPER LINER)

1

20T-46-77114

FRAME,REVOLVING (FOR SUPER LINER)

1

20T-46-77113

FRAME,REVOLVING (FOR SUPER LINER)

1

20T-46-77112

FRAME,REVOLVING (FOR SUPER LINER)

1

20T-46-77111

FRAME,REVOLVING (FOR SUPER LINER)

1A

07049-01012

PLUG,(EXCEPT JAPAN)

2

20T-70-71520

BUSHING

3

07145-00100

SEAL,DUST

4

20T-70-71541

PIN

5

07020-00000

FITTING,GREASE

6

21W-70-11270

SPACER, 1.0MM

6

21W-70-11280

SPACER, 0.5MM

7

01010-51230

BOLT

8

195-71-32220

WASHER

9

20T-70-71551

PIN

10

20T-70-71591

PLATE

11

01010-51230

BOLT

12

01643-31232

WASHER

13

20T-70-71560

PIN

14

201-70-23140

SPACER, 1.0MM

14A

20T-70-71530

SPACER, 0.5MM

15

04082-00212

LOCK

16

01010-51230

BOLT

17

01643-31232

WASHER

18

20T-46-71711

SEAL,BOX

18

20T-46-71710

SEAL,BOX

19

20T-46-71510

TUBE

20

201-46-23110

TUBE

21

20T-54-26760

TUBE

22

07831-00411

SLEEVE

23

07832-00410

NUT

24

20R-46-11160

CONNECTOR

25

20N-46-41231

CONNECTOR

26

20R-46-11150

ELBOW

27

07020-00000

FITTING,GREASE

Выбрано товаров: 52
