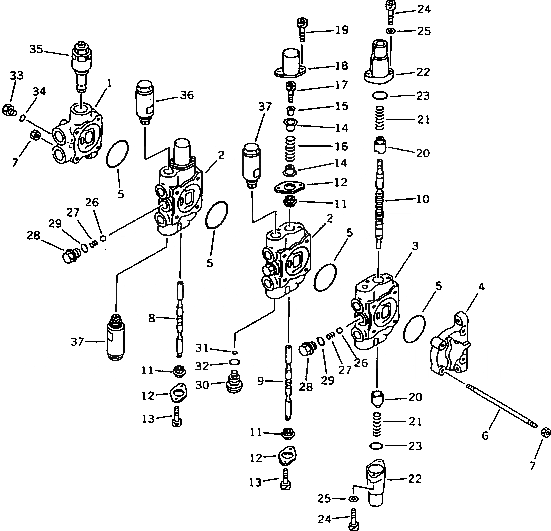

Запчасти Komatsu PC40-7 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН (3-Х СЕКЦИОНН.) (/) (ДЛЯ НАКЛОНЯЕМ. МЕХАНИЧ. ОТВАЛ С ИЗМ. УГЛОМ ПОВОРОТА) ГИДРАВЛИКА
№
Артикул
Название
Примечание
Количество
|$0
709-33-12701
VALVE ASS'Y
1
BLOCK
2
BLOCK
3
BLOCK
4
COVER
5
07000-12055
O-RING
6
709-33-11510
STUD
7
01580-10806
NUT
8
SPOOL,BLADE TILT
9
SPOOL,BLADE LIFT
10
SPOOL,BOOM SWING
11
709-32-11530
SEAL,DUST
12
709-32-11540
PLATE
13
01252-30610
BOLT
14
709-32-11550
RETAINER
15
709-32-11560
COLLAR
16
709-32-11580
SPRING
17
01252-30620
BOLT
18
709-32-11570
COVER
19
01252-30616
BOLT
20
709-32-12840
RETAINER
21
709-32-13510
SPRING
22
709-32-12851
CASE
23
709-32-11760
O-RING
24
01252-30622
BOLT
25
01641-20608
WASHER
26
04260-01270
BALL
27
709-32-11820
SPRING
28
709-32-11810
PLUG
29
07002-11823
O-RING
30
709-32-11830
PLUG
31
709-32-11840
O-RING
32
07002-02034
O-RING
33
07040-11007
PLUG
34
07002-11023
O-RING
35
700-28-56000
RELIEF VALVE ASS'Y,MAIN RELIEF
36
709-30-63702
VALVE ASS'Y,SUCTION AND SAFETY
37
709-30-64101
VALVE ASS'Y,SUCTION AND SAFETY
|$0
709-33-12701
VALVE ASS'Y
1
BLOCK
2
BLOCK
3
BLOCK
4
COVER
5
07000-12055
O-RING
6
709-33-11510
STUD
7
01580-10806
NUT
8
SPOOL,BLADE TILT
9
SPOOL,BLADE LIFT
10
SPOOL,BOOM SWING
11
709-32-11530
SEAL,DUST
12
709-32-11540
PLATE
13
01252-30610
BOLT
14
709-32-11550
RETAINER
15
709-32-11560
COLLAR
16
709-32-11580
SPRING
17
01252-30620
BOLT
18
709-32-11570
COVER
19
01252-30616
BOLT
20
709-32-12840
RETAINER
21
709-32-13510
SPRING
22
709-32-12851
CASE
23
709-32-11760
O-RING
24
01252-30622
BOLT
25
01641-20608
WASHER
26
04260-01270
BALL
27
709-32-11820
SPRING
28
709-32-11810
PLUG
29
07002-11823
O-RING
30
709-32-11830
PLUG
31
709-32-11840
O-RING
32
07002-02034
O-RING
33
07040-11007
PLUG
34
07002-11023
O-RING
35
700-28-56000
RELIEF VALVE ASS'Y,MAIN RELIEF
36
709-30-63702
VALVE ASS'Y,SUCTION AND SAFETY
37
709-30-64101
VALVE ASS'Y,SUCTION AND SAFETY
