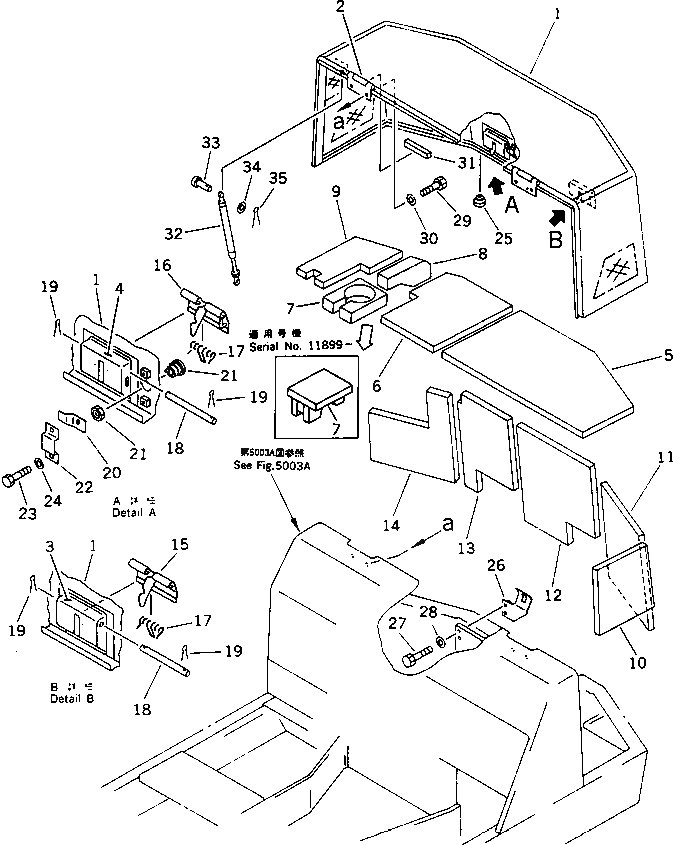

Запчасти Komatsu PC40-6 MACHINERY ОБСТАНОВКА (/) (АНТИВАНДАЛЬН.) ЧАСТИ КОРПУСА

G-1

20T-54-X1101

HOOD GROUP

|1

20T-54-41400

HOOD ASS'Y

|1

20T-54-44100

HOOD ASS'Y

1

HOOD

|1

HOOD

2

20S-54-31160

HINGE (WELDED)

3

20S-54-21440

COVER (WELDED)

4

20S-54-25140

COVER (WELDED)

5

20S-54-31291

SHEET

6

20T-54-41290

SHEET

7

20T-54-41220

SHEET

|7

20T-54-31320

SHEET

8

20T-54-41271

SHEET

|8

20T-54-41270

SHEET

9

20T-54-41280

SHEET

10

20S-54-31232

SHEET

|10

20S-54-31231

SHEET

11

20S-54-31241

SHEET

12

20S-54-31261

SHEET

13

20S-54-36320

SHEET

14

20S-54-31272

SHEET

|14

20S-54-31271

SHEET

15

20S-54-31120

LEVER

16

20S-54-34120

LEVER

17

20T-54-26430

SPRING

18

20S-54-21460

PIN

19

04050-13018

PIN,COTTER

20

20R-54-23240

PLATE

21

20N-54-41830

LOCK ASS'Y

22

20T-54-28130

COVER

23

01010-50812

BOLT

24

01643-30823

WASHER

25

203-54-32260

STOPPER

26

20T-54-41140

LOCK

27

01010-51030

BOLT

28

01643-31032

WASHER

29

01010-31025

BOLT

30

01643-31032

WASHER

31

20T-54-31180

SEAL

32

20U-54-11631

SPRING

|32

20U-54-11630

SPRING

33

04205-10828

PIN

34

01641-20812

WASHER

35

04050-12015

PIN,COTTER
