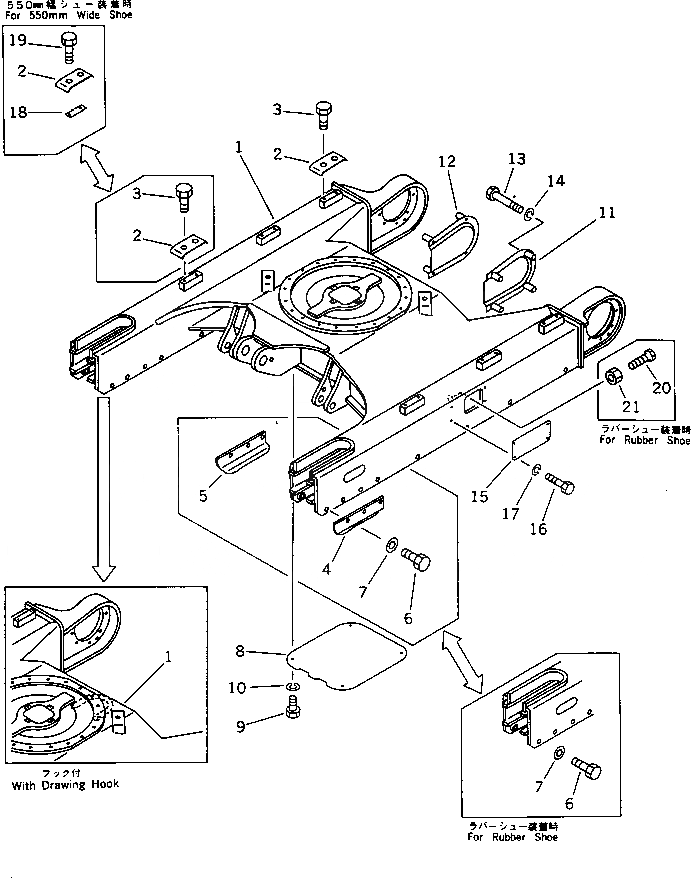

Запчасти Komatsu PC40-6 ГУСЕНИЧНАЯ РАМА ХОДОВАЯ

G-1

20T-30-X1101

FRAME GROUP,(WITH DRAWING HOOK)

|1

20T-30-42111

FRAME,TRACK (WITH DRAWING HOOK)

|1

20T-30-42110

FRAME,TRACK (WITH DRAWING HOOK)

1

20T-30-41111

FRAME,TRACK

|1

20T-30-41110

FRAME,TRACK

2

20S-30-31190

PLATE

3

01010-51225

BOLT

|3

01010-51220

BOLT,(FOR 550MM SHOE)

4

20T-30-41312

GUARD,L.H. OUTSIDE AND R.H. INSIDE

|4

20T-30-41311

GUARD,L.H. OUTSIDE AND R.H. INSIDE

5

20T-30-41322

GUARD,R.H. OUTSIDE AND L.H. INSIDE

|5

20T-30-41321

GUARD,R.H. OUTSIDE AND L.H. INSIDE

6

01010-51640

BOLT

|6

01010-51630

BOLT,(FOR RUBBER SHOE)

7

01643-31645

WASHER

8

20S-30-21120

COVER

9

01010-51016

BOLT

10

01602-21030

WASHER,SPRING

11

20S-30-31330

COVER,L.H.

|11

20S-30-31230

COVER,L.H.

12

20S-30-31340

COVER,R.H.

|12

20S-30-31240

COVER,R.H.

13

01010-51095

BOLT

|13

01010-51085

BOLT

14

01602-21030

WASHER,SPRING

15

20S-30-31170

COVER

16

01010-51020

BOLT

17

01602-21030

WASHER,SPRING

18

20T-30-32260

PLATE,(FOR 550MM SHOE)

19

01010-51235

BOLT,(FOR 550MM SHOE)

20

20S-30-31180

BOLT,(FOR RUBBER SHOE)

21

01580-13326

NUT,(FOR RUBBER SHOE)
